Plastic Toy Bike Making Machine
- Shanghai
- T/T Credit Card
You May Like
-
Agricultural Film Blowing Machine/3 Layer Film Blowing Machine/plastic Blowing Machine
-
5 Gallon Water Dispenser Blow Moulding Machine TDB-250A Forklift Plastic Pallet
-
Plastic Mold Injection Products/pet Bottle Blow Molding Machines
-
Extrusion Blow Molding Machine /50ml-2L Plastic Bottles
-
SJ 65\33 Series Single Screw Extruder
-
Parallel Twin Screw Plastic Pelletizing /extruder Machine
Product Details
| Place of Origin | Jiangsu, China | Certification | CE& ISO9001& Bundersrepublik deutschland patents | |
| Dimension(L*W*H) | 5*2.4*3.8m | Voltage | 380V | |
| Condition | New |
Product Description
plastic toy bike making machine

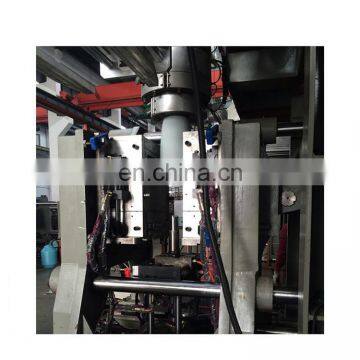

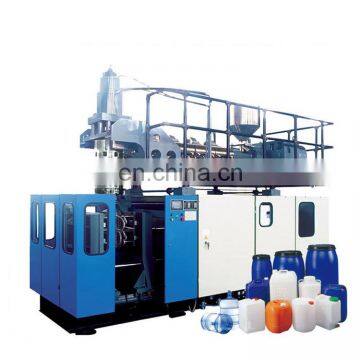

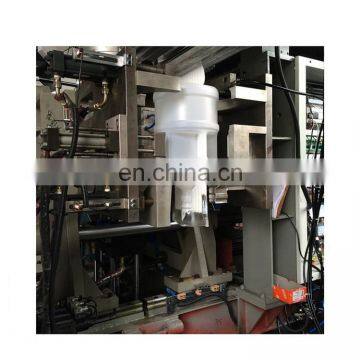

Product name: Fully automatic extrusion blow molding machine(Accumulator) TDB-50A
polypropylene mannequin machine
Extrusion blow molding machine technical specification:
|
Model |
|
TDB-50A |
|
Station |
|
Single station |
|
Max. Product Volume |
(L) |
50L |
|
Dry cycle |
(pc/h) |
450 |
|
Screw Diameter |
(mm) |
90 |
|
Screw L/D ratio |
(L/D) |
25,28 |
|
Screw drive power |
(KW) |
37,45 |
|
Screw heating capacity |
(KW) |
7.3~9.1 |
|
No. of heating zone |
(ZONE) |
4,5 |
|
Max.Output of HDPE |
(Kg/hr) |
130~160 |
|
Oil pump drive power |
(KW) |
30 |
|
Clamping force |
(KN) |
260 |
|
Mold stroke (Platen distance) |
(mm) |
450~1000 |
|
Max. Size of Mold(W*H) |
(mm) |
700*950 |
|
Capacity of the diehead |
(L) |
6.6 |
|
Max. Die diameter |
(mm) |
350 |
|
Die heat capacity |
(KW) |
7.52 |
|
No. of heating zone |
(ZONE) |
4 |
|
Blowing pressure |
(Mpa) |
0.8 |
|
Air volume |
(M3/MIN) |
1.0 |
|
Cooling water pressure |
(Mpa) |
0.3 |
|
Water consumption |
(L/MIN) |
85 |
|
Size of machine ( L*W*H) |
(m) |
5*2.4*3.8 |
|
Weight of machine |
(TON) |
14 |
