melamine tableware moulding machine

FOB Price

USD $30,000 - $30,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Certification	CE& ISO9001& Bundersrepublik deutschland patents
Dimension(LWH)	3.432.32.65m	Voltage	380V/3PH/50HZ
Condition	New

Product name: melamine tableware moulding machine

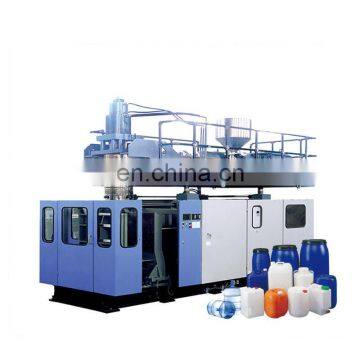

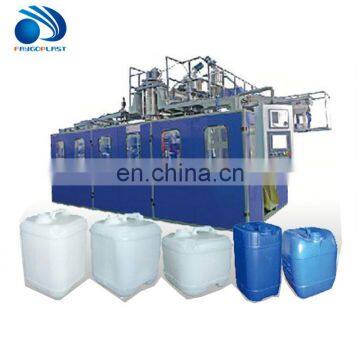

Double station fully automatic extrusion blow molding machine HTII-5L

Extrusion blow molding machine technical specification:

Model		HTII-5L
Max. Product Volume	(L)	5L
Dry cycle	(pc/h)	700*2
Screw Diameter	(mm)	70
Screw L/D ratio	(L/D)	25
Screw drive power	(KW)	22
Screw heating capacity	(KW)	6.2~8.2
No. of heating zone	(ZONE)	3
Max. Output of HDPE	(Kg/hr)	70
Oil pump drive power	(KW)	7.5
Clamping force	(KN)	60
Platen distance	(mm)	148~508
Mold moving stroke	(mm)	400
Max. Size of Mold(W*H)	(mm)	370*390
Max. Die diameter	(mm)	145
Die heat capacity	(KW)	2.5
No. of heating zone	(ZONE)	3
Central distance of Double head	(mm)	160,180
Blowing pressure	(Mpa)	0.6
Air volume	(M3/MIN)	0.4
Cooling water pressure	(Mpa)	0.2~0.3
Water consumption	(L/MIN)	60
Size of machine ( LWH)	(m)	3.432.32.65
Weight of machine	(TON)	5.5
