High Speed Ppr Muti- Layers Pipe Fiber Glass Making Machine/production Line for Sale
US$ 24,000 - 25,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | FAYGO | Place of Origin | Jiangsu, China | |
| Certification | CE, ISO9001 | |||
| Weight | based on models, 25-40 ton | Dimension(L*W*H) | based on models | |
| Voltage | 380V 50HZ | Application | Pipe | |
| Condition | New | |||
| Screw Design | Single-screw |
Product Description
Product Description

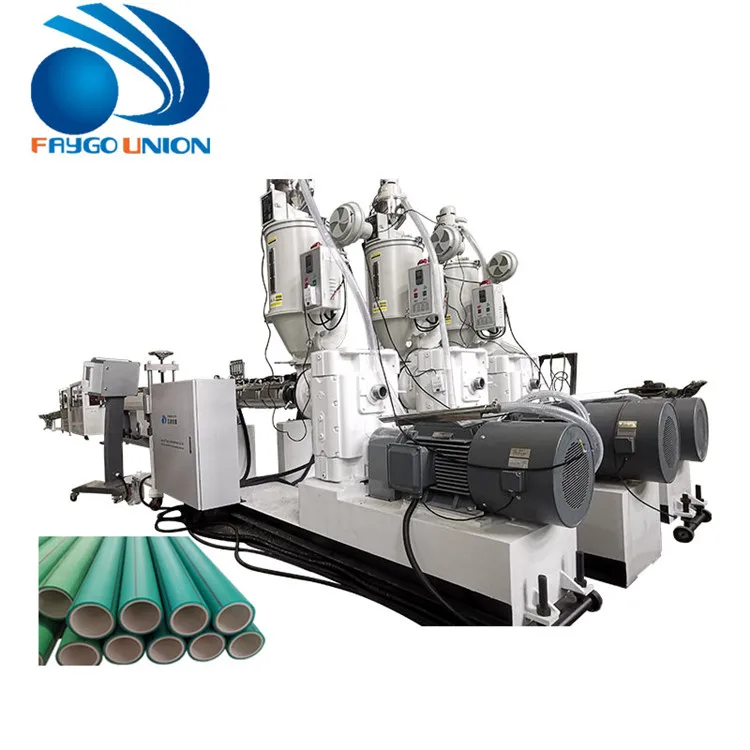

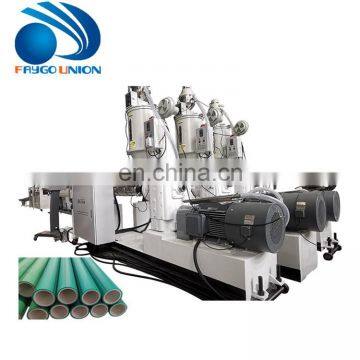

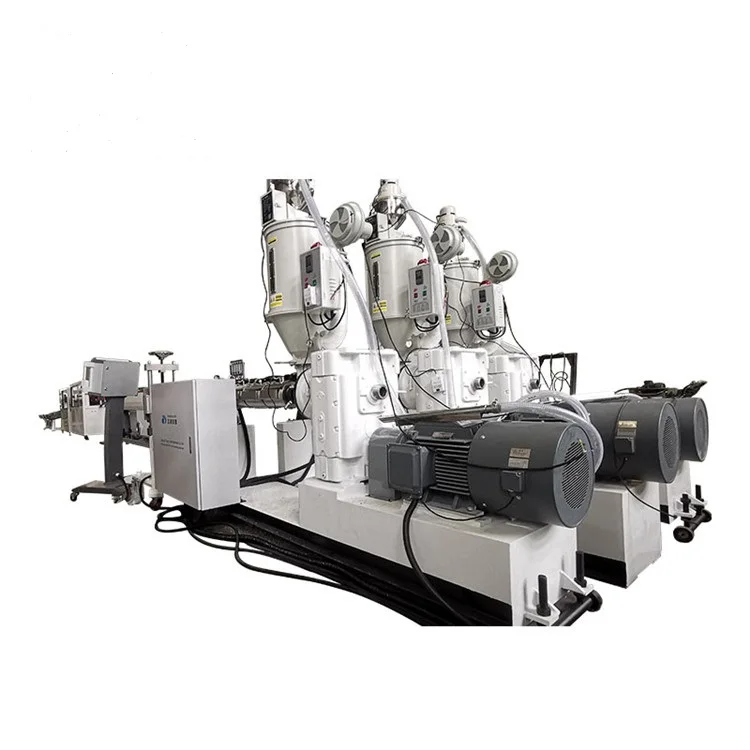

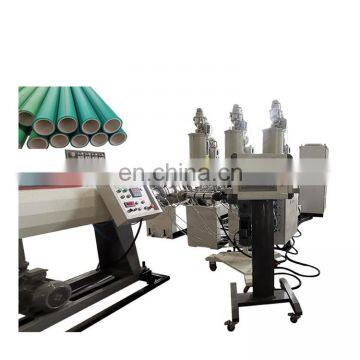

Muti-layer pipe making machine
Multi layers PPR HDPE PE pipe making line,we can supply 2 layer, 3 layer, 4 layer pipe co-extrusion line.

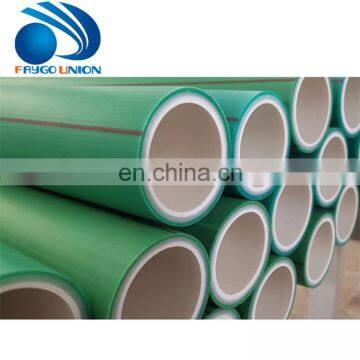

Zhangjiagang city Faygo Machinery 20-63mm three layer PP-R +fiberglass silicon core pipe production line specially designed for PPR 4 layer water pipes, gas pipe, sewages pipes and electric cable protection pipes making.
Pipe Diameter range: 20mm,25mm,32mm,40mm, 50mm, 63mm,, Single Pipe Outlets.
Zhangjiagang city Faygo Machinery 20-63mm three layer PP-R +fiberglass silicon core pipe production line specially designed for PPR 4 layer water pipes, gas pipe, sewages pipes and electric cable protection pipes making.
Pipe Diameter range: 20mm,25mm,32mm,40mm, 50mm, 63mm,, Single Pipe Outlets.
Size Information
1 | SJ65 Single screw extruder | 2 set |
2 | SJ25 Single screw extruder | 1set |
3 | mould | 1set |
4 | Vacumm Calibration Tank | 1set |
5 | Two caterpillars Hauling Machine | 1set |
6 | Pipe cutting machine | 1set |
7 | Stacker | 1set |
Detail image
Screw and Barrel: Design for PPR material, Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.
Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting
Distance equal to 800mm
Distance equal to 800mm

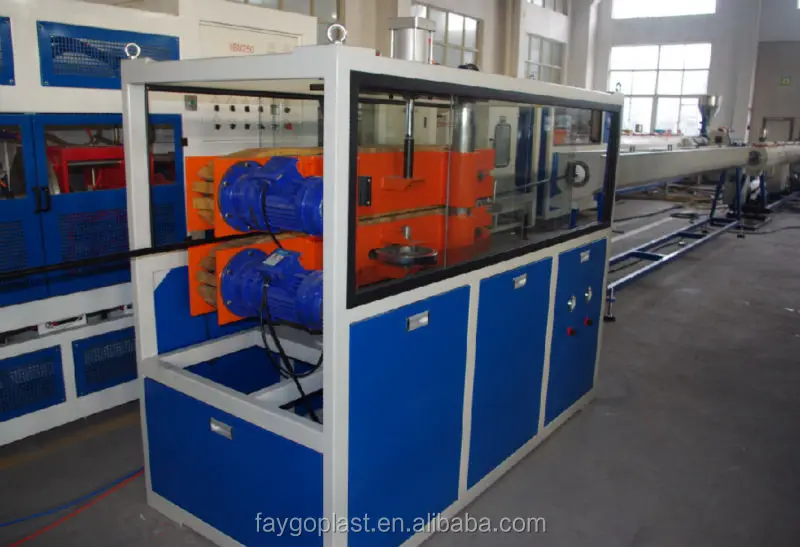

Haul-off Bracket Length 1200mm, Adopt Pneumatic gas cylinder,
Adopt 1.5kw*2sets ABB Inverter, Belt 80mm*2500mm.
Adopt 1.5kw*2sets ABB Inverter, Belt 80mm*2500mm.
RELATED QUESTIONSQ:
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in t
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in t
Our Advantages
1. Reduce the production cost. Ususally middle pipe layer will use recycled material, it will reduce your raw material cost, and will not affect the pipe quality.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
Packing&Shipping
Packing: Film covered or wooden box package(According to customer needs )
Delivery: 30-45 working days
Port: Shanghai port
Delivery: 30-45 working days
Port: Shanghai port
After Sales Service
Our after-sale service has got wide apprecation from home and abroad. Our motto is making good machine, being good man.
Company Introduction
FAYGO UNION GROUP has 3 branch factories.
One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world.
Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line.
Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGORECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland,Italy, Turkey Russia etc.from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia,Iran, Syria, India,Thailand, Indonesia etc. from Asia, and many customers from Africa.Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from international airport.
Welcome to visit our factory, and hope to cooperate with you in the near future!
