Pp, Ppr Plastic Making Machine20- 63mm Multi-player for Sale
US$ 37,000 - 38,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
China High Speed Ppr Pipe Fiber Glass Making Machine for Sale
-
High Speed Ppr Muti- Layers Pipe Fiber Glass Making Machine/production Line for Sale
-
China High Speed Ppr Plastic Pipe Extruders/ Making Machine
-
China Energy-saving PVC Pipe Making Machine /production for Sale
-
20-63mm Hdpe Pipe Lines
-
20-110mm Hdpe Pipe Machine
Product Details
| Brand Name | FAYGO | Place of Origin | Jiangsu, China | |
| Certification | CE, ISO9001 | |||
| Weight | based on models, 25-40 ton | Dimension(L*W*H) | based on models | |
| Voltage | 380V 50HZ | Application | Pipe | |
| Condition | New | |||
| Screw Design | Single-screw |
Product Description
Product Description
pp ppr plastic pipe making machine 20-63mm multi-layer extrusion production line for water supply
Product Application
PP-R Pipe machine is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Size Information
Extruder model | SJSZ65/30 | SJ65/30 | SJ75/30 | More models based on your requirements |
Pipe diameter range | 16-63 | 20-110 | 50-160 | |
screw diameter (mm) | 65 | 65 | 75 | |
Motor power (kw) | 37 | 37 | 55 | |
Drawing speed(m/min) | 0-10 | 0-10 | 0-8 | |
Total length (m) | 25 | 25 | 28 | |
Output (kg/h) | 40-80 | 60-120 | 80-160 |
RELATED QUESTIONS
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q:Installation and stuff training available from you?
A:Yes, our engineers will guide machine installation and train your workers.
Q:How can we visit your company and machines?
A:We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
Q:How long is the warranty?
A:1 year
Q:How long is the delivery time?
A:Under normal conditions, products are delivered within 45 working days.
Q:How can I know the stauts of my order?
A:We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
Detail image

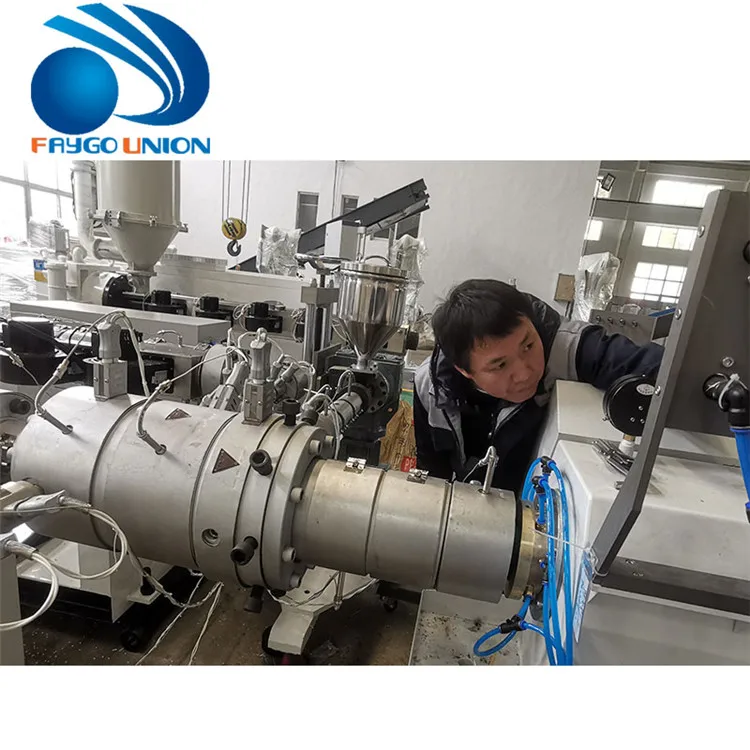

Main machine
Single screw extruder
Drive motor: Siemens Beide motor
Inverter: ABB
Temperature control: Omron
Contactor: Siemens
For 20-63mm three layer pipe machine, if you have specific requirement for each layer percentage, we suggest you use three
extruder co-extrusion, otherwise 2 sets extruder coextrusion is enough.
Drive motor: Siemens Beide motor
Inverter: ABB
Temperature control: Omron
Contactor: Siemens
For 20-63mm three layer pipe machine, if you have specific requirement for each layer percentage, we suggest you use three
extruder co-extrusion, otherwise 2 sets extruder coextrusion is enough.
Material: 40Cr
Calibrator: Stainless steel
It will be much better if you can tell us the specific pipe size(pipe diameter & pipe thickness or pressure) you want to produce,
then we can suggest you the most suitable machine based on your requirements.
Calibrator: Stainless steel
It will be much better if you can tell us the specific pipe size(pipe diameter & pipe thickness or pressure) you want to produce,
then we can suggest you the most suitable machine based on your requirements.

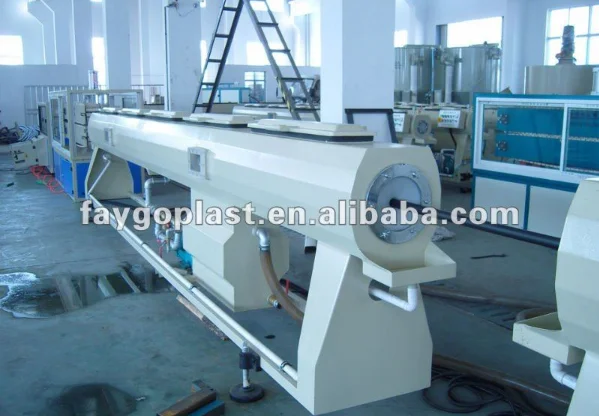

Material: Stainless steel
Tank Movement : Forth and back by motor driven Up and down by manual adjust
Tank Movement : Forth and back by motor driven Up and down by manual adjust
Material: Stainless steel
Length: 6m or customized
Length: 6m or customized
Haul-off Speed Adjustive: ABB inverter
Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder
Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder
Our Advantages
1. Reduce the production cost. Ususally middle pipe layer will use recycled material, it will reduce your raw material cost, and will not affect the pipe quality.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe
toughness.
Packing&Shipping
Packing: Film covered or wooden box package(According to customer needs )
Delivery: 30-45 working days
Port: Shanghai port
Delivery: 30-45 working days
Port: Shanghai port
After Sales Service
Our after-sale service has got wide apprecation from home and abroad. Our motto is making good machine, being good man.
Company Introduction
FAYGO UNION GROUP has 3 branch factories.
One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world.
Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line.
Third factory is FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGORECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland,Italy, Turkey Russia etc.from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia,Iran, Syria, India,Thailand, Indonesia etc. from Asia, and many customers from Africa.Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from international airport.
Welcome to visit our factory, and hope to cooperate with you in the near future!
