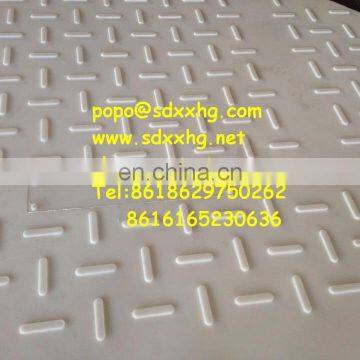

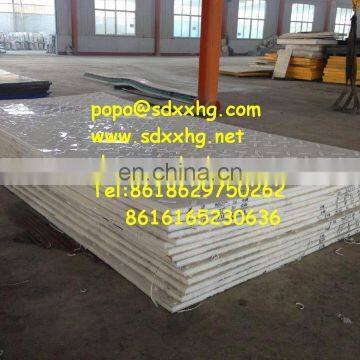

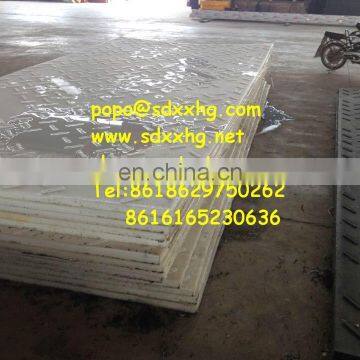

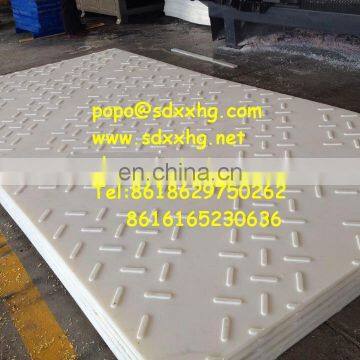

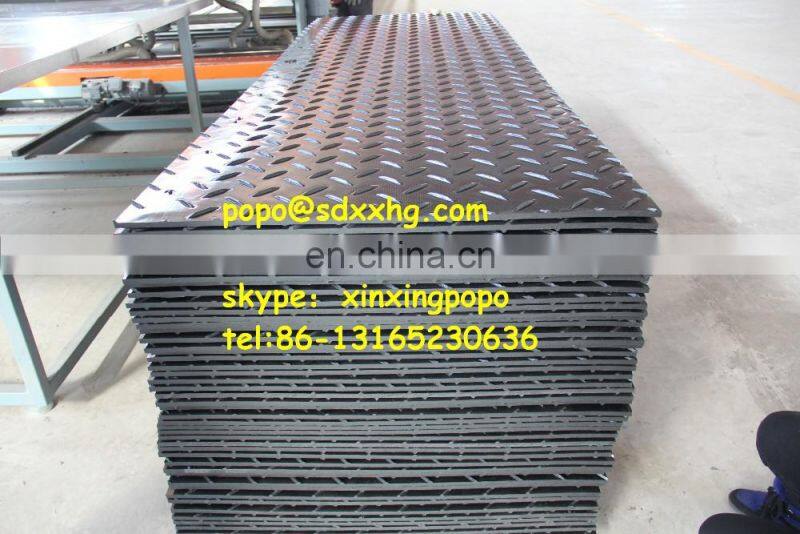

Portable and Reusable Temporary Ground Mats, HDPE Road Mat ,UHMW-PE Oil Drilling Rig Mats

Portable and reusable Temporary Ground Mats, HDPE Road Mat ,UHMW-PE Oil Drilling Rig Mats

- Size available

1220*2440mm(4’*8’)

910*2440mm(3’*8’)

610*2440mm(2’*8’)

910*1830mm(3’*6’)

610*1830mm(2’*6’)

610*1220mm(2’*4’)

1200*2400mm

1100*2440mm

1100*2900mm

1000*2440mm

1000*2900mm

- Thickness: 12.7mm,15mm, 18mm, 20mm

- Cleat height: 5mm

- Color: Black/Dark Green (other colors available)

Pattern both sides OR smooth on one side.

Various sizes and thickness can be offered to suit your need.

Application of  Plastic Ground Protection Mats

Rig mats, road mats, access roads, leases, pipeline crossings, creek crossings, staging areas, camps, tank farms, under drilling/completion rigs, environmentally sensitive applications, sensitive land owners,  pipeline construction, muskeg, remote helicopter pads, emergency egress, accessing spills for  environmental cleanup, transmission line construction, wind farm construction, bridge decks, blasting  mats

Ground protection mat  Weight Loading

Varies, depending on sub-surface, up to 80 tons capacity

Ground Surface

XINXING ground protection sheet  both protect your expensive turf and provide access and traction over mud , sand ,snow and other difficult surfaces . XINXING ground protection sheet can be used to create temporary roadways for all types of vehicles and equipment or large work pads for drilling , administrative compounds ,bone yards , temporary flooring , oil drilling rig mats and other industrial application .

Ground protection mat  Benefits:

1.Creat an instant roadway over virtually any type of terrain mud, sand, marshy, uneven or soft terrain

2. Protects valuable turf during landscaping projects

3. Superior alternative to plywood and fiberglass  will not warp, rot, crack or delaminate

4.Save time & labor getting vehicles and equipment traversed over difficult terrain

5.Avoid potential injuries to workers incurred while dislodging vehicles & equipment from mud

6.Protects vehicles & equipment from excessive wear and damage due to operating on unstable ground conditions

7.Easily handled and laid by two men no need for expensive crane wagons

8.Lay as two parallel tracks or a single roadway

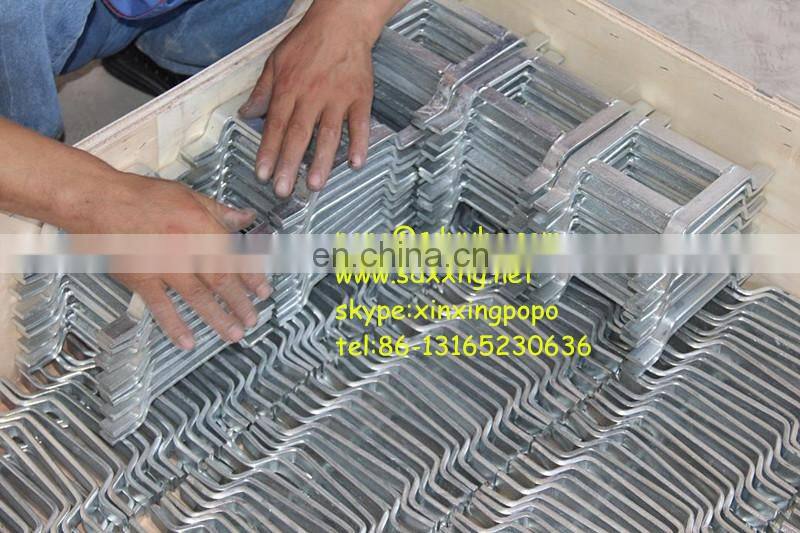

9.Link together with metal connectors.

10. Easily cleaned due to less aggressive lug pattern

11.Extremely durable to withstand vehicle weights up to 80 tons

12.Tested in extremes of hot and cold climates

13. Can be used hundreds of times

14.Guaranteed for 7 years

15.Made in China ship worldwide

 Advantage of HDPE ground protection mat:

• Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
• Anti-Weather & Anti-Aging
• Self-lubricating, Very low coefficient of friction
• Excellent chemical & corrosion resistant
• superior impact resistant, Noise- absorption, Vibration-absorption
• Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800
• High tensile Strength
• Non-Toxic and smell
• UV resistance
• Flame Retardant; Relatively low in water absorption
• Excellent electrical properties
• Good performance in resisting environment stress crack, 200 times of ordinary PE
• No adhesion
• Light weight and easier to handle and fix
• Cost efficient; Resulting in low energy consumption
• Does not rot, split or crack; 100% recyclable
• Great liner material for industrial material handling applications
• Easy Reprocessed

Ground protection mat Connection System

Each XINXING ground protection sheet has 4 connection holes, one at each corner, and 4 additional connect holes (if customer need , the addtional holes will be prepared ). These allow panels to be connected in either direction and to be rotated at 90 degree angles as required .

 The properties of HDPE ground protection mat:

Temporary Roadways and Access Mats

Create temporary roadways to access construction sites with Abosn HDPE composite matting. Each panel weighs just 1050 lbs (roughly half the weight of comparable wooden mat systems) and can sustain compressed loads up to 600 psi. The proprietary overlapping flange and cam lock connection system prohibits differential movement between panels, ensuring a strong stable surface for over-sized construction equipment to traverse any ground conditions. Abosn’s low-profile traction pattern provides omnidirectional slip protection for tires, tracked vehicles, and work boots.

Working Platforms for Construction Sites

Create safe and sturdy, fully connected working platforms for construction sites in any climate or soil conditions with Abosn heavy-duty construction mats. Protect expensive equipment, vehicles, office cabins and trailers from sinking into soft or muddy ground while providing personnel with a safe, dry footing. The overlapping flanges help to prevent mud from seeping through between panels, ease installation, and maintain stability from mat to mat. The large all-metal cam locks ensure a secure connection that prohibits movement and will not wear like mats with molded receivers.

Key Benefits

Why Choose Us

lMore than 15 years' professional manufacturing experience with own factory.

lVirgin 100% material produced, high quality with good surface and color make ensured

lGB/T 19001-2008 ; ISO 9001:2008 certification.

lCompetitive price, In stock, Fast delivery, and Excellent service.

lOEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.

XINXING Pressing machine

XINXING Extrusion machine

XINXING Certification
