Home > Products > Ground protection mats > Mobile Temporary Road Access Ground Plate for Handicapped

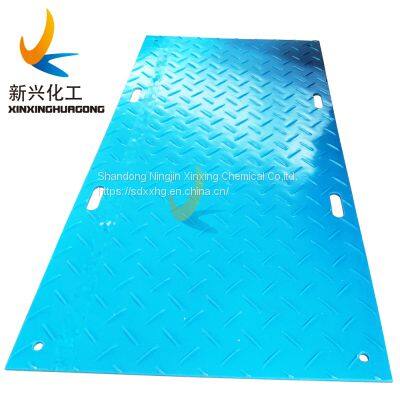

Mobile Temporary Road Access Ground Plate for Handicapped
- T/T Credit Card
You May Like
-
Heavy Duty Plastic Temporary Road Way Ground Protection Mats
-
Yellow Blue Black Fire Retardant Uhmwpe Temporary Trackway Mats HDPE Protect Road Cover Road Mat
-
Plastic Anti-slip 1220X2440mm, 4x8 ft HDPE Ground Protection Mats
-
4\'x8\' Fire Retardant Temporary Hdpe Road Mat/ground Protection Mat
-
Wholesale Price Composite Rig Mats/ Ground Plastic Protection Mat for Driveways/parking Areas
-
XINXING Fire Retardant Ground Mat HDPE Plastic Temporary Construction Track Road Mats
Product Details
| Brand Name | XINXING | Model Number | XMat-8010 | |
| Material | PE | Size | 1220x2440mm | |
| Thickness | 12mm |
Product Description
Products introduction
HDPE Ground Mat is durable,lightweight,and extremely strong.The mats are engineered to provide ground protection
and access over soft surfaces and will provide a firm support base and traction for numerous activities.
HDPE Ground mats are used in a broad variety of applications, such as construction sites,golf courses, utilities,
landscaping,tree care, cemeteries, drilling etc.And they are great to save heavy vehicles from getting struck in mud.
Data sheet of hdpe ground mat
| Physical Properties | ASTM | Unit | Value |
| Density | D1505 | g/cm3 | 0.96 |
| Melt Index | D1238 | g/10min | 0.5 |
| Brittleness Temperature | D746 | oC< | -40 |
| Shore D Hardness | D2240 | 65 |
Specification
| 1220*2440mm(4'*8') | 910*2440mm(3'*8') | 610*2440mm(2'*8') |
| 910*1830mm(3'*6') | 610*1830mm(2'*6') | 610*1220mm(2'*4') |
| 1500*3000mm | 2000*3000mm | 2000*40000mm |
Material : High density polyethylene
Thickness: 12.7mm, 15mm, 18mm, 20mm (Could be 10mm-30mm)
Cleat height: 7mm/3mm
Color: Black/Dark Green (other colors available )
Pattern both sides
Various sizes and thickness can be offered to suit your need
Surface finish type:
So the surface can be different choice: AA,BB, AB or customized as the demand
Connection way:
Application:
Product processing:
UHMWPE Ground Protection Mat
UHMWPE ground protection mat usually be used to build temporary road mat in heavy duty working site.
UHMWPE ground protection mat is made from ultra-high molecular weight polyethylene by hot molding process
so that it is suitable for the heaviest of loads up to 200tons and often be used to create track ways and compound
working areas for a wide range of industries including construction, oil drilling industry, power transmission,
renewable energy sites and infrastructure works.
Data sheet of uhmwpe ground mat
| Properties | Test Method | Unit | Value |
| Density | ISO1183 | g/cm3 | 0.96 |
| Compression Strength | ISO604 | Mpa | 35 |
| Tensile Strength | ISO527 | Mpa | 26 |
| Impact Strength | ISO179 | Kj/m2 | 90-130 |
| Elongation at Break | ISO527 | % | >100 |
| Shore D Hardness | ISO868 | D | 60-76 |
| Friction Coefficient | ASTM D-1894 | Unitless | <0.2 |
| Water Absorption | ASTM D-570 | % | 0.007 |
Standard sizes:
4500*2000*38mm (plus two sides 5mm traffic lugs) total 48mm
3000*2500*38mm (plus one side 7mm traffic lugs, one side 2mm pedestrian) total 47mm.
The thickness can be various according customer required loading weight.
Other measurements can be done according to client's requirements.
Shandong Ningjin Xinxing Chemical Co.,ltd produce all kinds of road mats as per customer demands
