Precision Metal Brush 1.5-3V High Speed DC Miniature Motors K10
US$ 0.5 - 0.7
/ Piece
5000 Pieces(Min. Order)
- Shenzhen/Hongkong
- T/T Credit Card
You May Like
-
32A385 Spur Gear Motors for Soap Dispenser Vending Machine Spur Gear Motors
-
High Quality 12mm Small Gear Reducer Motor Gear Motor
-
MBI-95F3540 Geared DC Motor 20-30 Kg cm Torque 6-12 V, 10-50rpm DC Gear Motor
-
36mm DC Low Speed High Torque Planetary Gear Motor
-
5rpm Motor Motor Geared 24volt Flat Gearbox Small 24v dc Motor
-
32A385 24V DC Geared Motor Price Vending Machine Gear Reduction Motors
Product Details
| Brand Name | MBI | Place of Origin | Hunan, China | |
| Model Number | FF-K10VA-05240 | Type | Micro Motor | |
| Certification | CCC, CE, ROHS, UL, VDE | Torque | 1.0g.cm | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Explosion-proof | |
| Continuous Current(A) | 0.06A | Speed(RPM) | 11500rpm | |
| Commutation | Brush |
Product Description

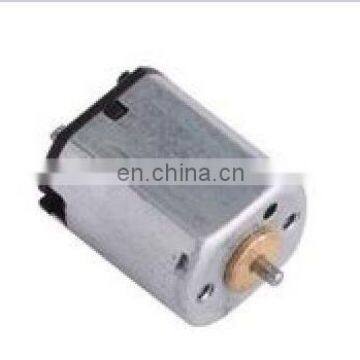

Precision metal brush diameter 8mm 1.5-3V high speed DC Miniature motors K10
|
Product Description
Technical datas:
FF-K10VA-05240
Voltage range: 1-4V
Working voltage: 3.0V
No load:
Speed: 20500r/min
Current: 0.06A
On load:
Speed: 11500 r/min
Current: 0.165A
Rated load: 1.0g. Cm
At Stall:
Torque: 1.5g. Cm
Current: 0.25A
FF-K10VA-07160
Voltage range: 3-5V
Working voltage: 4.8V
No load:
Speed: 42995r/min
Current: 0.007A
On load:
Speed: 34777 r/min
Current: 0.32A
Rated load: 1.4g. Cm
At Stall:
Torque: 5.1g. Cm
Current: 1.4A

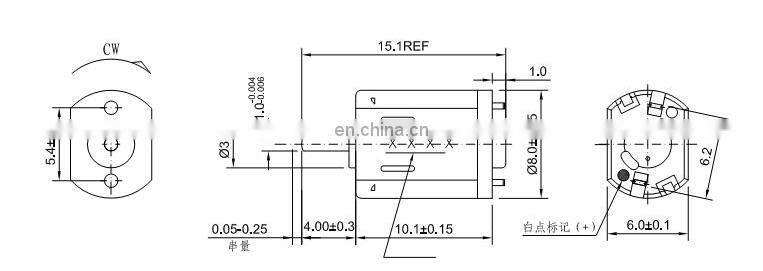

Outline drawing:
Application:
Personal care products, Beauty products, Camera, Precision toys, Instruments etc
