12mm 16000rpm 3V NdFeB Permanent Magnet dc Motor N10
US$ 0.5 - 0.7
/ Piece
5000 Pieces(Min. Order)
- Shenzhen/Hongkong
- T/T Credit Card
You May Like
-
24v Diameter 42-47mm 500-850w dc Motor for Blender 220volt for Option
-
230V DC 700W Hand Blender HVDC Motor RS-7512
-
12V Side Mirror Actuator Electric Motor DC 12V FC-140
-
6V 9V 12V 2400rpm DC Motors EG-530AD
-
High Torque 12v dc Motor Low Watt EG-530
-
Shenzhen 12V DC Mini Motors for Electric Car FC-280PT-20150 With PTC
Product Details
| Brand Name | MBI | Place of Origin | Hunan, China | |
| Model Number | FF-N10VA-10140 | Type | Micro Motor | |
| Certification | CCC, CE, ROHS, UL, VDE | Torque | 2.5g.cm | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Explosion-proof | |
| Continuous Current(A) | 0.18A | Speed(RPM) | 13000rpm | |
| Commutation | Brush |
Product Description
| 12mm 16000rpm 3V NdFeB permanent magnet dc motor N10 |
Product Description
Technical datas:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
| FF-N10VA | 10140 | 2.0-4.0 | 3 | 16000 | 0.046 | 13000 | 0.18 | 0.25 | 2.5 | 0.33 | 1.18 | 12 | 0.8 |

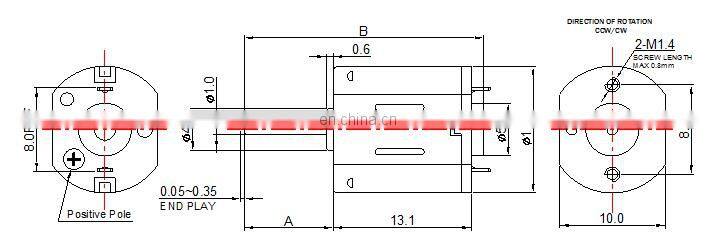

Outline drawing:
Application:
Epilator, Note book pc, Optical disk drive,Personal care products, Beauty products, Camera, Precision toys, Instruments,MD player, CD player etc
