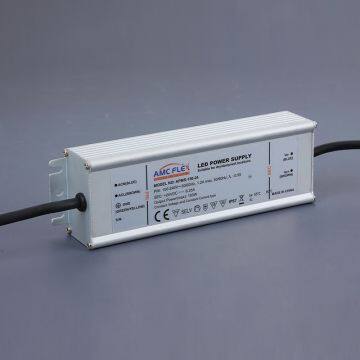

150W 1400mA 54-108VDC LED Strip Constant Current Driver
- shanghai
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 20 days
You May Like
-
150W 2100mA 36-72VDC LED Tape Waterproof Constant Current Driver
-
150W 2800mA 27-54VDC Flexible Strips SELV Constant Current Driver
-
150W 3500mA 21-42VDC LED Lighting Power Supply
-
150W 4200mA 18-36VDC Neon Flex LED Current Driver Waterproof
-
150W 5000mA 15-30VDC LED Lighting Current Driver
-
200W 1050mA 96-192VDC Constant Current LED Driver
Product Details
| Brand Name | AMCFLEX | Place of Origin | China | |
| Model Number | APMS-150C-1400 | Output Power | 101 - 200W | |
| Output Type | Single | Output Current | 1400mA | |
| Output Frequency | 50/60hz | Output Voltage | 54-108VDC | |
| Input Voltage | 220V |
Product Description
Product Features:
Wide AC input (up to 305VAC)
Protections: Short circuit / Over current / Over voltage / Over temperature
Built-in active PFC function
High efficiency up to 94%
IP67 / IP65 design for indoor or outdoor installations
Output current fixed
Cooling by free air convection
Suitable for dry, damp, and wet location
Suitable for LED lighting and street lighting applications
Meet 4kV +6KV surge immunity level (IEC61000-4-5)
Class 2 power unit / Pass LPS
Technical Specs:
1. Input Voltage: 200-277VAC, Typical 220VAC
2. Input voltage range: 176-305VAC
3. Input Frequency: 50/60HZ
4. Input Frequency range: 47-63HZ
5. Max input vcurrent:1.0A Max, Vin=200VAC, rated load
6. Input Inrush current<20A, 240VAC input, 25 clod start
7. PF>0.95, Vin=200-240VAC, rated load
8. THD<10%, rated input voltage, rated load
| Model NO | Input voltage | Output voltage | Output current | Output power | Efficiency | Dimension/mm |
| APMS-150C-700 | 200-277VAC | 108-216VDC | 700mA | 150W | 92% | 180x63x40 |
| APMS-150C-1050 | 200-277VAC | 71-142VDC | 1050mA | 150W | 92% | 180x63x40 |
| APMS-150C-1400 | 200-277VAC | 54-108DC | 1400mA | 150W | 92% | 180x63x40 |
| APMS-150C-2100 | 200-277VAC | 36-72VDC | 2100mA | 150W | 92% | 180x63x40 |
| APMS-150C-2800 | 200-277VAC | 27-54VDC | 2800mA | 150W | 92% | 180x63x40 |
| APMS-150C-3500 | 200-277VAC | 14-28VDC | 3500mA | 150W | 92% | 180x63x40 |
| APMS-150C-4200 | 200-277VAC | 18-36VDC | 4200mA | 150W | 92% | 180x63x40 |
| APMS-150C-5000 | 200-277VAC | 15-30VDC | 5000mA | 150W | 92% | 180x63x40 |
Dimension:180(L)*63 (W)*40(H)mm
Packing: 0.8KG/PC, 350x310x260mm, 16pcs / 14.3 Kg /0.02CBM/CTN
