Product Details
| Brand Name | chaoli | Place of Origin | China | |
| Model Number | CL-0720 |
Product Description
1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
BASIC INFORMATION | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | Terminal resistance | ||||||||||
Model | Calculate KV | Operation range | Nominal | Current | Speed | Current | Speed | Efficiency | Torque | Power | Current | Torque | |||
| rpm /V | VDC | VDC | mA | r/min | mA | r/min | ηmax | mN.m | gf.cm | mW | A | mN.m | gf.cm | ||
| CL-0720 | 9.5 | 2.0~4.5 | 3.2 | 110.0 | 30500 | 574.5 | 25598 | 65.37% | 0.448 | 4.572 | 1201.6 | 3.00 | 2.789 | 28.45 | 1.07 |
| 10.9 | 2.0~4.5 | 3.2 | 100.0 | 35000 | 540.4 | 29534 | 66.41% | 0.371 | 3.787 | 1148.3 | 2.92 | 2.378 | 24.25 | 1.10 | |
| 11.4 | 2.0~4.5 | 3.4 | 140.0 | 38600 | 793.7 | 32812 | 67.83% | 0.533 | 5.434 | 1830.5 | 4.50 | 3.553 | 36.24 | 0.76 | |
| 12.5 | 2.0~4.0 | 3.2 | 70.0 | 40000 | 499.2 | 35081 | 73.92% | 0.321 | 3.279 | 1180.8 | 3.56 | 2.614 | 26.66 | 0.90 | |
| 13.4 | 2.0~4.0 | 3.2 | 150.0 | 43000 | 803.1 | 36233 | 66.13% | 0.448 | 4.569 | 1699.5 | 4.30 | 2.846 | 29.03 | 0.74 | |
| 14.2 | 2.0~4.0 | 3.2 | 170.0 | 45500 | 545.4 | 34688 | 47.38% | 0.228 | 2.322 | 826.9 | 1.75 | 0.958 | 9.77 | 1.83 | |
| 15.1 | 2.0~4.0 | 3.4 | 180.0 | 51500 | 1095.7 | 44234 | 69.84% | 0.562 | 5.730 | 2601.8 | 6.67 | 3.981 | 40.61 | 0.51 | |
| 17.9 | 1.5~3.7 | 2.4 | 150.0 | 43000 | 843.2 | 36506 | 67.59% | 0.358 | 3.649 | 1367.6 | 4.74 | 2.369 | 24.16 | 0.51 | |

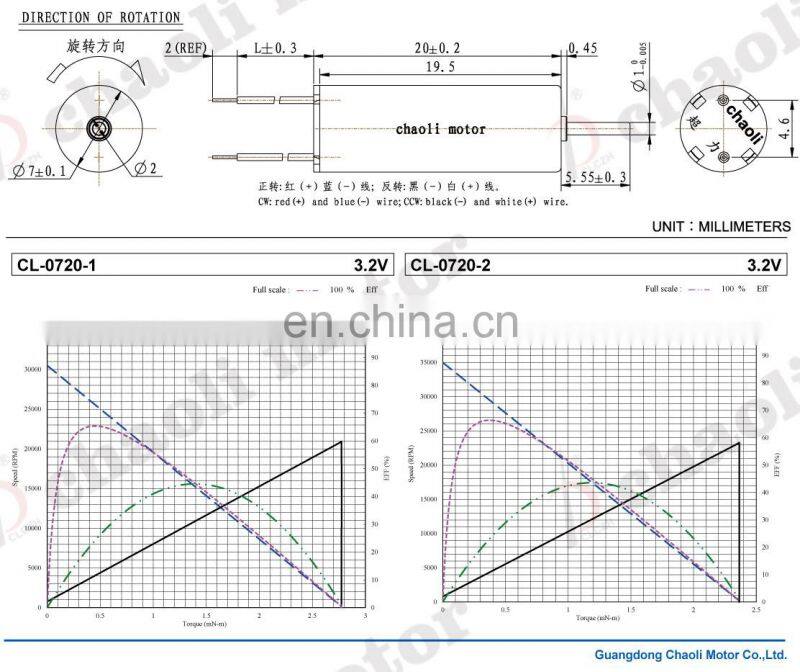

- Special features/structure:
- Motor type: PMDC coreless motor
- Motor housing (D*F* L): Φ7*20mm
- Housing material: SECD-O
- Shaft (diameter): 1.0mm SUS304 steel (nickel coating)
- Way of commutation: Precious metal-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Weight: 3.4g(approx)
- Options:
- Length and shape for the extended shaft
- EMI/EMC suppression
- Gear, eccentric wheel or reducer Increased
- Magnet type
- Wire diameter and turn number
- Key parameters/performance
- Rated voltage: 3.4V DC
- At no load:
- Speed: 39000rpm
- Current: 70mA
- At maximum efficiency:
- Speed: 33000rpm
- Current: 361mA
- Torque: 2.3gf.cm
- Output: 1.45W
- At stall:
- Current: 2A (maximum)
- Torque: 14.5gf.cm
- Application:
- This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.
