Secondary Current Injection Relay Tester Microcomputer 3-phase Relaying Protection Tester

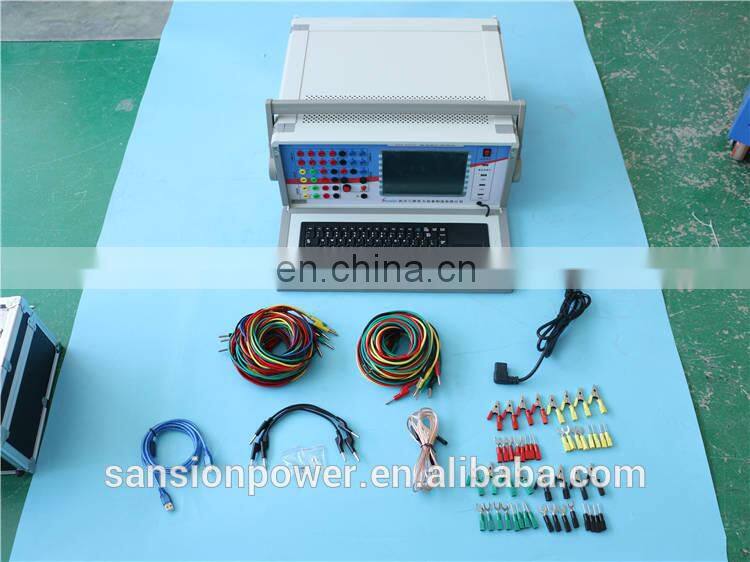

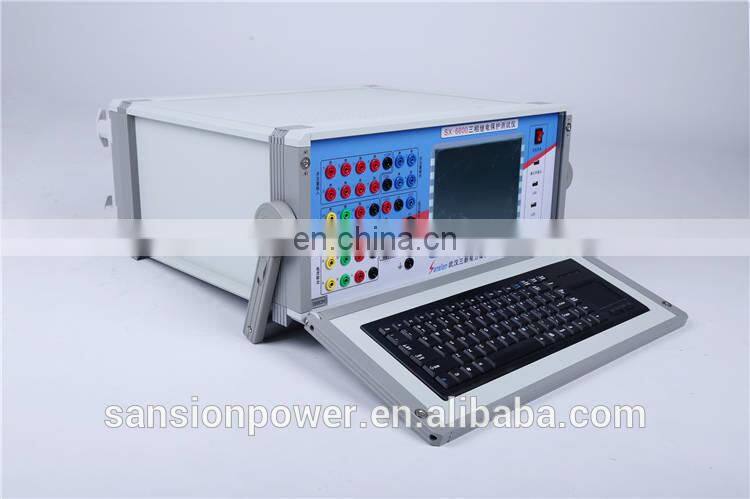

Protection systems play a key role for the safe and reliable operation of today’s electricity power systems. Properly working protection devices help to maintain the safety of the system and to safeguard assets from damage. SXJB-6600 Relay Protection Tester is the essential test tool for relay protection technicians.

Features:

Ø To meet all the test requirements. 6 binary current and 6 binary voltage output simultaneously. Current 30A/binary, voltage 125V/binary.  6 binary current paralleled can reached to 180A. It’s not only can test on traditional relays and protection devices, but also can test on various microcomputer protection, especially better test for transformer differential protection and automatic bus transfer device.

Ø Can run independently, high performance IPC, CPU 300--600MHz, RAM 128M, HDD 6-12G, Window XP system. It also can be outside connected with computer.

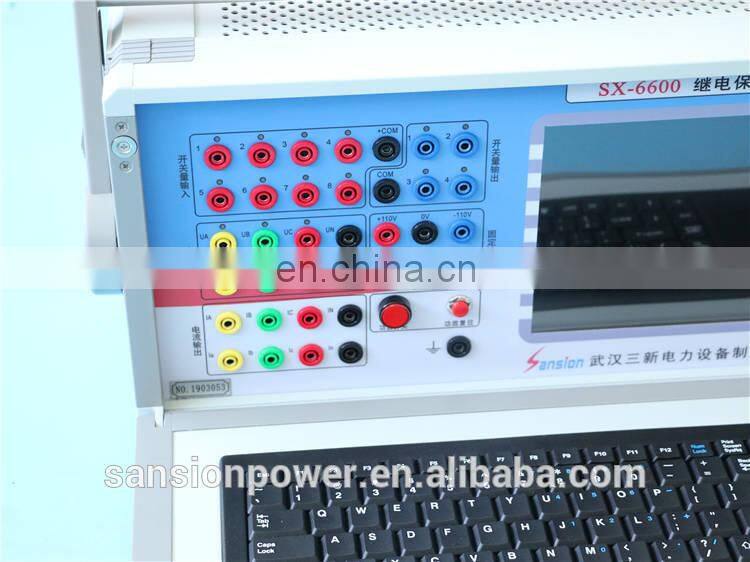

Ø Stainless steel panel and keyboard, touch type mouse.

Ø High performance D/A converter.  High fidelity linear power amplifier, to ensure small current’s precision, and large current’s stability.

Ø USB port, to connect with PC directly.

Ø AC voltage & current, DC voltage & current, variable amplitude, binary angle, frequency could be output directly.

Switching input port could auto adapt passive (idle contact) active, and adapt activeinput polarity automatically. Regular working within ±250V input.

  Ø Various protective fixed value could be scanned and tested, and store the test data by real time. Vector graphic and print report.

Specification:

Ø AC Current Supply:

Six binaries share the current supply neutral point, the current’s increasing and decreasing time <100μs

Max. output power:300VA/binary

Output accuracy:

Resolution:

Continuously output time of Single binary:

 Ø AC Voltage Supply:

Six binaries share the voltage supply of neutral point, the current’s increasing and decreasing time <100μs

Max. output power: ≥75VA/binary

Output Accuracy:

Resolution:

Ø DC Current Supply:

Single binary output range: -10A~+10A or 0~20A

Max. output power: 200VA/binary

Output Accuracy:

Resolution:5mA

Ø DC Voltage Supply:

DC voltage output range: -150V~+150V or 0~300V

Max. output power: ≥100VA

Output Accuracy:

Resolution:

Ø AC voltage/current angle:

Binary angle range: 0°~ 360°

Accuracy: ±0.3°

Resolution: 0.1°

Ø AC voltage/current frequency:

Frequency range: 10~1000Hz

The harmonic and DC of Arbitrary amplitude could be overlay 2~20 times.

Output Accuracy:

Resolution: 0.001 Hz

Ø Timing precision:

Ø Switching Input

8 channels independent contacts input, auto identify active contact’s polarity.

Idle contact and 15V~250V active contact is compatible.

Ø Switching Output

4 pairs programmable switching idle contacts’ output:

Contact:250VDC, 0.5A or 250VAC, 0.5A

Ø Synchronism

Synchronism of voltage & current ≤50μS

Ø Power Supply

AC input voltage

Rated: 220V ± 10%

Standard: 220V ± 2%

AC Power Frequency:

Rated: 50Hz ± 10%

Standard: 50Hz ± 2%

Ø Working Condition:

Environmental Temperature:-10℃~+40℃

Relative Humidity: ≤90%

Atmosphere pressure: 80~110kPa
