MPV-20B Screen Display PV Tribometer/ Friction/ Wear Testing Machine
- Qing Dao
- T/T Credit Card
You May Like
-
GW-40A Steel Bar Pipe Bending Testing Machine
-
Digital display torsion testing machine NJS-200
-
NJS Digital Display 30Nm Torsion Testing Machine
-
NJS servo Digital Display Torsion Testing Machine
-
NJS-30 Digital Electronic Torsion Testing Machine
-
NJS-50 50 Nm CE Certificate Digital-display Torsion Testing Machine
Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | MPV-20B | Power | Electronic | |
| Usage | Abrasion Tester |
Product Description

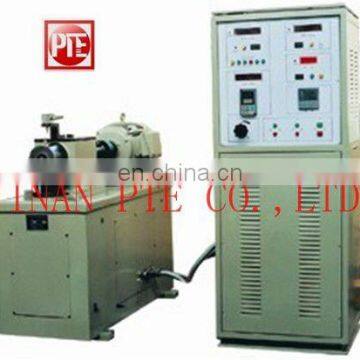

MPV-20B Screen Display PV Tribometer/ Friction/ Wear Testing Machine
Application:
This machine processes testing under the circumstance of oil-dropping lubricant and non-lubricant as well changing all the parameters such as load, speed, time, friction pair material, surface roughness and hardness, etc. It is mainly used for evaluating friction and wear capacity of bearing material which includes plastics, powder metallurgy and alloy, etc., and testing the reasonable conjugation clearance of bearings and PV value. Moreover, It can be used to test the bearing’s temperature rising, fiction coefficient and wear volume.
Main Specifications:
1. Max. Test force: 20kN
2. Test force accuracy: ±1%
3. Spindle speed: 200~280r/min, non-adjustable
4. Spindle speed accuracy: 10r/min
5. Max. Friction torque: 40N.m
6. Friction torque accuracy: ±3%
7. Temperature range: room temperature~200°C
8. Temperature accuracy: ±2°C
9.It adopts computer collecting data as well as screen displaying every parameter. In the coordinate at the same time, it uses four kinds of colors displaying four pieces of curves: load-time, friction modulus, temperature-time, line speed-time and prints test curves and reports with a printer..
10. Overall dimension (L x W x H): mainframe: 1350mm x 544mm x 1180mm
Control cabinet: 650mm x 600mm x 1650mm
