Product Details
| Brand Name | PTE | Place of Origin | Shandong, China | |
| Model Number | wdw-s0.05 | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description

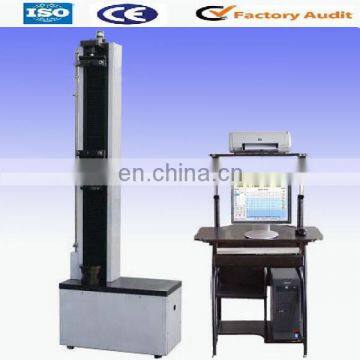

Computer Control Single Column Electromechanical hydraulic universal testing machine WDW-S0.05
Applications:
WDW -S0.05 Computer Control Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.
It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customers request.
It is for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Specifications:
Model | WDW-S0.05 |
Max. Load | 5kN |
Load accuracy | ≤±1% |
Load resolution | 1/200000 |
Load range | 2%-100% of full scale |
Test speed | 0.01-500mm/min |
Speed accuracy | ≤±1% |
Displacement resolution | 0.01mm |
Effective tensile space | 700 |
Dimension | 600x320x1750mm |
Power supply | 220V, 1ph, 0.5KW |
Weight | 200KG |
Grips | Wedge type, plate type and other grips as consumer’s demand |
Load frame type | Single column |
Features:
- High accuracy servo motor to control test speed.
- Ball screw no backlash to guarantee the low noise and high driving efficiency
- High accuracy load cell to measure the test load
- High accuracy photoelectric encoder to measure the displacement.
- Maxtest software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
- Thousands of test fixture can be used according to different test request;
- Compact structure with easy operation.
- Limit switch and setting in the software to guarantee the safety
Optional Accessories:
Large travel extensometer for rubber
LDW UTM LDW-S UTM WDW UTM(TECO SEVO MOTOR)
WDW-E UTM PANASONIC SERVO MOTOR WDW-ES UTM WDW-D UTM FLOOR TYPE
PTE- A Material Testing Machine Manufacturer
About PTE
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, spectrophotometer, Temperature Chamber, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
