clay sand casting processing production line for sand preparation reclaiming

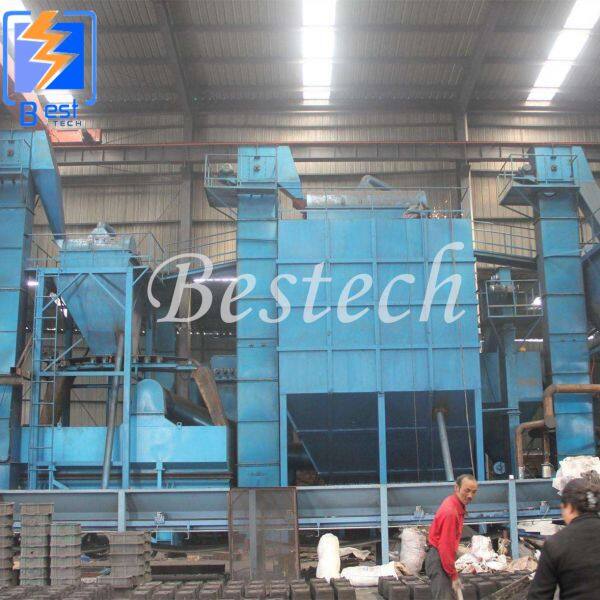

foundry clay sand production line

1.   Belt conveyor

This conveyor is a new type designed according to the special application of casting plant. It is mainly used

 for conveying the new sand, used sand, molding sand, coat and lime stone as well as the construction material,chemical industry and food processing for all granular or block shape material.

2. Multi-function vibration regenerator

This regeneration machine is designed for the resin sand or silicate bonded sand regeneration. The main

mode is vibration and friction regeneration, also the function of breaking sand shakeout, sieving, demold.

3. Bucket elevator

This machine is a vertical transferring machine which is applied in mechanical casting plant. It is mainly used

for elevating the used sand, waste sand, new sand, cleaning iron shot, etc. Combined with the belt conveyor

and other devices, we can design many kind of transferring system. The features are small external size, less

volume and higher elevation level so that the layout drawing will be compact.

4. Centrifugal regenerator

The centrifugal machine adopts the principle of dry process centrifugal regeneration. It is mainly used for used resin sand regeneration. The used sand will be

thrown to wearresisting lining by the high speed rotating blade. And the inert cover on the surface of resin sand will be removed by the rub and collision process between the sand articles, blade and box. According to the

 process requirement, the process will be repeated for many times till the target achieved.

5. air-float separator

The separator is mainly used for separating the powder from the sand of resin sand and sodium silicate

sand. The powder should be completely removed from regenerating sand, so that the regenerating sand may

meet the process requirement.

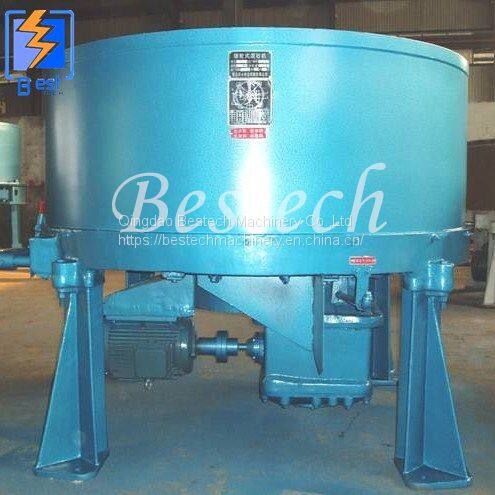

6. Rotor Sand Mixer

The rotor sand mixing machine has scrapers and two high-speed rotors with a blade were installed in the machine's chassis. chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtains different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.

7. Sand temperature regulator

The main principle of sand temperature regulator: The sand is conveyed to sand temperature regulator

from the top of sand temperature regulator and there are water pipes in the sand temperature regulator. T

he cooling water or hot water continuously flow in the heat sink which assembled with multilevel cooling pipes.

Hot sand or cold sand is conveyed to from the water pipes for heating exchange. The sand will be conveyed

out when reach the set temperature.

8. Dust collector

dedust the workshop and operation equipment

technical parameter:

Our Service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.

7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

Q:How many days will be used to produce this sand mixer machine?

A:Normally within 10 workdays or according to your requirement

Q:Can you provide installation and commissioning overseas?

A:We can supply oversea service if needed

Q:Are you manufacture or trading company?

A:We are manufacture,welcome to visit our factory
