Paper Confetti Rotary Die Cutting Machine 60 M/min Production Capacity 200-500mm 80m/min 320mm 700mm 350mm Max. Workable Width
- Ningbo port China
- T/T Credit Card
You May Like
-
Coreless Type Thermal Paper Roll Slitting Machine, Thermal Paper Roll Cutting Machine
-
Coreless ATM/POS/Fax Thermal Paper Roll Slitting Machine
-
Thermal Medical Charts Paper Slitting Rewinding Machine
-
Thermal Paper Slitting Machine, Thermal Paper Roll Cutting Machine, Thermal Paper Roll Making Machine
-
Coreless Thermal Paper Roll Cash Roll Till Roll Making Machine Whatsapp:008613958823303
-
SLF-B Solventless Lamination Machine
Product Details
| Brand Name | Xiaohai | Place of Origin | Zhejiang, China | |
| Certification | ISO9001 | Type | Die-cutting Machine | |
| Warranty | 1 Year | |||
| Weight | 800kg | Dimension(L*W*H) | 1800*1200*1800mm | |
| Condition | New | Voltage | 220V | |
| Computerized | No |
wooden case packing
Product Description

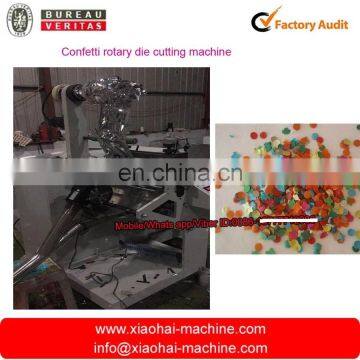

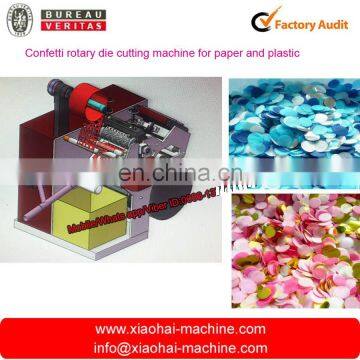

Rotary die cutting machine
Characteristics:
1. Unwind shaft with limiting baffle, easy for material fixing. Unwind web guide adopt frame mode, easy for adjusting, and with high precision.
2. Die cutting axle head fixing seat adopt circle design, it is easy for assemble and disassemble, compare with traditional square shape fixing seat, it saves half time. Die cutting pressure adjusting screw arbor is rotation structure, it do not need to take off.
3. Transmission adopt synchronous belt to reduce noise.
4. Unwind and waste collection all adopt magnetic powder brake/clutch to control, operation stable.
5. Unwind adopt auto tension control for constant tension, rewind adopt taper tension control
6. Unwind, waste collection air shaft all auto air charge.
Main technical parameters:
|
Die cutting speed |
80m/min |
|
Die cutting girth |
240-450mm |
|
Max.width of roll |
320mm |
|
Max.diameter of unwinding roll |
650mm |
|
Overall size |
1800*1200*1800mm |
|
Weight |
800KG |
|
Power supply |
AC220V |
Company Profile
We are a Big Group specializing in making all kinds of printing and plastic machines, such as plastic bag whole line machines (film blowing machines, flexo and gravure printing machines, lamination machines, all kinds of bag making machines), disposable glove making machines, plastic cup and paper cup making whole line machines, drink straw making whole line machines, label whole line making machines, and paper cutting whole line machines.
