two wheel battery operated motor cycle production line / motorbikes production line for sale

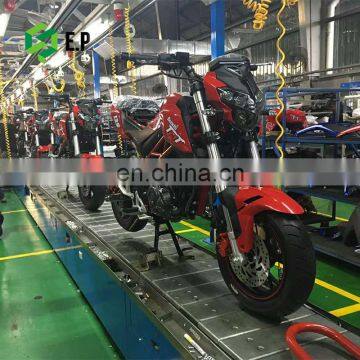

Working principle of the Motorcycle Assembly Line

The assembly stations are transferred in sequence, and the assembly line is equipped with standard configurations such as lighting, fans and tooling. The length of the line can be selected according to the output (generally not shorter than 30 meters). The large-pitch needle roller chain is used as the conveying medium, dragging the metal panel to run in a cycle (the conveying speed is adjustable, the time can be adjusted), and the assembly process of the factory can be effectively adjusted through the automatic assembly line operation, and reasonably allocate each process. On-line inspection and automatic assembly machine Can be installed on the production line to implement effective product quality control and equipment operation status monitoring, providing with necessary protection for modern large-scale production.

The production line mode has several modes, such as chain dragging, chain pulling and tooling. (As non-standard equipment, the production line is generally designed to adapt to the requirements of customers' products and production processes.)

Production line chain board selection: carbon pot, stainless steel, glue wood, plastic steel and so on.

The chains have two types, light and heavy according to the scale:

Component composition:

It is generally driven by electric motor, and the steel conveyor chain is used for overall traction, the load-bearing steel plates and plastic plates are fixed on the chain bending plates in the guide rails on both sides of the conveyor as the conveying medium, All of them are connected and fixed together as the overall load-bearing and conveying mechanism of the equipment.
