TAOXING Full automatic uv swing cylinder screen printer
- ningbo/shanghai port
- T/T Credit Card
You May Like
-
CCD registratering semi-auto thick film circuit screen printing machine
-
semi-automatic printed circuit board screen printing machine for SMT process
-
Automatic Single Colour Bubble Tea Plastic Shaker Printing Machine
-
Automatic Hot Melt Powder Spraying Machine
-
Plastic barrel dustbin Trash bin Trash can screen printing machine
-
Screen printing machine for socks
Product Details
| Brand Name | TaoXing | Place of Origin | Zhejiang, China | |
| Condition | New |
Product Description

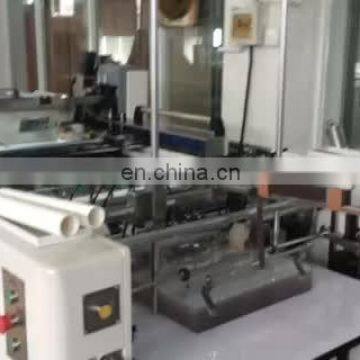

CE certificated Full automatic uv swing cylinder screen printer
1: Application:
It widely used on sheet paper, ceramics decals color paper, igarettes and wine packing, heat transfer film, PVC plactic base, and so on.
2: Features and performance:
The production line consists of Automatic Swing Cylinder Screen Printing Machine, UV Dryer, Automatic Stacker.
Printing with ink on material is achieved at the printer part, then Delivery Bridge serves as a transition between printer and dryer. Printed material will be dried/UV coated at the dryer part with high temperature UV lamps. Afterwards, the printer material will be well collected and stacked in the Automatic Delivery Machine without spare staff to carry collection job.
1. Automatic control, delivery and paper triming; easy installation, adjustment and operation;
2. Pneumatic paper triming to aviod breaking paper breaking and other printed material;
3. Platform high-and-low position security set to avoid damge to machine when platform position set malfuntion;
4. Adopting high-end core parts such as motor and monitor from Europe and Japan;
5. Printer can be smarted adjusted to take paper out easily without disassembly.
3: Technical Parameter:
Model | TX-720 | TX-780 | TX-1020 |
Max.printing size: | 720*500mm | 780*520mm | 1020*700mm |
Min.paper size : | 350*270mm | 350*270mm | 480*270mm |
Max.paper size : | 720*520mm | 780*540mm | 1020*720mm |
Border: | < 15mm | < 15mm | < 15mm |
Paper thickness : | 100-350g/m2 | 100-350g/m2 | 100-350g/m2 |
Screen frame size: | 880x880mm | 940x940mm | 1180*1000mm |
Max.printing speed: | 600-3600s/h | 1000-3600s/h | 1000-3600s/h |
Weight : | 3200kg | 3500kg | 4100kg |
Power (kw) : | 3P4N 50/60HZ 380V 8.20 | 3P4N 50/60HZ 380V 8.20 | 3P4N 50/60HZ 380V 8.20 |
Dimension (L*W*H) | 3020*1400*1250mm | 3050*1470*1280mm | 3150*1680*1300mm |
4: Printing Samples:
6: Our service: We will afford you the best products, and, first -class service.
Whenever you have questions, can contact with us .
8: FAQ:
(1)Do this machine is Automatic?
Yes, it is full-automatic.
(2)What can this machine print?
It suitable for flat soft and half-soft materials of 100-350g/m2, such as sheet paper, ceramics decals color paper, cigarettes and wine packing, heat transfer film, PVC plactic base, and so on.
(3)What size do this machine can print?
Max.printing size: 720mm*500mm/780mm*520mm/1020mm*700mm
(4)What about the speed and efficiency?
This machine, the printing speed can achieve 1000-3600s/h, it is 4-5multiple than the semi-automatic screen printing machine.
(5)How to operate this machine?
We will send you user manual, operate video for you to study, also, if possible, we will dispatch the technical engineer training for you overseas, but the overseas cost you need afford.
(6)If the machine has bug, what can i do?
Usually, You can watch the user manual or consult us to solve it, if possible, we will dispatch the technical engineer maintain oversea, but the oversea cost you need afford.
(7)How many packages have?
It have 2pcs wooden case.
