Intelligent Rebar Detector Price

FOB Price

US$ 1,480 - 1,580 / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GTJ		Place of Origin	Hebei, China
Model Number	R800-aa11

Product Description

Product Parameters

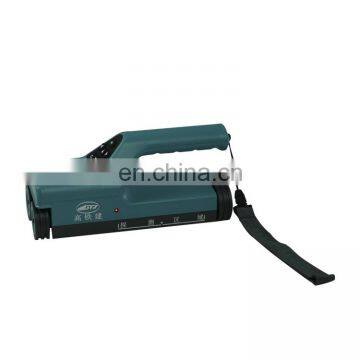

The steel locator instrument is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of the steel bars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the steel bars. In addition, the magnetic properties inside the concrete structure can also be The position of the body and the conductor are detected, such as the internal cable of the wall, the plumbing pipe, etc., and the detection before construction can effectively avoid damage to these facilities during construction and reduce accidents.

Specification model		GTJ-R800
Rebar diameter setting range(mm)		∅6mm ~ ∅50mm	Host parameter	screen size:2.8inch
Small range		1-80mm		Resolution:240×320
Large range		1-180mm		volume:220×93×110mm
Maximum thickness of protective layer	±1(mm)	1-59mm		weight:0.6kg
	±2(mm)	60~100mm	Data transmission method	TF-card
	±4(mm)	100-180mm	Power supply	lithium battery
Diameter estimation range		∅6mm~∅32mm	storage	2000member*1000 Measuring point
Diameter indication maximum error		±1specification	Working environment requirements	temperature:-10℃~+40℃
Profile measurement function		stand by		humidity:<90%RH
Grid measurement function		stand by	other requirements	Does not contain corrosive gases in the air
Waveform measurement function		stand by		No strong electromagnetic field interference. There should be no large vibration and shock
Probe self-calibration		stand by		Avoid direct sunlight
