KXC ANSI gas hdpe check valve
- TIANJIN
- T/T Credit Card
You May Like
-
3" DN80 Wafer Double door check valve PN16 DH77X DI body Stainless steel 304 disc stem spring EPDM seal
-
4" DN100 Wafer Dual plate butterfly check valve PN16 DH77X with Ductile iron body SUS 304 disc stem spring EPDM seat
-
12" DN250 Wafer Dual plate butterfly check valve PN16 DH77X with Ductile iron body SUS 304 disc stem spring
-
4" DN100 Wafer Dual plate check valve PN16 PN25 with stainless steel 304 body disc stem and spring
-
8" DN200 Wafer Dual plate butterfly check valve PN16 DH77X with Ductile iron body SUS 304 disc/stem/spring EPDM seat
-
DN150 6" SS304 CF8 CF8M dual plate wafer check valve
Product Details
| Brand Name | KXC | Place of Origin | Tianjin, China | |
| Model Number | KXC-CV-DP-1605 | Material | Casting | |
| Structure | Check | |||
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Hydraulic | Port Size | Standard | |
| Temperature of Media | Normal Temperature |
Product Description

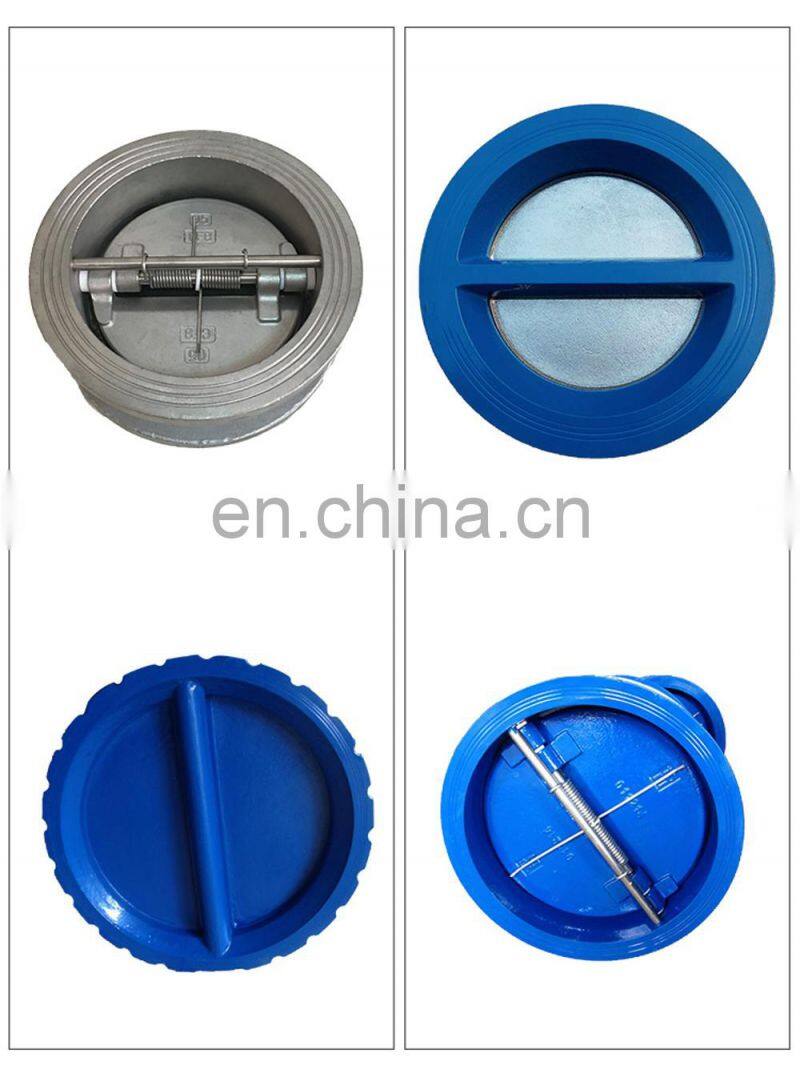

KXC ANSI gas hdpe check valve

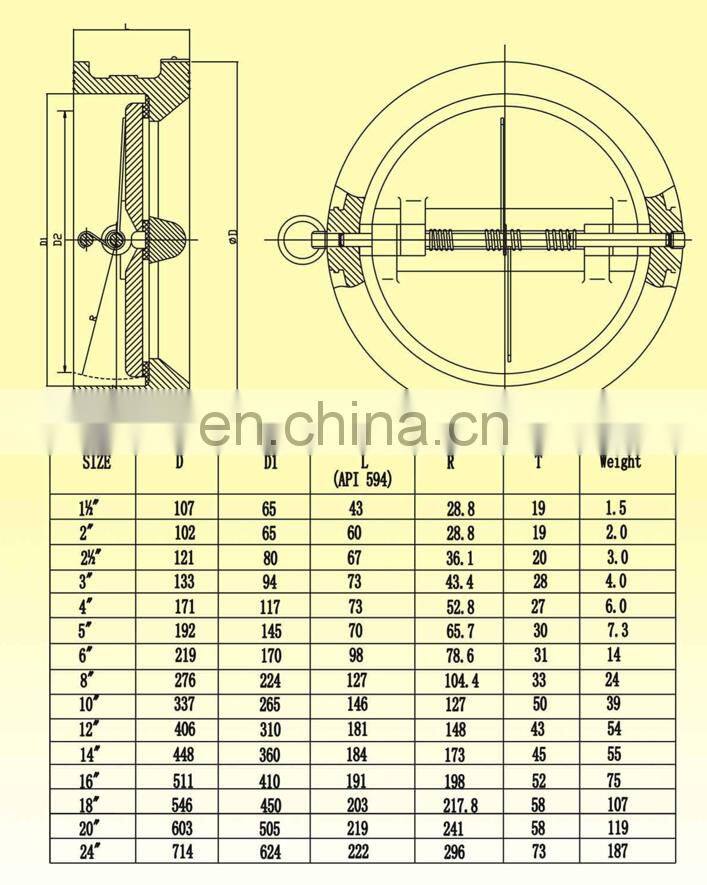

| TECHNICAL DATA: | |
| Nominal diameter: | DN50-600/2"-24" |
| Face to face: | API 594, API 609, BS 5155 |
| Flange accommodation: | AS 2029 "D","E" BS 10 "D","E" JIS 5K/10K/16K ASME B16.1 125LB ASME B16.5 150LB BS 4504 PN6/PN10/PN16 DIN 2501 PN6/PN10/PN16 ISO 7005 PN6/PN10/PN16 |
| Design standard: | API 594, API 609, BS 5155 |
| Temperature range: | -20℃ to+120℃(depending on pressure,medium and materal) |
| Test inspection: | APL 598 GB/T 13927 |
| Suitable medium: | fresh water, waste water, sewage, air, vapor, food, oil, etc. |
| Name | Material |
| Seat | NBR/EPDM/Viton |
| Eyebolt | SS304 |
| Body | CI/DI/WCB/CF8/CF8M |
| Plate | DI/DI+EPOXY/CF8/CF8M |
| Spring | SS304 |
| SHaft | SS304/SS316/SS416 |
| nut | SS304 |
1. Are you a trading company or a manufacturer?
We are a manufacturer, so we have cost advantage and you can enjoy faster communication on product detail.
2. How long does it take to get a quotation?
Generally, it takes 2 work day to make the offer. However, for urgent inquiry, we can provide the quotation within 12 hours.
3. How do you control your quality?
We use top quality material to manufacture our products in order to guarantee prime quality. All the products will be fully inspected before delivery.
4. Can I get a sample to check your quality?
Yes, of course. It is our pleasure to send a sample for you to check our product quality.
