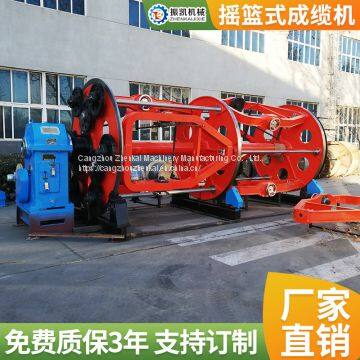

Cradle type cable forming machine

Sphere of application：

This series of products is suitable for all kinds of cross-section multi-core power cables, cross-linked cables, control cables of the use of armored cable. It can also be used for the manufacture of charging post and cable.

Equipment composition：

Center lay-out frame, main machine of stranding cage, parallel mould base, winding machine, armoring machine, meter counter, traction device, take-up and lay-up device, transmission system and electrical system.

Product Information：

The rack is provided with two die bases, with two bottom covers, which can be opened and closed. Mould base is equipped with wire-assembling die (customer's own) , cable-forming machine, upper cover is pressed by screws to fix the wire-assembling die. A handwheel and a screw rod are arranged on the rack, which can adjust the front and back of a die base, so that the die mouth is suitable for the stranding angle, and the cable can be well stranded in the assembling die.

Product benefits:

1.this series of cable-forming machine variety, full specifications, wide application, users can choose the corresponding cable-forming equipment.

2. It has the function of unwinding and unwinding. There are two ways of untwisting: untwisting ring, untwisting planetary gear train and untwisting chain wheel.

3. pre-twist form is divided into manual pre-twist and electric pre-twist, wire disc clamping is divided into manual and electric clamping, take-up is divided into shaft and non-shaft form.

Points to note：

1.Each unit of the cabling machine is lubricated locally, and the oil level is often observed from the oil hole.

2. The oil level in the gearbox is checked once a month. If the oil level is lower than the oil line, a new oil must be added, check whether the fastening screws of the wire frame gland are loose and tightened before each shift production.
