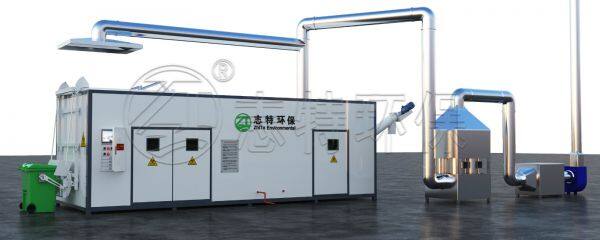

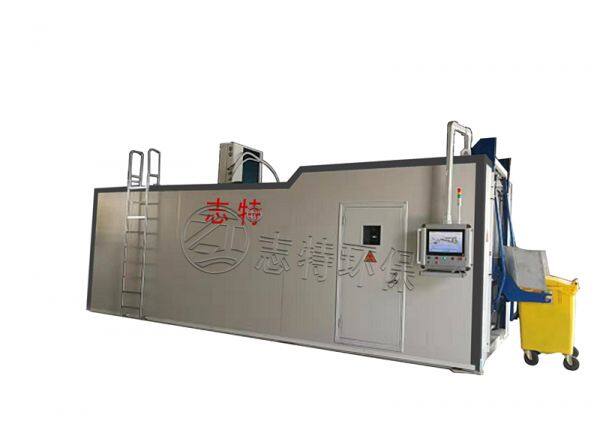

Medical Microwave Disinfection Equipment

Medical waste microwave disinfection integrated machine mainly includes the following

Material receiving and feeding system: including medical waste receiving metering, unloading, temporary storage, transportation and other facilities.

Microwave disinfection treatment system: including medical waste microwave feeding unit, crushing unit, microwave disinfection treatment unit, automation control unit, waste gas treatment unit and wastewater treatment unit, etc.

The supporting projects mainly include: general plan transportation, roads outside the factory, power supply and distribution, water supply and drainage, fire protection, communication, heat, heat flux, appliance washing, disinfection, etc.

Features of microwave sterilization

(1) Energy saving: Microwave heating has its own unique features. Other heating methods are to first heat the surface of the object.

Then the heat is transferred from the surface to the inside and the microwave can be used to directly heat the inside of the object, the heating is uniform, and there is no energy

Loss of volume, high energy, strong penetrability for waste disposal, and can penetrate into the object instantly.

2) Different effects on materials of different properties: the lossy medium materials can be directly sterilized,

Lossless media can be sterilized with lossy media, and microwave-permeable but lossless materials can also be used.

As sterile packaging material

(3) The action temperature is low, and the heat loss is slow: if microwave and ordinary heating produce the same amount of heat effect, its

The temperature acting on the object is significantly lower than ordinary heating. The temperature required for common heating and poisoning is above 120℃

The effect is 20min; while the microwave sterilization temperature is only at 70-105℃, the effect is 1.5-5min

(4) Fast action: The electromagnetic wave energy conversion process is extremely fast and can be completed within 10-8. in

Disinfection speed is faster than other disinfection factors

(5) Non-selective effect on organisms: microwave has the same effect on all organisms without selectivity,

It has a wide knowledge of disinfection bacteria and can kill various microorganisms and pathogens.

(6) The waste after microwave disinfection is non-toxic, no residue, and lightly damaged. Working ring required for microwave sterilization

The environment and floor space are small, and the surrounding environment is not high temperature, clean and hygienic

(7) Low environmental pollution: no pollutants such as acid gas and dioxins are produced.

The scope of application of microwave disinfection

Various wastes have different microwave absorption capabilities, and the amount of microwave absorption can affect the disinfection effect

Therefore, it is generally divided into three categories according to the nature of waste

(1) Absorbing medium The medium that will be obviously absorbed and generate heat when microwaves propagate in waste is called

Absorb the medium. Those with large dielectric constant and dielectric loss have good absorption efficiency, such as water, meat and waste with high water content.

All objects are strong absorbing media

(2) Good conductors do not absorb microwaves. Metals such as steel, brass, silver, iron, stainless steel can cause reactions

Radiate without absorbing microwaves

(3) Insulators rarely absorb the medium, which is called a good medium for microwaves. Such as quartz, ceramics, glass

For products such as glass, polyvinyl fluoride, most of the microwave can pass through, but a small part of it can reflect

Good conductor materials are not easily sterilized by microwave irradiation. But if it is wrapped in cloth and placed in water

Or in the water vapor environment, the water molecules absorb microwaves to increase the temperature, which can meet the disinfection requirements. Damaging waste

Mixed with pathological waste and infectious waste and then humidified, it has the same effect as metal wrapped in a wet towel.

Visible microwave can also process damaging medical waste in batches

Due to the thermal effect of microwave, pharmaceutical waste and chemical waste will produce different chemical changes, releasing

Complex toxic and hazardous substances. Therefore, microwave disinfection is not suitable for processing these two types of waste.

Medical microwave sterilization equipment supports a full set of customization.

Pledge:

1. Pre-sale:

    1. Instruct customers to choose suitable equipment;

    2. Plan the site and design the production process for users;

    3. Design and manufacture special products according to customer requirements.

2. On sale:

    1. Strictly inspect all parts during the production process;

    2. Organize delivery on schedule in accordance with the contract.

3. After sale:

    1. Telephone support

   Refers to the customer seeking technical support and help from the company via telephone or fax when encountering difficult problems or abnormal conditions during the use of the equipment. After confirming the customer's service request, the company will arrange technicians to help the demander locate the fault by telephone within the specified time (ie response time), and propose solutions, and finally guide the customer to eliminate the equipment failure.

    2. On-site support

   Refers to the customer seeking technical support and help from the company by phone or fax when encountering difficult problems or abnormal conditions during the use of the equipment. After confirming the customer's service request, if the company cannot diagnose and resolve the fault over the phone, it will immediately send a technician to the scene to deal with it and finally solve it.

    3. The company's products provide "warranty system"

   One-year warranty and lifetime maintenance; 24 hours to accept technical consultation and provide customers with technical diagnosis; maintenance personnel are quickly in place after receiving the fault notification to eliminate the fault; assist users in system upgrades, equipment and mold updates.
