Home > Products > Gold testing machine > (NH-3000)None Destructive Gold Electronic Densimeter,Gold tester,Gold Testing Machine

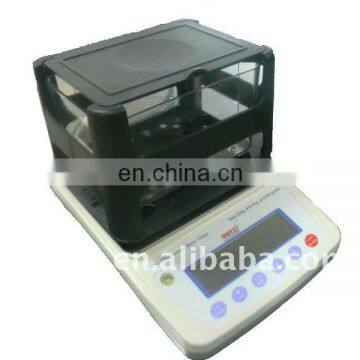

(NH-3000)None Destructive Gold Electronic Densimeter,Gold tester,Gold Testing Machine

FOB Price

USD $5,500 - $6,200 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Napco		Place of Origin	Guangdong, China
Model Number	NH-3000		Power	Electronic

(NH-3000) 3000g None Destructive Gold Electronic Densimeter

Range (g) 3200

Accuracy (g) 0.1

Density accuracy (g / cm 3) 0.01

Precision of gold fineness 0.1%

Precision of Kvalue 0.1K

Pt value accuracy 1pt

Precision volume(cm 3) 0.001

Percentage accuracy(%) 0.01

Repeatability (g) 0.1

Linearity (g) ± 0.1

Temperature drift ± 20ppm / °C (10-30 °C / 50-86 ° F)

Operating temperature -10 °C - 40 °C / 14 ° F-104 ° F, humidity below 85% RH

Power supply AC220V-5HZ, DC9V 500mA

Net weight 1.8kg

NH3000	Test Parameters
Uint	K Value,The Percentage of pure gold,Pt (Platinum Pt Value),The main metal alloy test
Weighing Range	0-3000g(Heavy metal measurements should higher then 5g)
Weighing Accuracy	0.1g
Density Accuracy	0.1g/cm3
Accuracy Percentage of Pure Gold	0.1%
PT Value Precision Platinum	1 Pt (1-10000Pt)
K Precision	0.1K-24.0K (Greater Then 24 is displayed as 24.0K)
K means the ratio of gold	Gold+Copper/ Gold +Silver/Gold+Copper+Silver (Cu:Ag=7:3)
Five Measuring Modes	DG Gold Test	Percentage of gold/ K Value/ Density/ Volume (22K Gold over to test)
	DK K-Gold Test	K-1 Gold+Copper / K-2 Gold +Copper+Silver/ K-3 Gold+Silver/Density/Percentage of pure gold value / Volume
	DP Platinum Values	P-1+Ni/P-2 Platinum+Palladium/Density/Volume
	Da Alloy (Alloy) Measured the proportion of primary metal	Percentage of primary metal/ Density / Volume
	DS Solid Density Test	Density / Weight in air /Liquid Weight /Volume / Precentage
