Home > Products > Microscope > Optical Metallurgical Microscope Price MIT500

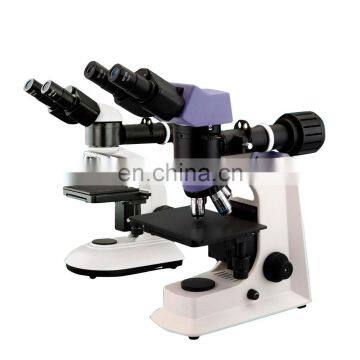

Optical Metallurgical Microscope Price MIT500
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Drawell | Place of Origin | Shanghai, China | |
| Model Number | MIT500 |
Product Description
Metallurgical Microscope
MIT Series
MIT Series Metallurgical Microscope Outfits
|
Items |
Specifications |
MIT300 |
MIT500 |
|
|
Eyepieces |
WF10X -18mm |
YY |
YY |
|
|
WF10X -18 mm (Reticule 0.1mm) |
Y |
Y |
||
|
WF5X |
oo |
oo |
||
|
WF12.5X |
oo |
oo |
||
|
Infinity Plan Objective (no cover glass) |
5X/0.1 |
W.D=6.73mm |
Y |
Y |
|
10X/0.25 |
W.D=4.19mm |
Y |
Y |
|
|
20X/0.4(S) |
W.D=2.14mm |
Y |
Y |
|
|
40X/0.65 (S) |
W.D=0.45mm |
o |
o |
|
|
100X/1.25 (Oil) (S) |
W.D=0.12mm |
o |
Y |
|
|
Long Working Distance Infinity Plan Objective (no cover glass) |
20X/0.4 (S) |
W.D=8.35mm |
o |
o |
|
40X/0.65 (S) |
W.D=3.90mm |
Y |
Y |
|
|
50X/0.7 (S) |
W.D=1.95mm |
o |
o |
|
|
80X/0.80 (S) |
W.D=0.85mm |
o |
o |
|
|
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, |
Y |
Y |
|
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, |
o |
o |
|
|
Nosepiece |
Quintuple |
Y |
Y |
|
|
Mechanical Stage For Reflection Illumination |
Stage Size: 190X140mm,Travel: 78mmX55mm Stage Up-Down moving range can be 50mm (Max.) |
Y |
|
|
|
Mechanical Stage For Transmission Illumination |
Stage Size: 190X140mm,Travel: 78mmX55mm |
|
Y |
|
|
Stage Plate |
Place The Sample on The Plate |
Y |
Y |
|
|
Clip |
|
|
Y |
|
|
Glass Plate |
|
|
o |
|
|
Stage Micrometer |
0.01mm |
o |
o |
|
|
Polarizing Unit |
Polarizing /Analyzer Slide |
Y |
Y |
|
|
Condenser |
Abbe N.A. 1.25(Iris Diaphragm) |
|
Y |
|
|
Illumination |
12V/50W Halogen Lamp (Reflection Illumination) |
Y |
Y |
|
|
6V/20W Halogen Lamp (Transmission Illumination) |
o |
Y |
||
|
6V/30W Halogen Lamp(Transmission Illumination) |
o |
o |
||
|
Field Diaphragm |
|
|
Y |
|
|
Filter |
Blue |
o |
Y |
|
|
Green |
o |
o |
||
|
Yellow |
o |
o |
||
|
C-mount |
1X |
o |
o |
|
|
0.57X (Focus Adjustable) |
o |
o |
||
Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.
Packing Size: 750mm×360mm×450mm Gross Weight: 16 kgs Net Weight: 12 kgs
