Hot sale Gas/ Hplc Chromatograph With Cheap Price In India

FOB Price

USD $8,000 - $15,000 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Drawell

Place of Origin

Shanghai, China

Product Description

Gas Chromatography

Model#		DW-GC1120
Sample Introduction System		sample injector and evaporation chamber
Column Oven	Temperature range	Ambient temperature +7℃ ~ 400℃ (in 1℃ increment)
	Temperature accuracy	± 0.02℃
	Cooling time	400℃ to 50℃ in 8-10 min at 25℃ ambient
	Programmed temperature setting	0.1℃~40℃/min (in 1℃ increment)
	Program ramps	7 ramps in total (10 ramps available with control workstation)
	Size (LWH)	284280241mm(inside)	340345281mm(outside)
Flame Ionization Detector (FID)	Detection limit	≤3×10-12g/s (C16)
	Best test result	≤3×10-12g/s (C16)
	Drift	≤6×10-13A/30min
	Noise	≤5×10-14A
	Linearity range	≥106
Thermal Conductivity Detector (TCD)	Sensitivity	≥5000mV, mL/mg (C16)
	Baseline noise	≤20µV
	Drift	≤60µV/h
	Linearity range	≥104
Flame Photometric Detector (FPD)	Detection limit	≤8×10-13g/s(P) ; ≤8×10-11g/s(S)
	Drift	≤2×10-11A/30min
	Baseline noise	≤5×10-12A
Nitrogen-Phosphorus Detector (NPD)	Detection limit	≤5×10-12g/s(N) (Azobenzene) ≤5×10-13g/s(P) (Malathion)

Features:

1.Control system: designed for monitoring and controlling the instrument via the computer.
2.Column Compartment/oven with superior thermal performance, multistage (10 ramps) programmed temperature control function. (supported by “control system”)
3.Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control

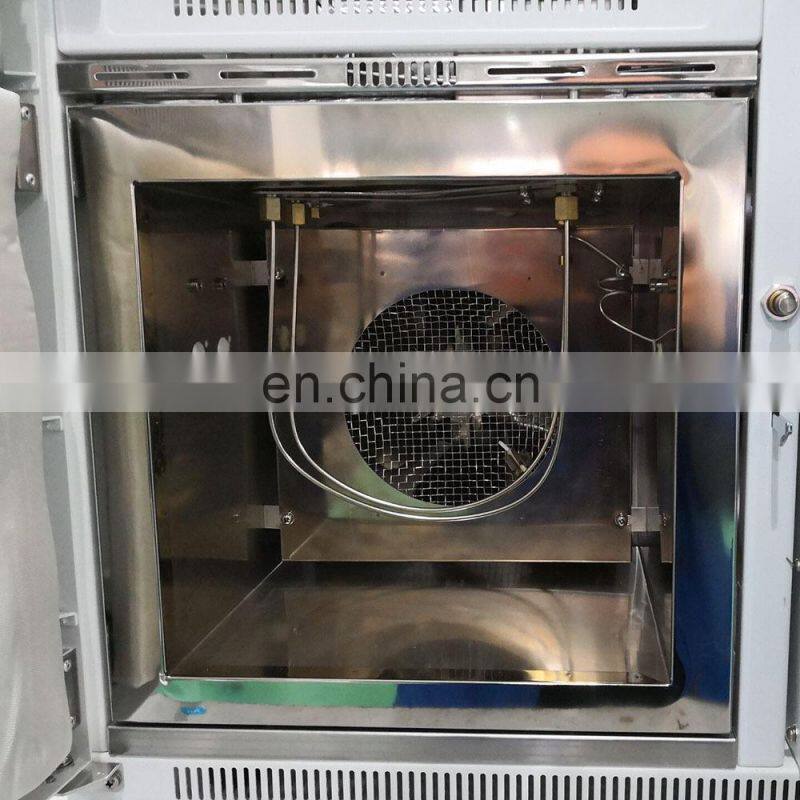

4.Column oven accommodates up to 3 chromatographic columns, and supports quick heat-up and rapid cool-down with automated back-door opening.
5.Flexible sample introduction system: 3 sample injectors could be installed and operated simultaneously with independent temperature control.
6.High sensibility and stability detector.
7.2 independent and analog signals output.
8.M6 software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures)

Product Show:
