Home > Products > Spectrophotometer > Flame AAS Atomic Absorption Spectrometer With Graphite Furnace

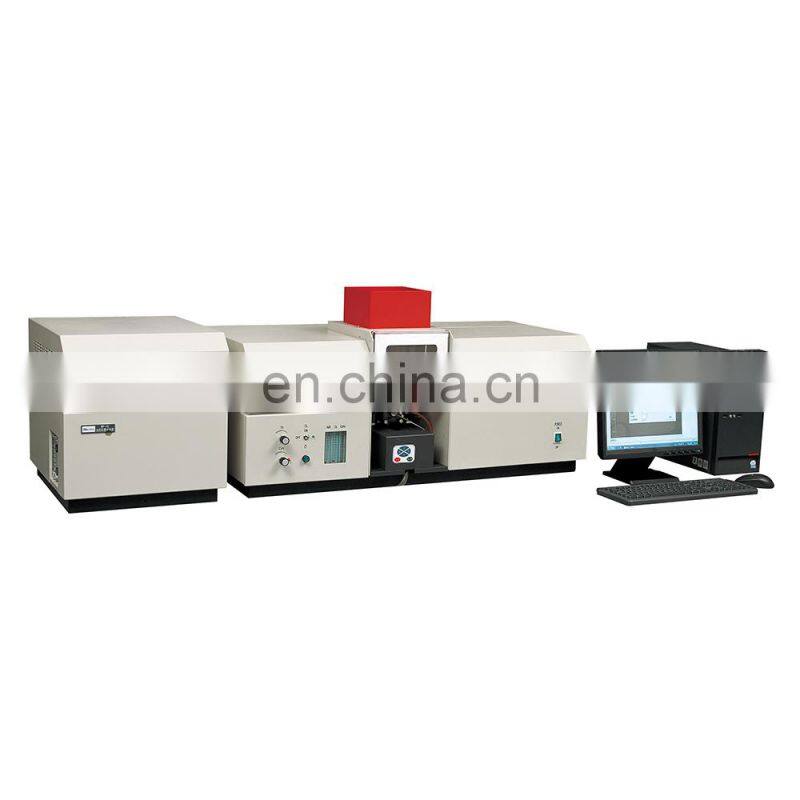

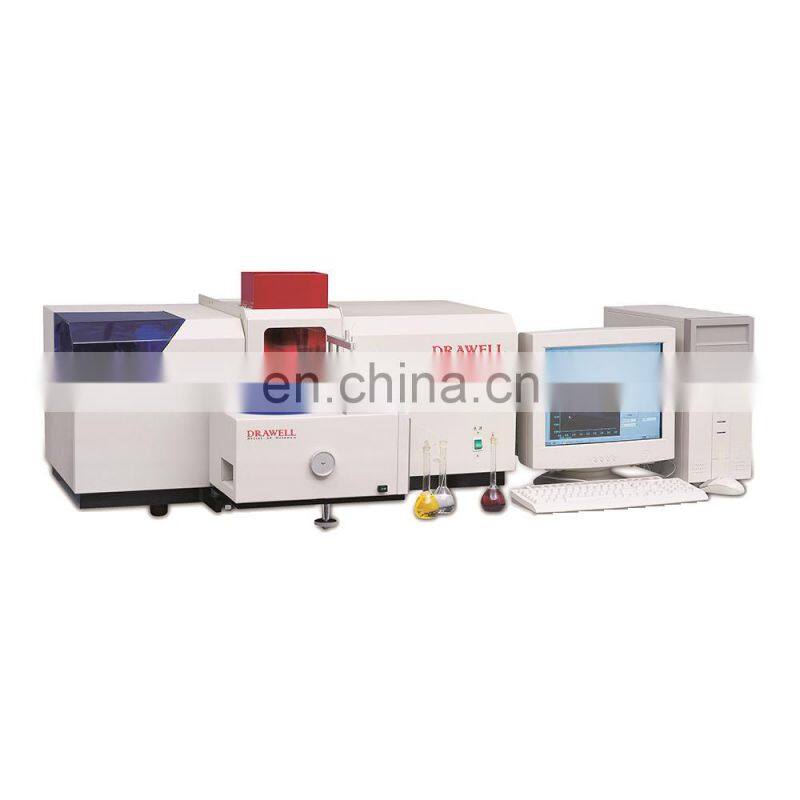

Flame AAS Atomic Absorption Spectrometer With Graphite Furnace

FOB Price

US$ 13,000 - 25,500 / Piece

1 Piece(Min. Order)

Port shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Drawell	Place of Origin	Shanghai, China
Model Number	DW-AAS-130A	Size	1020490540mm /420420460mm
Weight	80KG/50KG	Wavelength Range	190-900
Focal Length	±0.25nm

Product Description

DW-AAS-110A/120A/130A

Flame/Graphite Furnace Atomic Absorption Spectrophotometer

FEATURES:

Innovated Rich oxygen air-acetylene flame analysis technique (DW-AAS-110A)

The patented flame analysis technique adopting rich oxygen air-acetylene flame as the substitution for nitrous oxide-acetylene flame for high temperature element analyses, such as Ca, Al, Ba, W, Mo, Ti, V, etc. Flame temperature is continuously adjustable between 2300-2950℃, which makes it possible to choose the best atomization temperature for different elements. It features easy operation, low analysis cost and wide flame AAS analytical range. Rich oxygen flame is will not pollute the environment and is not harmful to human bodies. It’s a break-through in flame AAS analysis.

Integrated flame/graphite furnace atomization system, changeable with flame emission burner

· Automatically controlled changeover of the integrated flame and graphite furnace atomizer featuring easy operation and time saving eliminates human labor.

· A flame emission burner head can be installed to perform flame emission analysis to Alkali metals as K, Na etc. (DW-AAS-110A/120A)

Accurate fully automated control system

· Automatic multi-lamp turret, automatic adjustment of lamp current and optimization of light beam position.

· Automatic wavelength scanning and peak picking

· Automatic spectral bandwidth changing

· Automatic changeover between flame and graphite furnace operation, automatic optimization of position parameters, and automatic ignition

Reliable fully automatic graphite furnace analysis

· Adopting FUZZY-PID and dual curve mode light-controlled temperature control technique, temperature auto-correction technique, ensures fast heating, good temperature reproducibility and high analytical sensitivity. The temperature control accuracy is less than 1%.

· Graphite furnace with pneumatic control and pressure lock ensures constant pressure and reliable contact.

Perfect safety protection measures

· Alarm and automatic protection to fuel gas leakage, abnormal flow, insufficient air pressure and abnormal flame extinction in flame system;

· Alarm and protection function to insufficient carrier gas and protective gas pressure, insufficient cooling water supply and over-heating in graphite furnace system.

Advanced and reliable electronic design

· Adopting large-scale programmable logic array and Inter I2C bus technology

· European type sockets and AMP adapters with high reliability to ensure long term reliability of the whole electronic system.

Easy and practical analysis software

· Easy-to-use AAS analysis software is made under Windows operating system, realizing fast parameter setting and optimization.

· Automatic display of measured data, automatic calculation and analytical result automatic print out.

SPECIFICATIONS:

Main Specification	Wavelength range	190-900n
	Wavelength accuracy	±0.25nm
	Resolution	Two spectral lines of Mn at 279.5nm and 279.8nm can be separated with the spectral bandwidth of 0.2nm and valley-peak energy ratio less than 30%.
	Baseline stability	≤0.004A/30min
	Background correction	The D2 lamp background correction capability at 1A is better than 30 times. The S-H background correction capability at 1.8A is better than 30 times. (only for WFX-110A/120A)
Hollow Cathode Lamps	Lamp turret	6-lamp turret (DW-AAS-110A/120A), 4-lamp turret (DW-AAS-130A) Auto-alignment, fully automated scan and peak-picking.
	Lamp current adjustment	Automatic adjustment and display. Wide pulse current: 0~25mA, Narrow pulse current: 0~10mA
	Lamp power supply mode	400Hz square wave pulse 100Hz Narrow square wave pulse + 400Hz wide square wave pulse (DW-AAS-110A/120A)
Optical System	Monochomator	Single beam, Czerny-Turner design grating monochromator
	Grating	1800 l/mm
	Focal length	277mm
	Blazed Wavelength	250nm
	Spectral Bandwidth	0.1nm, 0.2nm, 0.4nm, 1.2nm automatic change.
Flame Atomizer	Burner	10cm single slot all-titanium burner
	Spray chamber	Corrosion resistant all-plastic spray chamber.
	Nebulizer	High efficiency glass nebulizer with metal sleeve, sucking up rate: 6-7mL/min
	Emission burner	Provided with DW-AAS-110A/120A
Graphite Furnace	Temperature range	Room temperature~3000ºC
	Heating rate	2000℃/s
	Graphite tube dimensions	28mm (L) x 8mm (OD)
	Characteristic mass	Cd≤0.8 ×10^-12g, Cu≤5 ×10^-12g, Mo≤1×10^-11g
	Precision	Cd≤3%, Cu≤3%, Mo≤4%
Detection and Data Processing System	Detector	R928 Photomultiplier with high sensitivity and wide spectral range.
	Software	Windows operating system
	Analytical method	Working curve auto-fitting; standard addition method; automatic sensitivity correction; automatic calculation of concentration and content.
	Repeat times	Maximum 20 times of repeat measurement, automatic calculation of mean value, standard deviation and relative standard deviation.
	Multi-task function	Sequential measurement of multi-elements in one sample
	Condition reading	With model function
	Result printing	Measurement data and final analytical report printout, editing with Excel.
	Standard RS-232 serial port communication
Characteristic Concentration and Detection Limit	Normal Air-C2H2 flame	Cu: Characteristic concentration≤0.025mg/L, Detection limit≤0.006mg/L;
Characteristic Concentration and Detection Limit	Oxygen-rich Air-C2H2 flame	Ba: Characteristic concentration ≤ 0.22mg/L Al: Characteristic concentration ≤ 0.4mg/L (for WFX-110A)
Function Expansion	Hydride vapor generator can be connected for hydride analysis.
Dimensions and weight	1020 (L) × 490(W) × 540 (H) mm (main unit), unpacked 80kg 420 (L) × 420 (W) × 460 (H) mm (graphite furnace), unpacked 50kg
