1W/3W Laser Module for Laser Engraving Machine

FOB Price

US$ 2,100 - 3,200 / Unit

1 Unit(Min. Order)

Port Changchun
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNI		Place of Origin	Jilin, China
Model Number	EL-532

Product Description

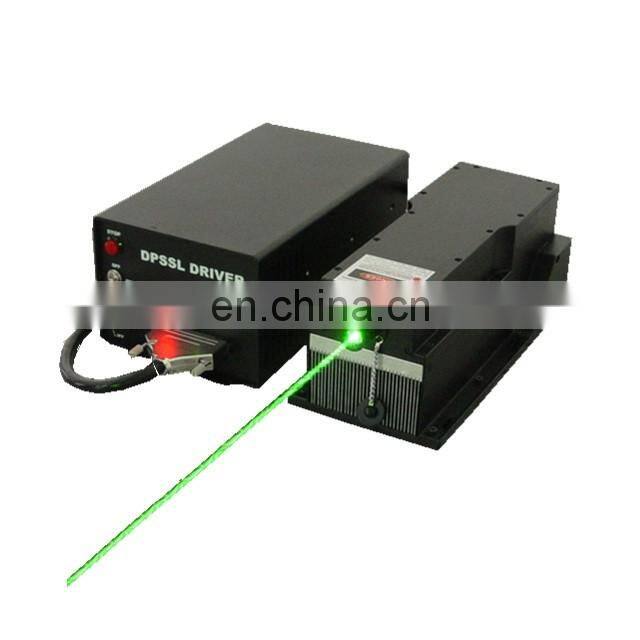

Laser module for laser engraving machine-EL-W-532

532nm laser source is the ideal choice for the laser marking machines which are applicable for the agricultural byproduct, such as fruit, eggs, vegetables.
532nm air cooled end pumped Q-switched DPSS laser has the following features: fully enclosed laser cavity design, in order to be no dust and frost; long lifetime to low down the failure rate which is suitable for industrial production environment; Good stability is good at continuous operation for 24 hours at room temperature; this design is convenient for integration and maintenance; short wavelength, small focused beam spot suitable for various precision working. These lasers are the ideal choice for the industries working.

Features

• Short wavelength, short pulse, excellent beam quality;

• High precision, high peak power;

• These lasers are ideal for applications in material processing, which can significantly reduce the thermal effect to achieve the perfect mark.

Application Industries:

• Agricultural byproducts: such as fruit, vegetable, egg;

• Precision mark on the surface of button and glass;

• Chip mark, PCB processing;

• LCD, IC, solar cell material processing and so on.

Specifications

Wavelength (nm)	532±1
Work pattern	Q-switched
Operating Temp. (℃)	10~35℃
Cooling-down method	Air-cooled
Expected lifetime (hours)	20000
Warranty	1 year
Pilot light	<3mW@650nm
Transverse mode	TEM00
Beam divergence, full angle (mrad)	<1.5mrad
Beam diameter at aperture	~1.5mm
Model	EL-532-1.5W		EL-532-2WEL-532-3W
Pulse width (ns)	~2ns		~5ns
Pulse repetition rate (kHz)	~10kHz		~25kHz
Power stability (rms, over 8 hours)	<3%		<1%, <3%
Beam height from base plate (mm)	68.5mm		84mm
Laser head size	257(L)×99(W)×94(H) mm3, 2. 6 kg		289(L)×112(W) ×108(H) mm3, 3.9kg
Power supply (90-264VAC) (optional)	PSU-N-LED Portable power supply PSU-AOW-S(2U) Cabinet type power supply		PSU-W-LED(B) Portable power supply PSU-AOM-S(2U) Cabinet type power supply
Peak power (kW)	~75kW	~20kW	~25kW
Average output power (W)	~1.5W	~2W	~3W

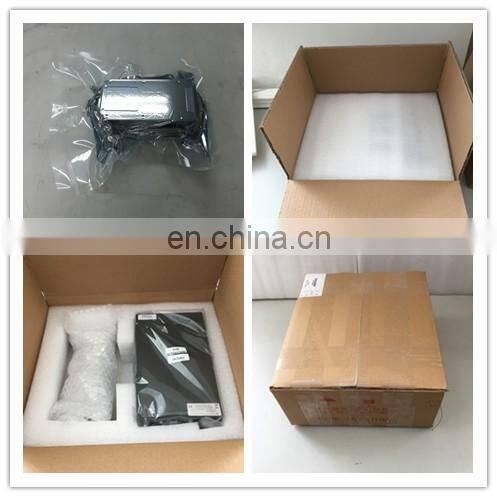

Packing & Delivery

Certifications

Packing & Delivery

FAQ

1. What about the delivery?

TNT UPS FEDEX DHL

2. What about the warranty?

For 1 year

3.How to pay?

T/T Western Union

4. How to visit our factory?

You can contact us by following ways to apply for visiting our factory:

（1） International Tel: +86-431-85603799

（2） Fax: +86-431-87020258

5. How to find more product of our company?

Search our web to find more products(including more contact way )
