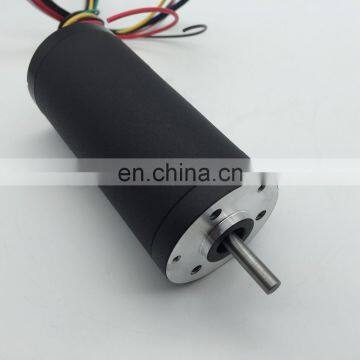

42RBL93 brushless dc motor, rated 6300rpm, 76w
- SHANGHAI
- T/T Credit Card
You May Like
-
size 80mm 24 v bldc motor ip54 ip56, rated 24volt 150w 200w 300w
-
86mm high torque 48v brushless dc motor48 vlot 1Nm upted2.5Nm, power 300w, 500w upto 770w
-
110BLS high torque big power brushless dc motor, 500 watt 1000 watt dc motor
-
O.D28mm high speed 6000rpm 8000rpm brushless dc motor 24v 12v option
-
48v 1000w brushless dc motor; 1000w 48v electric motor
-
80sw04-24v high torque 24 volt dc brushless motor, rated torque 2N.m, rated speed 3000rpm~4000rpm
Product Details
| Brand Name | SmartAutomation | Place of Origin | China | |
| Model Number | 42RBL93 | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | customed | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 24V | Output Power | 760w | |
| Continuous Current(A) | customed | Speed(RPM) | 6300rpm | |
| Commutation | Brushless |
Product Description
Winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max. radial force | 15N @ 10mm from the flange |
Max. axial force | 10N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩMin., 500VDC |
Technique specification:
Model | 42RBL30 | 42RBL60 | 42RBL85 | 42RBL93 |
Number of poles | 8 | 8 | 8 | 8 |
Number of phase | 3 | 3 | 3 | 3 |
Rated voltage VDC | 24 | 36 | 24 | 24 |
Rated speed RPM | 3500 | 4000 | 4000 | 6300 |
Continuous stall torque mN.m | 21.6 | 96 | 180 | 138 |
Rated torque mN.m | 18 | 80 | 150 | 115 |
Rated power W | 6.5 | 32 | 62 | 76 |
Peak torque mN.m | 60 | 240 | 450 | 500 |
Peak current A | 1.5 | 5 | 7.5 | 10 |
Line to line resistance ohms | 9.8 | 1.6 | 0.71 | 0.325 |
Line to line inductance mH | 7.5 | 1.94 | 0.86 | 0.36 |
Torque constant mNm/A | 48.7 | 38.5 | 38.6 | 28.7 |
Rotor inertia g.cm2 | 24 | 48 | 84 | 94 |
Body length mm | 30 | 60 | 85 | 93 |
Mass Kg | 0.25 | 0.4 | 0.7 | 0.8 |
..
