24V 2KW Electric Motor For Hydraulic Pump
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | ZD293A | |||
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24V | Output Power | 2.2KW | |
| Continuous Current(A) | Current | Speed(RPM) | 2750RPM | |
| Commutation | Brush |
Product Description

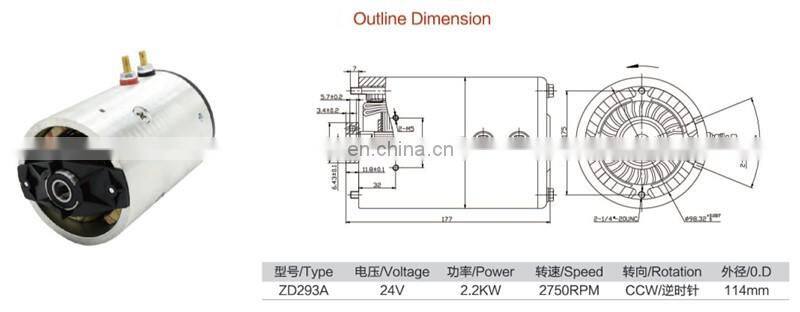

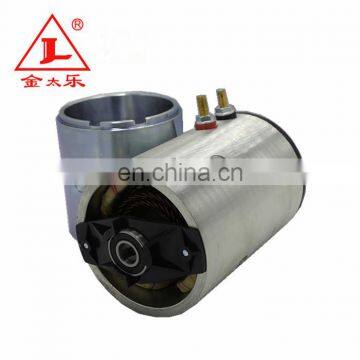

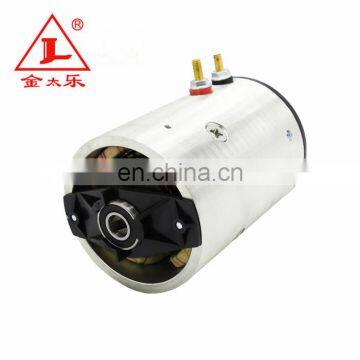

24V 2KW Electric Motor For Hydraulic Pump
Technical Data
Specification of 24V 2KW Electric Motor For Hydraulic Pump:
1) Type: ZD293A
2) Voltage: 24V
3) Power: 2.2KW
4) Speed: 2750PM
5) Rotation: CCW
6) O.D. : 114mm/4.5'
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 6N.m
11) Weight: 7.5KG
Features of 24V 2KW Electric Motor For Hydraulic Pump:
stable running, high efficiency, low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience
Welcome to inquire about 24V 2KW Electric Motor For Hydraulic Pump.
Type | Voltage | Power | Speed | Rotaion | O.D. |
ZDY1256 | 12V | 200W | 3000RPM | BI-DIRECTIONAL | 56mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3600RPM | CW | 80mm |
ZDY113S | 12V | 0.8KW | 3200RPM | CCW | 80mm |
M108XXN | 12V | 0.8KW | 3300RPM | CW | 80mm |
MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY118 | 12V | 1.2KW | 3200RPM | CW | 80mm |
W8923 | 12V | 1.4KW | 2220RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.4KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2300RPM | BI-DIRECTIONAL | 114mm |
W8901P | 12V | 1.5KW | 2220RPM | BI-DIRECTIONAL | 114mm |
ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm |
N1612C | 12V | 1.6KW | 2350RPM | CW | 114mm |
W5692 | 12V | 1.6KW | 2450RPM | CW | 114mm |
ZD193A | 12V | 1.6KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2350RPM | CCW | 114mm |
MD12160 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1223 | 12V | 1.6KW | 2350RPM | CW | 114mm |
ZD1200 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD1201 | 12V | 1.6KW | 2500RPM | CW | 114mm |
56363 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD193 | 12V | 1.6KW | 2600RPM | CW | 114mm |
ZD1240 | 12V | 1.6KW | 2350RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2650RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD12250 | 12V | 2.2KW | 2800RPM | CW | 114mm |
ZD1973BF | 12V | 3.0KW | 3000RPM | CCW | 127mm |
N2463 | 24V | 200KW | 3000RPM | BI-DIRECTIONAL | 63mm |
MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm |
ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm |
M208XXN | 24V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm |
ZDY211 | 24V | 0.8KW | 3600RPM | CW | 80mm |
ZD2480 | 24V | 0.8KW | 3000RPM | CCW | 130mm |
ZDY24800 | 24V | 0.8KW | 3200RPM | CCW | 80mm |
ZDY218 | 24V | 1.2KW | 3200RPM | CW | 80mm |
ZD2409A | 24V | 1.2KW | 2350RPM | BI-DIRECTIONAL | 126mm |
W9405 | 24V | 2.0KW | 2600RPM | CCW | 114mm |
W8950 | 24V | 2.0KW | 3300RPM | CCW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
N2024C | 24V | 2.0KW | 2700RPM | CW | 114mm |
ZD2930 | 24V | 2.0KW | 2600RPM | CW | 114mm |
MD24160 | 24V | 2.0KW | 2700RPM | CW | 114mm |
N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD293A | 24V | 2.2KW | 2750RPM | CCW | 114mm |
ZD2900 | 24V | 2.2KW | 2800RPM | CW | 114mm |
ZD2940 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD223AF | 24V | 2.2KW | 2600RPM | CCW | 114mm |
ZD24250 | 24V | 2.5KW | 3000RPM | CW | 114mm |
N3024 | 24V | 3.0KW | 3000RPM | CW | 127mm |
ZD2973BF | 24V | 3.0KW | 3000RPM | CCW | 127mm |
ZD2371 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973 | 24V | 4.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 4.0KW | 3100RPM | CW | 127mm |
XQD-3C | 24V | 4.0KW | 3100RPM | CW | 142mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZDY418 | 48V | 0.8KW | 3200RPM | CW | 80mm |
ZD4201A | 48V | 2.0KW | 2700RPM | CCW | 114mm |
QZD4842 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
ZDY618 | 60V | 0.8KW | 3200RPM | CW | 80mm |
ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm |
ZD7202 | 72V | 2.0KW | 2600RPM | CW | 114mm |
1,sample service: samples can be provided.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
