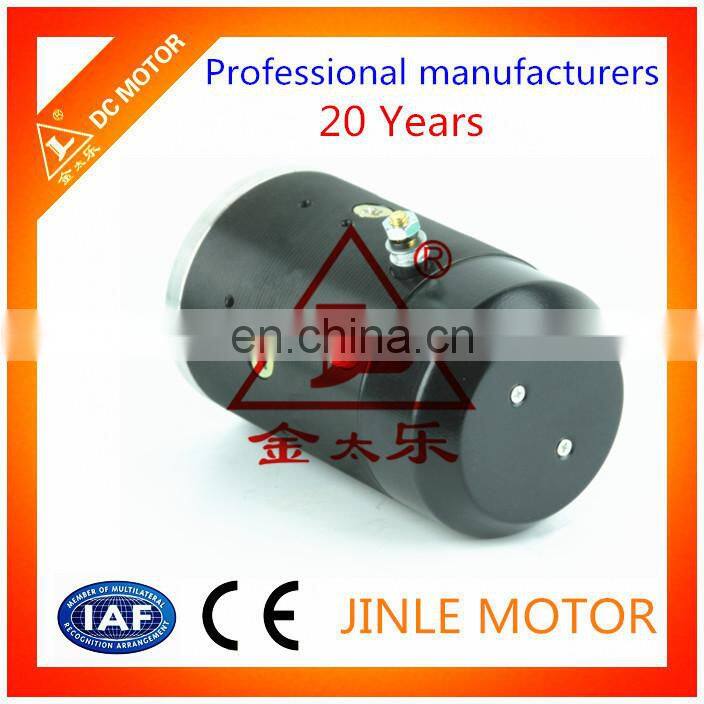

JINLE High Rpm 12v dc Electric Motor ZD1221
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | ZD1221 | Type | Micro Motor | |
| Certification | CE | Torque | 6N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 12V | Output Power | 2.0KW | |
| Continuous Current(A) | Current | Speed(RPM) | 2900RPM | |
| Commutation | Brush |
Product Description
12V 2.0KW Hydraulic Motor dc with CE
Features:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V, 60V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 20 years' manufacturing experience

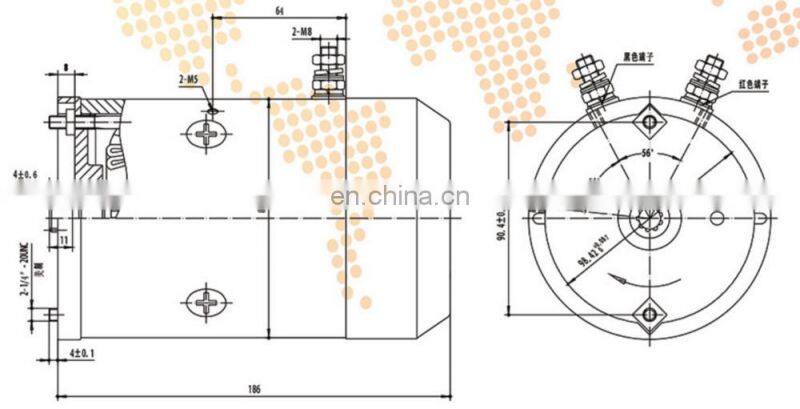

Specification:
1) Type: ZD1221
2) Voltage: 12V
3) Power: 2.0KW
4) Speed: 2900PM
5) Rotation: CW
6) O.D. : 114mm
7) Operating mode: S3
8) Insulation Class: F
9) Protection Degree: IP 54
10) Weigt: 7.5KG
11) Torque: 6N.m
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
Type | Voltage | Power | Speed | Rotaion | O.D. |
QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1,sample service: samples can provide preferential.
2,customized services: a variety of motors can be customized according to customer demand.
3, aftermarket service: according to consumer requirements, technical guidance on the use and other aspects. In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get th samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
