Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | XQD-3C | Type | Micro Motor | |
| Certification | CE | Torque | 15N.m | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | Other | |||
| Continuous Current(A) | 120A | Speed(RPM) | 3100RPM | |
| Commutation | Brush |
Product Description

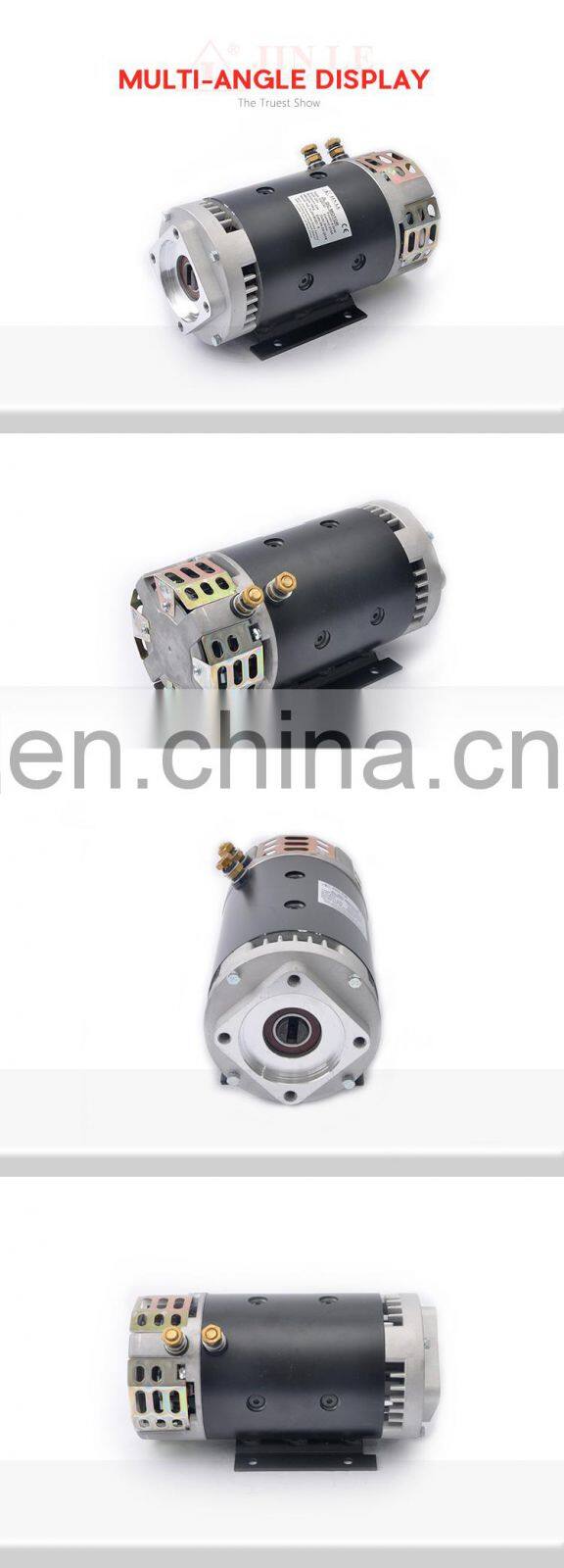

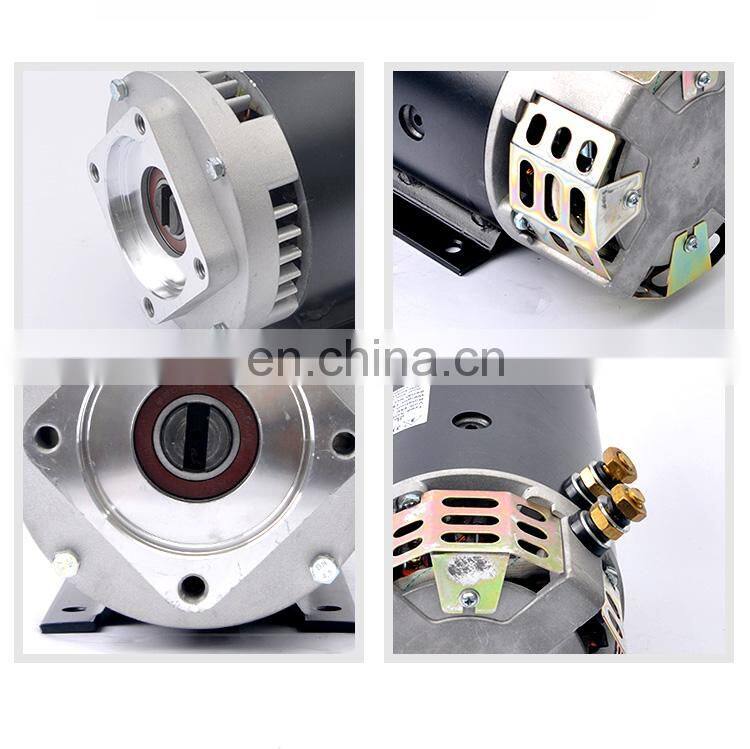

24 volt motor 4000w hydraulic dc motor with cw rotation
Features :
1.low noise,stable running
2.easy brush replacement
3.OEM service available 24 volt motor 4000w hydraulic dc motor with cw rotation
4.efficient and long continuous running time
5. Customization available
6.robust construction for long and reliable service life
7.100% copper wire 24 volt motor 4000w hydraulic dc motor with cw rotation
8.12V, 24V, 36V, 48V,60V,72V as per customers' option
9.Factory established in 1996 with nearly 20 years' manufacturing experience
1.Specification of 24 volt motor 4000w hydraulic dc motor with cw rotation :
| type | voltage | power | Speed | Rotation | O.D |
| XQD-3C | 24v | 4KW | 3100rpm | CW | 142MM |
Work duty : S2
Insulation class: H
Protection class: Ip54

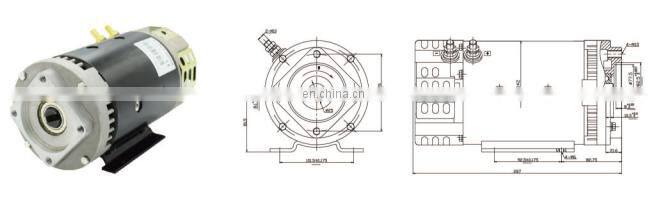

2.Drawings of 24 volt motor 4000w hydraulic dc motor with cw rotation

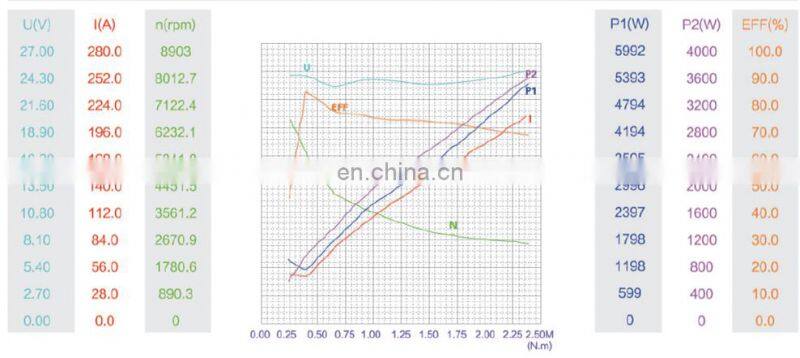

3.Parameters:
| Unload | Speed(n) | 5524(rpm) |
| Current(l) | 49.230(A) | |
| Max_Torque | Torque(M) | 13.020(N.m) |
| Current(I) | 212.750(A) | |
| Speed(n) | 2620(RPM) | |
| Eff | 68.20% | |
| Output Power(P2) | 3571.90(W) | |
| Max_Efficiency: | Eff | 84.69% |
| Speed(n) | 5524(RPM) | |
| Torque(M) | 1.750(N.m) | |
| Current(I) | 49.230(A) | |
| Output Power(P2) | 1009.90(W) | |
| Max_Pout: | Eff | 68.20% |
| Speed(n) | 2620(RPM) | |
| Torque(M) | 13.020(N.m) | |
| Current(I) | 212.750(A) | |
| Output Power(P2) | 3571.90(W) |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
24 volt motor 4000w hydraulic dc motor with cw rotation
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
24 volt motor 4000w hydraulic dc motor with cw rotation
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
