Home > Products > Hydraulic dc motors > 6N.m ZD1200 DC Motor 12V 1.6KW 2500RPM CW Rotation Brush DC Motor

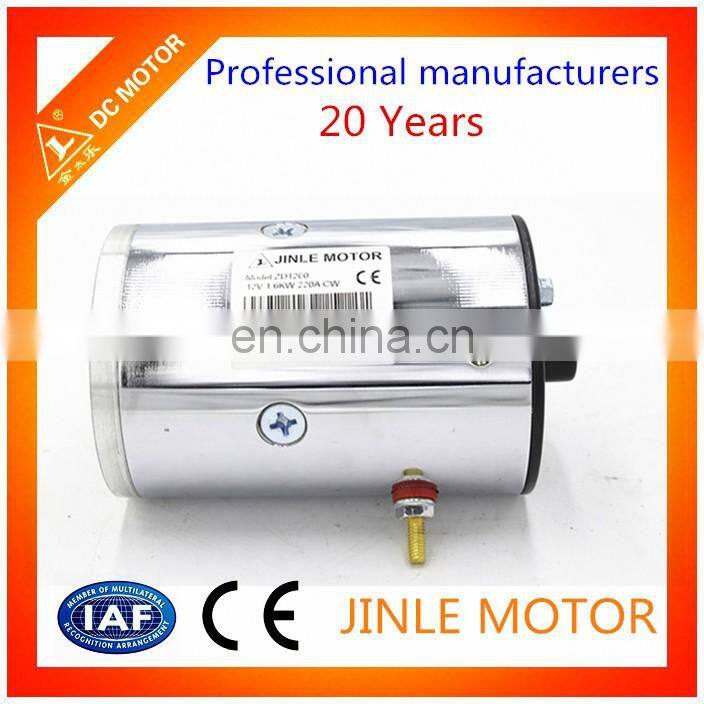

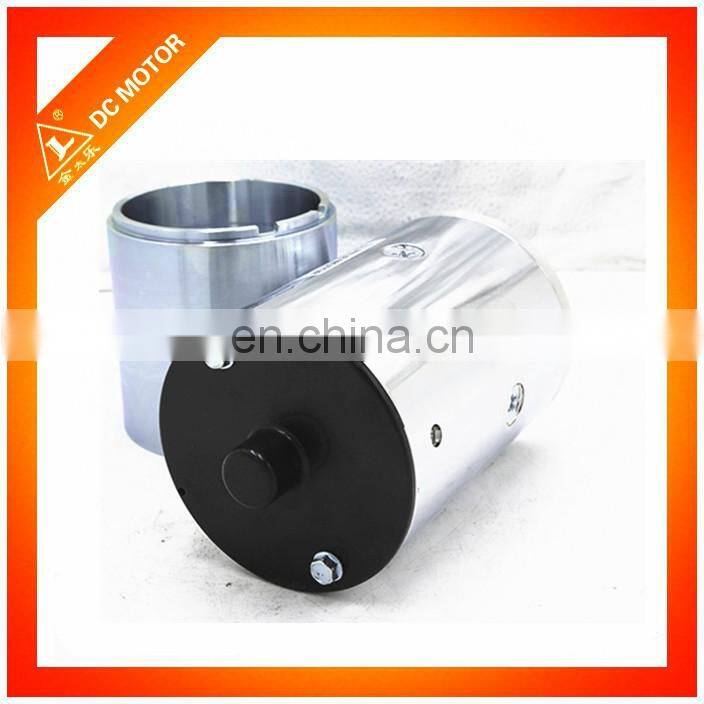

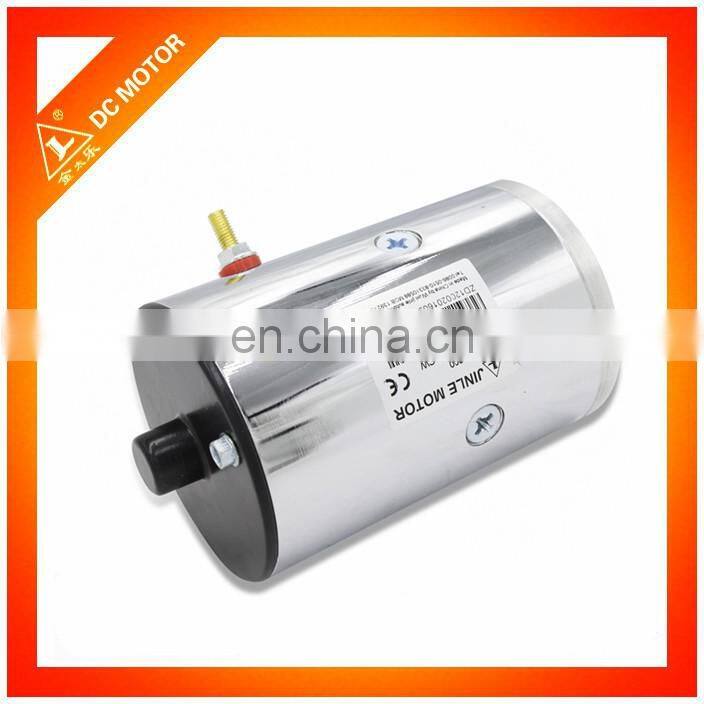

6N.m ZD1200 DC Motor 12V 1.6KW 2500RPM CW Rotation Brush DC Motor
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | ZD1200 | Type | Micro Motor | |
| Certification | CE | Torque | 6NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Continuous Current(A) | 120A | Speed(RPM) | 2500RPM | |
| Commutation | Brush |
Product Description
6N.m ZD1200 DC Motor 12V 1.6KW 2500RPM CW Rotation Brush DC Motor
Specifications of 6N.m ZD1200 DC Motor 12V 1.6KW 2500RPM CW Rotation Brush DC Motor
1. Type: ZD1200
2. Voltage: 12V
3. Power: 1.6KW
4. Speed: 2500RPM
5. Rotation: CW
6. O.D. : 114mm/4.5'
7. Insulation: F
8. Protection Class: IP54
9. Operation Mode: S3
10. Color: Customized
Features of 6N.m ZD1200 DC Motor 12V 1.6KW 2500RPM CW Rotation Brush DC Motor
stable running
high efficiency
low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Customized color and package is accepted!
Supply for OEM Production!
nearly 20 years' manufacturing experience
We are OEM manufacturer of WAI Group!
| 1259 | 12V | 50W | 500RPM | CW | 56mm | 0.5N.m | S2 |
| N2463 | 24V | 200W | 3000RPM | BI-DIRECTIONAL | 63mm | 1N.m | S1 |
| ZDY1256 | 12V | 200W | 3000RPM | BI-DIRECTIONAL | 56mm | 1N.m | S3 |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm | 2N.m | S3 |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm | 2N.m | S3 |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm | 2N.m | S3 |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm | 2N.m | S3 |
| ZDY118 | 12V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY218 | 24V | 1.2KW | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY418 | 48V | 800W | 3000RPM | CW | 80mm | 2N.m | S3 |
| ZDY618 | 60V | 800W | 3000RPM | CW | 80mm | 2N.m | S3 |
| MA08XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| MB08XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| M108XXN | 12V | 0.8KW | 3200RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| M208XXN | 24V | 0.8KW | 3000RPM | BI-DIRECTIONAL | 80mm | 2N.m | S3 |
| ZDY211S | 24V | 0.8KW | 3100RPM | CCW | 80mm | 2N.m | S3 |
| ZDY113S | 12V | 0.8KW | 3200RPM | CCW | 80mm | 2N.m | S3 |
| ZDY24800 | 24V | 800W | 3200RPM | CCW | 80mm | 2N.m | S3 |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm | 6N.m | S3 |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD4201A | 48V | 2.0KW | 2700RPM | CCW | 114mm | 6N.m | S3 |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm | 6N.m | S3 |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm | 6N.m | S3 |
| ZD2900 | 24V | 2.2KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD223AF | 24V | 2.2KW | 2600RPM | CCW | 114mm | 6N.m | S3 |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm | 6N.m | S3 |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm | 6N.m | S3 |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm | 6N.m | S3 |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm | 6N.m | S3 |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm | 6N.m | S3 |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm | 6N.m | S3 |
| N1612 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N2024 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1230 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2420 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD6202 | 60V | 2.0KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| ZD7202 | 72V | 2KW | 2600RPM | CW | 114mm | 6N.m | S3 |
| MD12160 | 12V | 1.6KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| MD24160 | 24V | 2.0KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1241 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2941 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| 56363 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N1612C | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| N2024C | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| W8901P | 12V | 1.5KW | 2220RPM | CW | 114mm | 6N.m | S3 |
| ZD1240 | 12V | 1.6KW | 2350RPM | CW | 114mm | 6N.m | S3 |
| ZD2940 | 24V | 2.2KW | 2700RPM | CW | 114mm | 6N.m | S3 |
| ZD1200 | 12V | 1.5KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD1201 | 12V | 1.6KW | 2500RPM | CW | 114mm | 6N.m | S3 |
| ZD12250 | 12V | 2.2KW | 2800RPM | CW | 114mm | 6N.m | S3 |
| ZD24250 | 24V | 2.5KW | 3000RPM | CW | 114mm | 6N.m | S3 |
Other models you maybe interested in:
You can click on the picture then have a detailed description:
Permanent Magnet Motors Direct drive motors:
pallet truck hydraulic power units : vechicle tail gate power unit
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
