Home > Products > Hydraulic dc motors > 24v 1kw permanent magnet motor dc

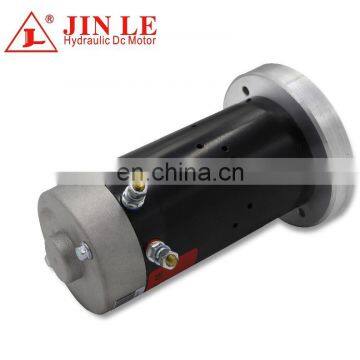

24v 1kw permanent magnet motor dc
- 1000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Brand Name | Jinle | Place of Origin | Jiangsu, China | |
| Model Number | IM208 | Type | Micro Motor | |
| Certification | CE | Torque | 6NM | |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24v | Output Power | 1kw | |
| Continuous Current(A) | 120A | Speed(RPM) | 3600RPM | |
| Commutation | Brush |
Product Description
24v 1kw permanent magnet motor dc
We will attend HANNOVER MESSE in 2017 in German, BOOTH No HALL020,A30-19 . From April 24th-28th.
Welcome your visit!
Type | IM208 |
Voltage | 24V |
Power | 800W highest 1kw |
Speed | 3600RPM |
Rotation | cw or ccw |
O.D. | 80mm |
Operating Mode | S3 |
Effiency | IE2 |
Weight | 3.5KG |
Insulation | F |
Protection Class | IP54 |
OHTER TYPES
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
| W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
| ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
| ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
| ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
| ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
| ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
| ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
| ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
| ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
| ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
| ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
| XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| W8799 | 12V | 1.5KW | 2400RPM | CCW | 114mm |
| W8935 | 12V | 1.5KW | 2460RPM | CCW | 114mm |
| W8950 | 24V | 2KW | 2600RPM | CCW | 114mm |
| W8999 | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| W9405 | 24V | 1.5KW | 2400RPM | CCW | 114mm |
| ZD193A | 12V | 1.6KW | 2500RPM | CCW | 114mm |
| ZD223A | 24V | 2.2KW | 2700RPM | CCW | 114mm |
| ZD293A | 24V | 2.2KW | 3000RPM | CCW | 114mm |
| Type | Voltage | Power | Speed | Rotaion | O.D. |
| QZD2402 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2409 | 24V | 0.9KW | 2150RPM | BI-DIRECTIONAL | 126mm |
| QZD2411 | 24V | 1.1KW | 2160RPM | BI-DIRECTIONAL | 127mm |
| QZD2412 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2422 | 24V | 2.2KW | 1750RPM | BI-DIRECTIONAL | 164mm |
| QZD2445 | 24V | 4.5KW | 1750RPM | BI-DIRECTIONAL | 180mm |
| QZD4840 | 48V | 4.8KW | 1750RPM | BI-DIRECTIONAL | 218mm |
| QZD4841 | 48V | 4.0KW | 2030RPM | BI-DIRECTIONAL | 170mm |
| W8923 | 12V | 1.4KW | 2250RPM | BI-DIRECTIONAL | 114mm |
| W8930B | 12V | 1.5KW | 2380RPM | BI-DIRECTIONAL | 114mm |
| W8941 | 12V | 1.5KW | 2400RPM | BI-DIRECTIONAL | 114mm |
| W9144 | 12V | 1.5KW | 2150RPM | BI-DIRECTIONAL | 114mm |
| W7923 | 12V | 1.2KW | 1700RPM | BI-DIRECTIONAL | 114mm |
1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time
5) Customization available
6) Robust construction for long and reliable service life
7) 100% copper wire
8) 12V, 24V, 36V, 48V,60V,72V as per customers' option
9) Factory established in 1996 with nearly 20 years' manufacturing experience
Our factory was established in 1996, professional in forklift motors, hydraulic power unit motors.
1. Business Type
a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops
2. Certificates
CE, ISO9001 etc
3. How long could we get the goods?
a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders
4. Quality Control
a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
