Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | BMM732 | Type | Micro Motor | |
| Certification | CCC, ROHS | Torque | 0.025 N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 0.6 A | Speed(RPM) | 4000 rpm | |
| Commutation | Brushless |
Product Description
OUR PRODUCTS |

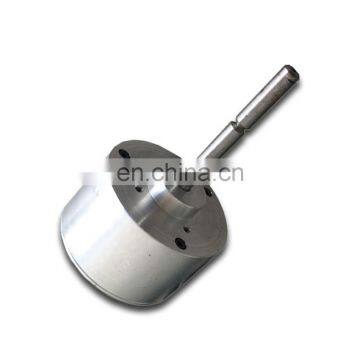

Product:brushless dc electric motor 24v bldc motor
Product Application: medical equipment, Air cleaner etc.
SPECIFICATIONS |
VOLTAGE (VDC) | NO LOAD | RATED LOAD | TORQUE (Nm) | Cogging Torque (Nm) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Power (W) | LENGTH (mm) | |||
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||||
BMM732 | 24 | 0.12 | 4801 | 0.61 | 4000 | 0.025 | 0.005 | 0.027 | 0.051 | 10 | 33 |
PERFORMANCE CURVE |
OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power | | | | | | |
| BMM705 | BMM727 | BMM728 | MM731 | BMM733 | BMM770 |
Similar Speed | | | | |||
| BMM704 | BMM706 | BMM715 | BMM716 | BMM717 | BMM727 |
| | | ||||
| BMM734 | BMM735 | MM741 | BMM742 | BMM743 | BMM747 |
| ||||||
| BMM754 | BMM755 |
|
|
|
|
Similar Torque | ||||||
| BMM705 | BMM727 | BMM728 | MM731 | BMM733 | BMM770 |
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
