150mm2 Cable 150mm 1*35mm2 Electric Wire

FOB Price

US$ 0.3 - 5 / Meter

100 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power

plant, householdelectrical applance,insurment and telecommunication equipment.

Conductor Nominal Section ( mm2)	Conductive Core	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)		20oC Conductor Resistance≤(Ω/km)		Reference Weight(kg/km)

	Number/Diameter of Core(mm)		Min	Max			YH	YHF

10	322/0.20	1.8	7.5	9.7	146	153.51	146	153.51
16	513/0.20	2	9.2	11.5	218.9	230.44	218.9	230.44
25	798/0.20	2	10.5	13	316.6	331.15	316.6	331.15
35	1121/0.20	2	11.5	14.5	426	439.87	426	439.87
50	1596/0.20	2.2	13.5	17	592.47	610.55	592.47	610.55
70	2214/0.20	2.4	15	19.5	790	817.52	790	817.52
95	2997/0.20	2.6	17	22	1066.17	1102.97	1066.17	1102.97
120	1702/0.30	2.8	19	24	1348.25	1392.55	1348.25	1392.55
150	2135/0.30	3	21	27	1678.5	1698.72	1648.5	1698.72
185	1443/0.40	3.2	22	29	1983.8	2020.74	1983.8	2020.74

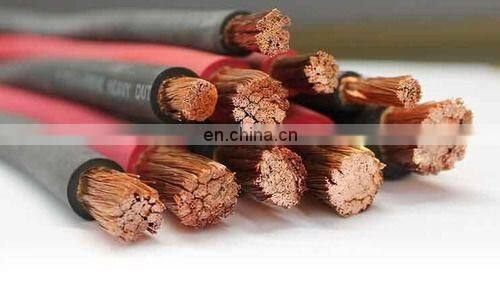

Product Pictures
