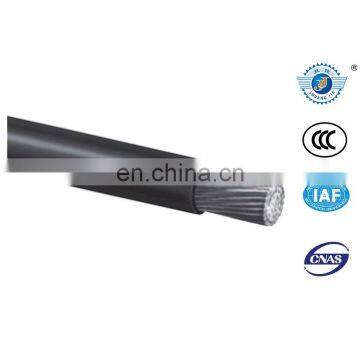

Solar Cable
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | 8AWG-1000Kcmil | Type | Low Voltage | |
| Application | Other | Insulation Material | XLPE | |
| Conductor Material | Aluminum |
Product Description
Color:
size 14--6AWG: black, white, red, green, yellow, blue
4AWG and larger: black
Standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
UL44. conductor type RHH/RHW-2/USE-2
Application:
fixed installation, home appliance, lighting equipment, construction and aviation engine room with voltage up to 450/750V
- RHH, RHW and USE-2 may be installed in conduit and other recognized raceways for control and power in residential and commercial buildings, industrial plants and substations
- USE-2 may be directly buried as underground service entrance cable at conductor temperatures not to exceed 90°C
- When used as RHH, conductor temperatures shall not exceed 90°C in dry locations
- When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations
- RHH, RHW-2 and USE-2 conductors are rated 600V
Service conditions and parameters:
long term working temperature : 70°C or 90°C
installation temperature : > 0°C
max bending radius: > 4 times D
structure technical parameter
AWG RHH/RHW-2/USE-2 WIRE SPECIFICATION
| SIZE AWG MCM | CROSS SECTION AL mm2 | STRANDING number of wire x diametre mm | INSULATION THICKNESS mm | EXTERNAL DIAMETER mm | TOTAL WEIGHT KG/KM |
| 20 | 0.52 | 1×0.813 | 0.76 | 2.33 | 9.81 |
| 18 | 0.82 | 1×1.02 | 0.76 | 2.54 | 13.16 |
| 16 | 1.31 | 1×1.29 | 0.76 | 2.81 | 18.1 |
| 14 | 2.08 | 1×1.63 | 0.76 | 3.15 | 26.1 |
| 12 | 3.31 | 1×2.05 | 0.76 | 3.57 | 38.3 |
| 10 | 5.26 | 1×2.59 | 0.76 | 4.11 | 57.4 |
| 8 | 8.34 | 1×3.26 | 1.14 | 5.54 | 95.2 |
| 14 | 2.08 | 7×0.62 | 0.76 | 3.38 | 27.8 |
| 12 | 3.31 | 7×0.78 | 0.76 | 3.86 | 40.1 |
| 10 | 5.26 | 7×0.98 | 0.76 | 4.46 | 59.9 |
| 8 | 8.37 | 7×1.23 | 1.14 | 5.97 | 105.2 |
| 6 | 13.3 | 7×1.55 | 1.52 | 7.69 | 170.4 |
| 4 | 21.15 | 7×1.96 | 1.52 | 8.92 | 255.5 |
| 2 | 33.62 | 7×2.47 | 1.52 | 10.45 | 388.9 |
| 1 | 42.36 | 7×2.78 | 2.03 | 12.4 | 482.9 |
| 1/0 | 53.49 | 19×1.89 | 2.03 | 13.51 | 621 |
| 2/0 | 67.43 | 19×2.12 | 2.03 | 14.66 | 778 |
| 3/0 | 85.01 | 19×2.39 | 2.03 | 16.01 | 934 |
| 4/0 | 107.2 | 19×2.68 | 2.03 | 17.46 | 1159 |
| 250 | 127 | 37×2.09 | 2.41 | 19.45 | 1368 |
| 300 | 152 | 37×2.29 | 2.41 | 20.85 | 1623 |
| 350 | 177 | 37×2.47 | 2.41 | 22.11 | 1876 |
| 400 | 203 | 37×2.64 | 2.41 | 23.3 | 2128 |
| 500 | 253 | 37×2.95 | 2.41 | 25.47 | 2631 |
| 600 | 304 | 37×3.23 | 2.79 | 28.19 | 3174 |
| 650 | 329 | 37×3.37 | 2.79 | 29.17 | 3345 |
| 700 | 355 | 37×3.49 | 2.79 | 30.01 | 3609 |
