Home > Products > Power cable > ZR YJV Cable
ZR YJV Cable
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | ZRVLV | Type | High Voltage | |
| Application | Railway | Insulation Material | PVC | |
| Jacket | PVC | Conductor Material | Copper |
Product Description

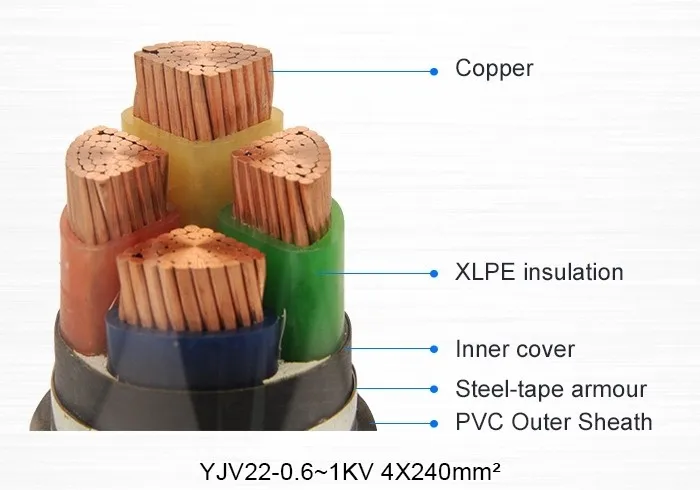

Low voltage XLPE cable is a kind of cable suitable for distribution network and other fields.It has simple structure, light weight, good heat resistance, strong load capacity, no melting, chemical corrosion resistance, high mechanical strength;
Product features:
1. Heat resistance: The mesh XLPE has excellent heat resistance.Does not decompose under 200 °C and carbonization, long-term working temperature is 90 °C, hot life up to 40 years.
2. Insulation performance: XLPE maintains the good insulation characteristics of PE, and the insulation resistance further increases.The tangent of dielectric loss Angle is very small, and it is not affected by temperature.
3. Mechanical properties: The hardness, stiffness, abrasion resistance and impact resistance of XLPE are improved due to the establishment of new chemical bonds between macromolecules, thus making up for the vulnerability of PE to environmental stress and cracking.
4. Chemical resistance: XLPE has strong acid and alkali resistance and oil resistance, and its combustion products are mainly water and carbon dioxide, which are less harmful to the environment and meet the requirements of modern fire safety.
Technical Datas :
1. Bending dadius:
Bending radius of single core cable is 20 (d+D) ±5%
Bending radius of multi-core cable is 15 (d+D) ±5%.
D=Aetual outer diameter of cable sample (mm)
d=Aetual diameter of the comductor (mm)
2. Installation temperature:
It should be heated where ambient temperature is below 0°C
3. Lever difference of cable installation:
Not restricted by the difference of level along the route.

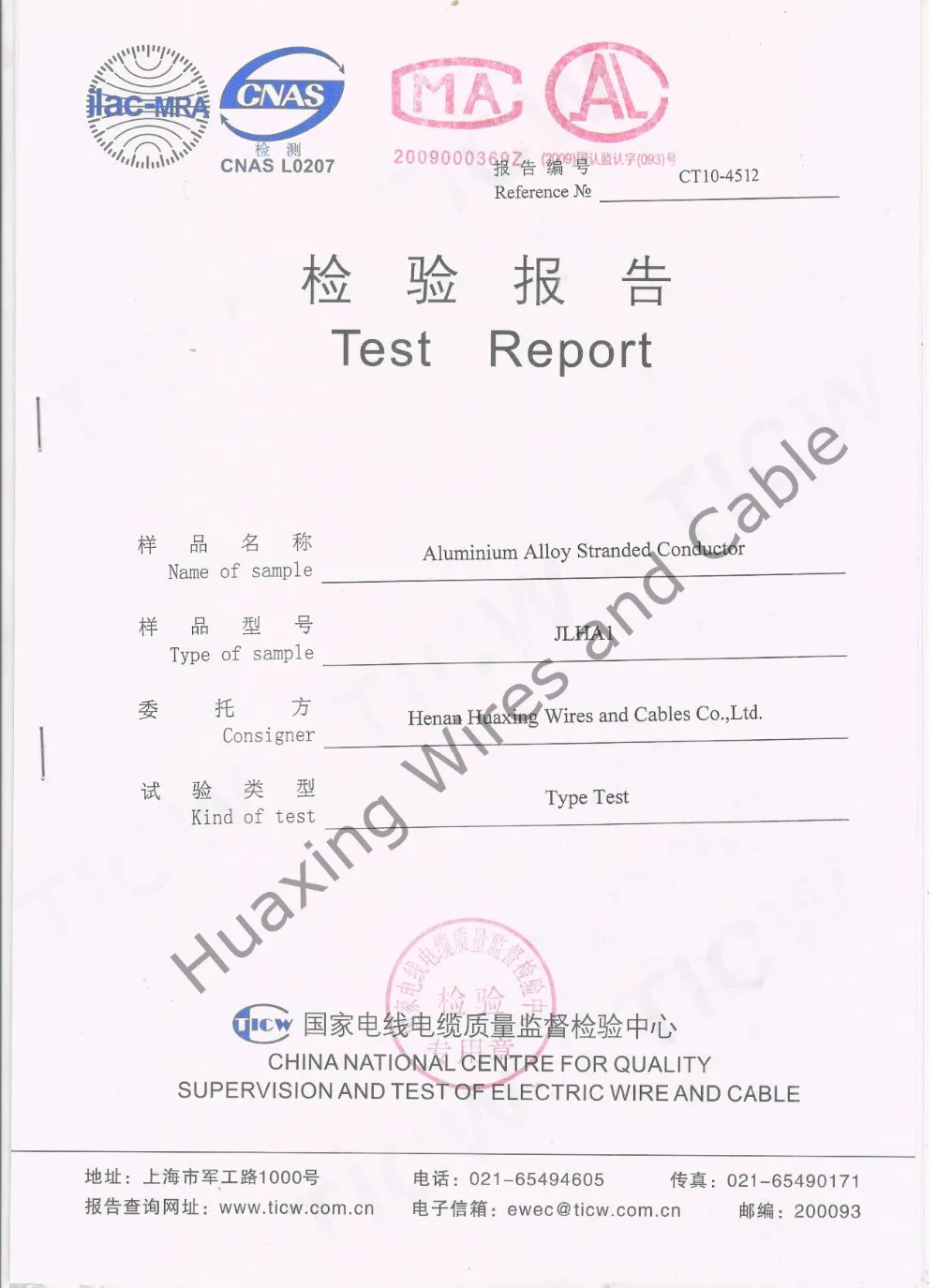

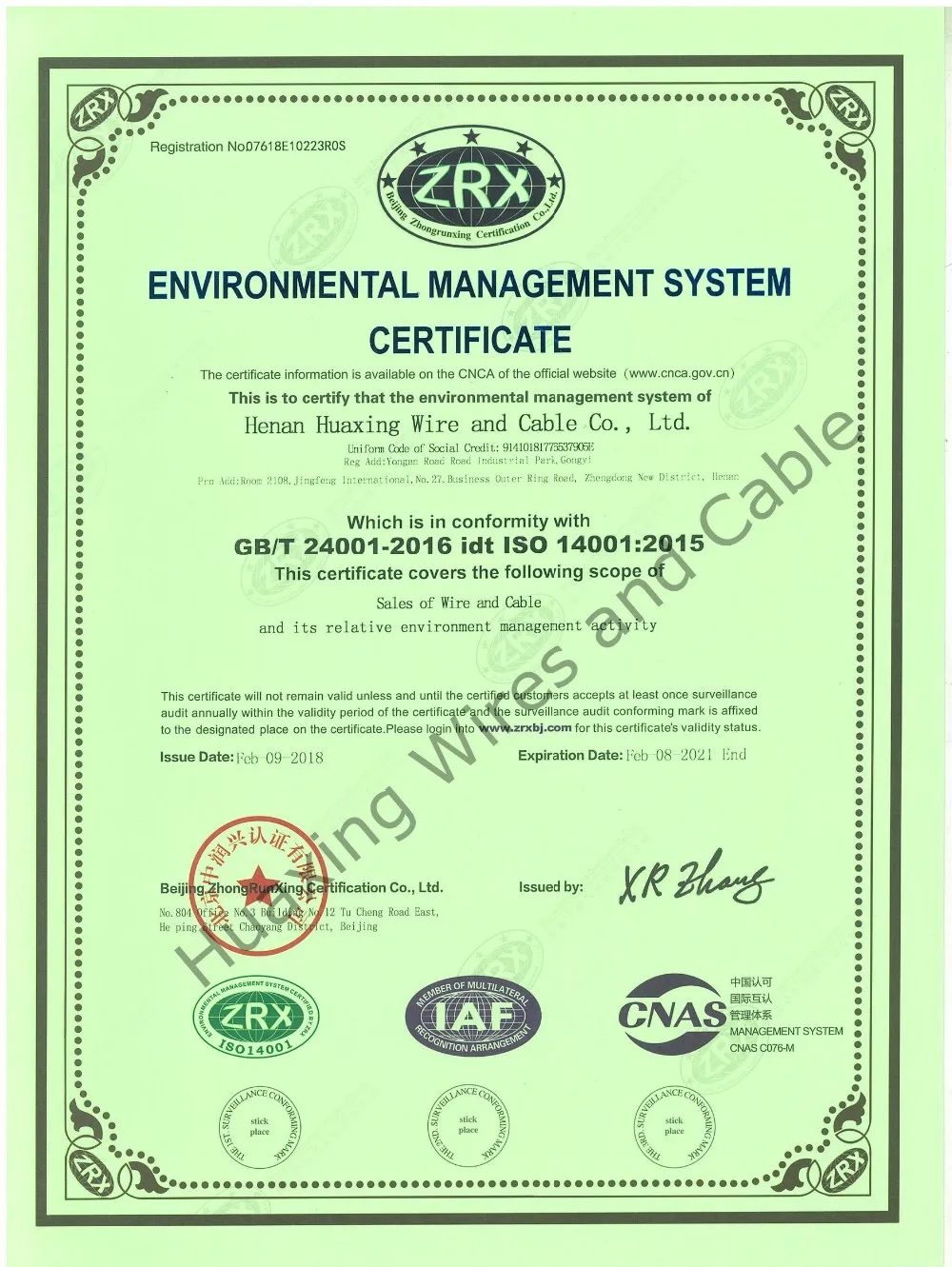

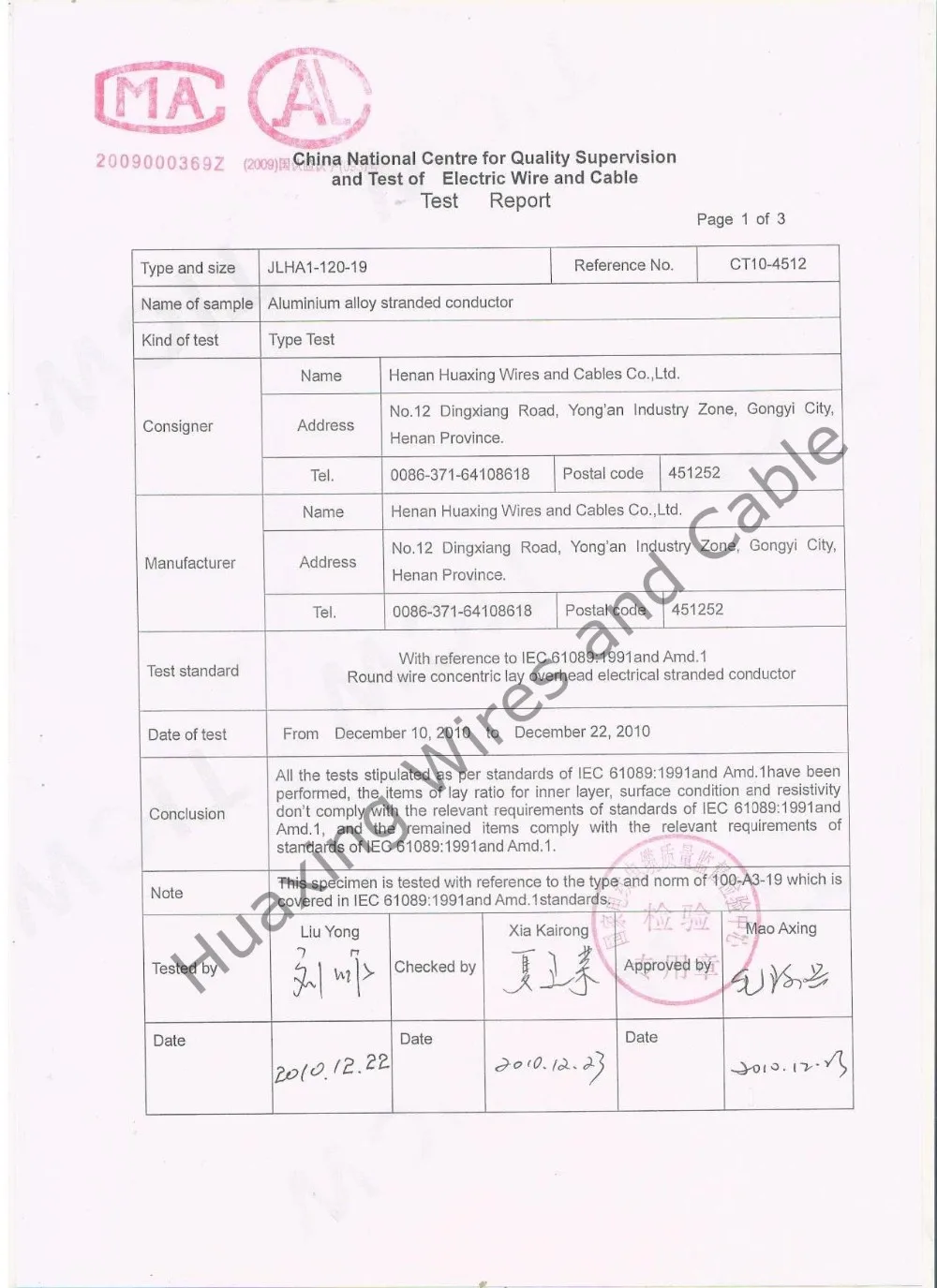

We has owned ISO9001,14001,18001 Internation Quality Certificate ,Environmental Health and Safety Management System Certificate ;CCC certificate for China Compulsory Product Certicate ,Ul Certificate for Solar Cable and SO on ;




Henan Huaxing Wires and Cables CO.,lTD is an ISO9001/14001/18001 ,CCC certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .

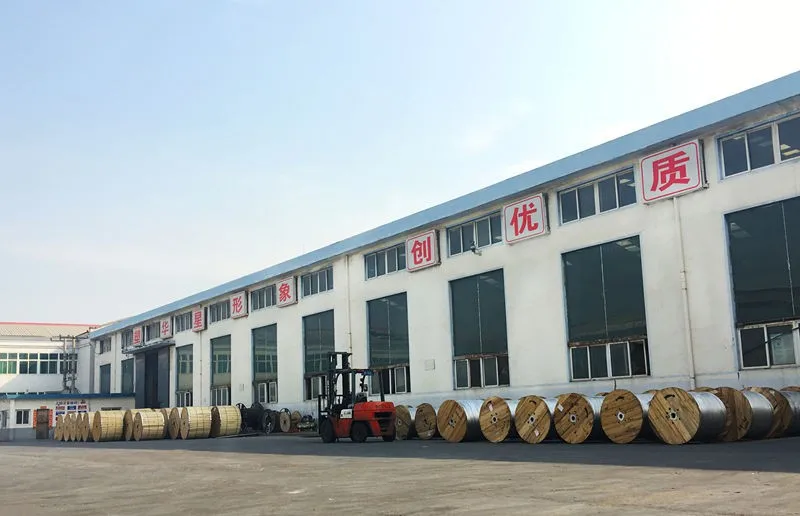

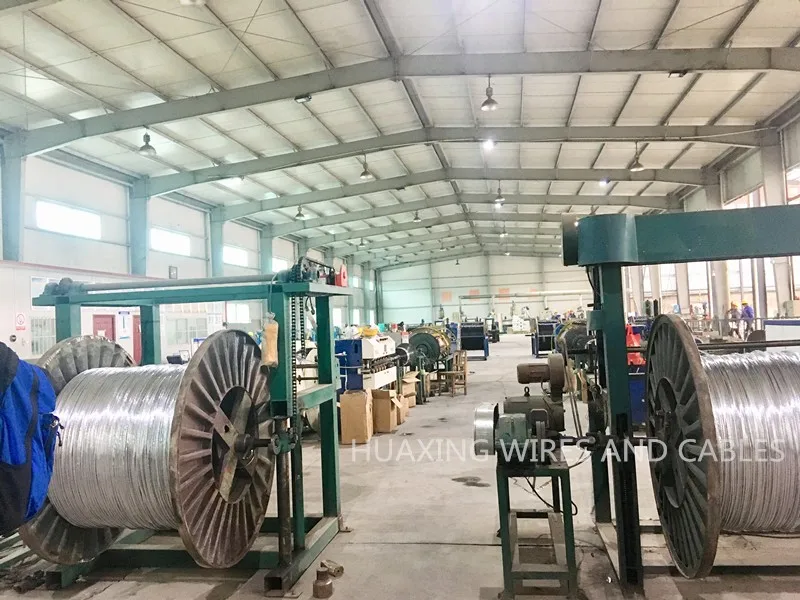

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000 m2, building area is about 28,000 m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long-term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us;
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;


1.Packing :Standard Export Packing ;
2.Packing Drum: Plastic Drum /Wooden Drum/Wooden-Steel Drum /Steel Drum
3.Packing Length : Standard Lengh or as required
