AAC DIN 48201 Standard 300mm2/400mm2/500mm2/600mm2/100mm2 AAC
- Qingdao
- T/T Credit Card
You May Like
-
25kv 3Layer ACSR/AAAC/AAC CABLE TREE WIRE SAC CABLE
-
25KV AAC Cable 3 LAYER SAC CABLE
-
15kv 3Layer AAAC/XLPE Cable Tree Wire Middle Votale Sac Cable
-
AAC 16MM2/25MM2/50MM2/70MM2/95MM2/120MM2/150MM2
-
Low Votage Power Cable 0.6/1kv YJV/YJLV/VV/VLV Cable
-
Low Votage Power Cable 0.6/1kv YJV/YJLV/VV/VLV Cable
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | AAAC AAC ACSR | Type | Low Voltage | |
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description
Application
The aluminum overhead conductors are suitable for use in spans on wood poles, transmission towers,and other structures where tensile strength and temperature ratings are not required. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
Construction:
Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer. Outer layer is right hand lay and reversed in successive layers. AAC(All aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handing during installation and use of simpler fittings. The overhead transmissionconductor is corrosion resistant due to its homogeneous construction.
AAC DIN 48201 standard
| code Number | Calculated Cross Section | No./Dia.of Stranding Wire | Overall Diameter | Linear Mass | Calculated Breaking Load | Max.D.C. Resistance at 20ºC |
| mm² | mm² | mm | mm | kg/km | daN | Ω/km |
| 16 | 15.89 | 7/1.70 | 5.1 | 44 | 290 | 1.8018 |
| 25 | 24.25 | 7/2.10 | 6.3 | 67 | 425 | 1.1808 |
| 35 | 34.36 | 7/2.50 | 7.5 | 94 | 585 | 0.8332 |
| 50 | 49.48 | 7/3.00 | 9 | 135 | 810 | 0.5786 |
| 50 | 48.36 | 19/1.80 | 9 | 133 | 860 | 0.595 |
| 70 | 65.82 | 19/2.10 | 10.5 | 181 | 1150 | 0.4371 |
| 95 | 93.27 | 19/2.50 | 12.5 | 256 | 1595 | 0.3084 |
| 120 | 117 | 19/2.80 | 14 | 322 | 1910 | 0.2459 |
| 150 | 147.1 | 37/2.25 | 15.2 | 406 | 2570 | 0.196 |
| 185 | 181.6 | 37/2.50 | 17.5 | 501 | 3105 | 0.1587 |
| 240 | 242.54 | 61/2.25 | 20.2 | 670 | 4015 | 0.1191 |
| 300 | 299.43 | 61/2.50 | 22.5 | 827 | 4850 | 0.0965 |
| 400 | 400.14 | 61/2.89 | 26 | 1105 | 6190 | 0.0722 |
| 500 | 499.83 | 61/3.23 | 29.1 | 1381 | 7600 | 0.0578 |
| 625 | 626.2 | 91/2.96 | 32.6 | 1733 | 9690 | 0.04625 |
| 800 | 802.1 | 91/3.35 | 36.8 | 2219 | 12055 | 0.0361 |
| 1000 | 999.71 | 91/3.74 | 41.1 | 2766 | 14845 | 0.029 |

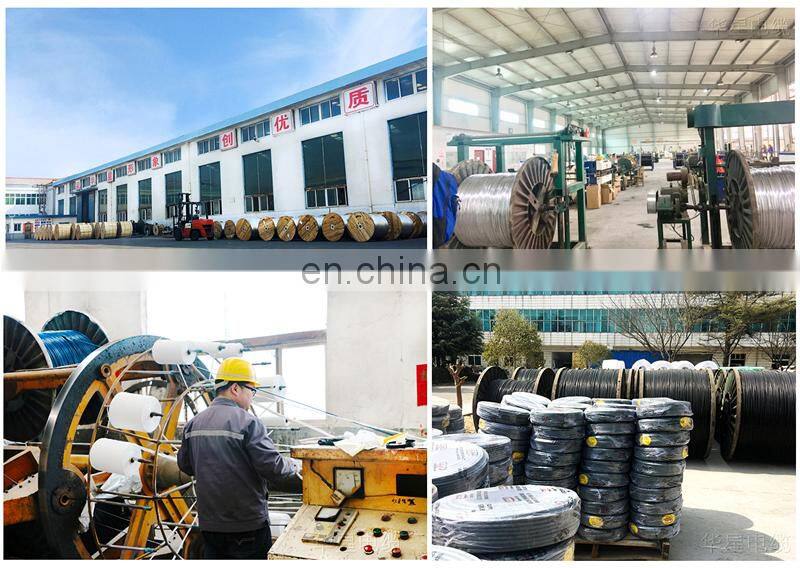

Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees ,our products have exported to more than 50 countries.
We are the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
