ABC Cable Service Drop Cable 50mm2
- Qingdao
- T/T Credit Card
You May Like
-
Underground Secondary Distribution Cable Sweetbriar URD Cable UD Cable
-
Triplex 4/0 Sweetbriar URD Cable
-
Underground Secondary Distribution Cable Triplex 4/0 URD Cable
-
GOST 15150 XLPE Insulated Wire Cable SIP 2
-
Self Supporting Bundle Assembled XLPE Insulated Cable 0.6/1 kV SIP2
-
XLPE /PE Insulated Aluminum Conductor Aerial Bundled ABC Cable Malaysia Size
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | ABC Cable 2x50+1x50mm2 | Application | Overhead secondary power distribution | |
| Jacket | PVC | Conductor Material | Aluminum | |
| Number of Conductors | Single | Insulation Material | PVC |
Product Description

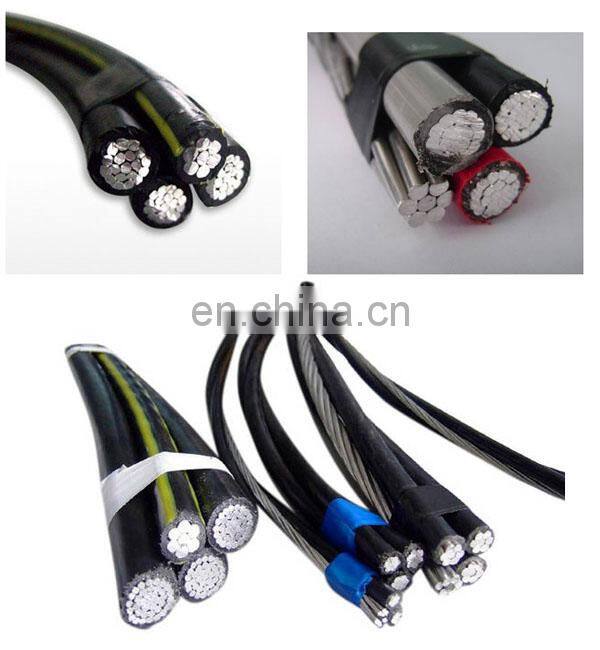

Service Drop Cable ABC Cable 2X50+50mm2 600V
STANDARD: IEC228 IEC209 IEC60502
Application: extensively used in overhead secondary power transmission line, improving the safety and reliance of electrified wire netting.
XLP insulated aerial cable
Aluminium stranded conductor(compacted or non- compacted),
AAAC messenger core(or ACSR messenger core),
XLPE(or HDPE) insulated, Twisted (or Parallel)power cable
SPEC mm2 | conductor structure | Approx. | ||||||
Phase | Neutral(Bare ACSR) | insulation | insulation | Overall | Approx. | packing | ||
(Compacted AL) | Aluminium | Steel | material | Thickness | Diameter | Weight | Meters Per | |
(No./mm) | (No./mm) | (No./mm) | (mm) | (mm) | (kg/km) | Drum | ||
1x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
1x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000m | |
1x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
1x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 20.1 | 333.9 | 250-3000m | |
1x70+1x70 | 19/2.15 | 12/2.15 | 17/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
1x95+1x95 | 19/2.54 | 12/5.24 | 17/5.24 | 1.6 | 27.6 | 528.2 | 250-3000m | |
2x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | (HDPE) | 1.2 | 14.2 | 187.6 | 250-4000m |
2x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
2x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
2x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 22.5 | 506 | 250-3000m | |
2x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
2x95+1x95 | 19/2.54 | 12/5.24 | 7/5.24 | 1.6 | 30.5 | 850.9 | 250-3000m | |
3x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 16.3 | 253.3 | 250-3500m | |
3x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 19.1 | 371.9 | 250-3500m | |
3x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 22.5 | 519.1 | 250-3000m | |
3x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 25.7 | 678.1 | 250-3000m | |
3x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 29.7 | 1024.3 | 250-3000m | |
2x95+1x95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 34.6 | 1413.7 | 250-3000m | |
