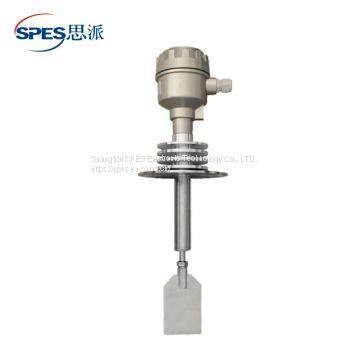

Sus Flange Screw Rotary Paddle Level Switch
- 2000 Piece / Pieces per Month
- Shanghai
- T/T
- 5 days
You May Like
Product Details
| Brand Name | SPES | Place of Origin | China | |
| Model Number | SR2 |
Product Description
Specification
| Place of Origin | Shanghai, China |
| Brand Name | SPES |
| Model | SR2 Series |
| Keyword | Rotary Paddle Type Level Switch |
| Power Supply | 240VAC, 220VAC, 110VAC, 24VAC, 24VDC |
| Contact Capacity | 2550VAC/5A (Resistive Load), SPDT |
| Working Temperature | -30~80℃( normal high temperature to 200℃, max 800℃) |
| Power | 3W |
| Rotating Torque | 1N.m |
| Wetted Material | SUS304 |
| Protection Grade | IP65 |
| Wire Outlet | Wire Outlet |
| Proportion of the Applicable Medium | ≥0.4g/cm3 |
| Product Name | SR2 Probe Adjustable Solid Rotary Paddle Level Measuring Switches |
Working Principle
The motor is used to drive the paddle to rotate. When the measured medium rises to the paddle position, the paddle stops rotating by dialect barrier and outputs contact signal ON or OFF through the relevant control mechanism; when the medium drops away from the paddle, the paddle restores to the beginning position to rotate and detect the position change of the medium under the function of spring.
Product Advantages
1, Detection of loose solid materials using the technology of the rotating blade;
2, The highly integrated mechanical seal to prevent infiltration of dust along the axis;
3, The unique elastic clutch structure, when the blade being overloaded, the automatic protection of electrical machinery could be realized;
4, Complete mechanical and electrical separation structure and no need demolishing completely, easy for maintenance;
5, Special blades can be used for low-density mediums;
6, Use of the process connecting pieces, easy for installation
