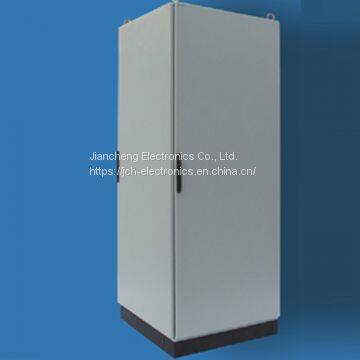

Industrial Control Cabinet industrial control panel enclosure industrial electrical cabinet industrial control box

Industrial Control Cabinet    industrial control panel enclosure    industrial electrical cabinet    industrial control box

Product Description

Material of industrial control cabinet:

The material model of 16 folds, superior quality cooling plate, allumen plate

Characteristic:

Internal frame uses 16 folds vertical post which is completed one time processing with superior cold strip rolling steel plate and shaped by the combination of steel plugin and welding double-connected, the hoisting rings overhead directly connect with steel plugin to make sure the hoisting strength of the frame. The frame dynamic load-bearing is 1000kg. Each cover plates of four sides can be disassembled for internal electrical equipment installation and single cabinets connect convenience. Every 25mm has an installation hole that meet the requirement of DIN on frame vertical post, which make installation of the internal electrical component and fix of device become more convenience. In order to extent the usable range of the industrial control cabinet, the doors of different height (200-1000mm) of module partition inside can be installed in the front of the cabinet. Direct-viewing operation panel, modulization internal structure, maintenance convenient structure with segmented type door, all of these make it become a classic switchboard system control cabinet.Baseboard consist of removable cover plate to ensure the cabling become more convenience and flexibility.Pedestal can select the stationary type or assembly type.

Jiancheng-Industrial Electrical Cabinet Standard Configuration

Surface Treatment

Frame: RAL7035 flat posrnotum

Four sides covers: RAL7035 orange peel

Pedestal: RAL7035 flat.

Material:

Frame body: thickness 1.5mm, 16 bend

Front door: thickness 2.0mm, cold strip rolling steel plate

Back plate: thickness 1.5mm, cold strip rolling steel plate

Postnotum: thickness 3.0mm, hot galvanized plate

Side beam: thickness 1.5mm, cold strip rolling steel plate
