ASTM D1298 Digital Auto Liquid Densitometer Turbine Oil Transformer Oil Density Meter

 I. Overview

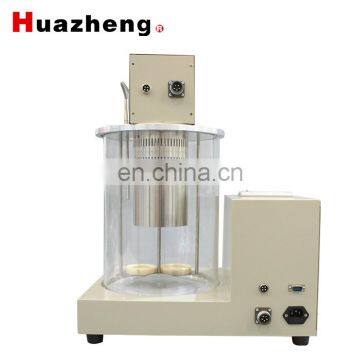

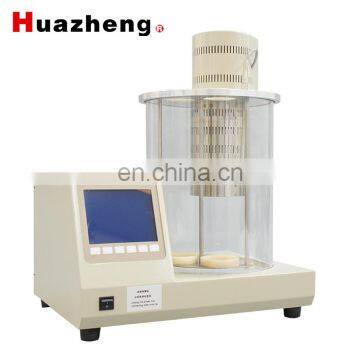

HZMD-2001 petroleum products density tester, is designed and manufactured in accordance with national standards GB / T1884, using density meter to determine the apparent density of oil and liquid petroleum products at a constant temperature, and then converted to the standard density.
II. the structural characteristics
HZ-2-type petroleum product density tester consists of constant temperature bath electric control box.
Constant temperature bath for the special cylindrical glass tank, which is equipped with a heater, stirrer, temperature sensor, measuring cylinder and density meter.
Electric control box, including digital temperature controller and lighting devices.
III.  technical parameters
1. Input power: 1850W
2. Working power: AC220V / 50Hz
3. Temperature range: room temperature ~ 100 ℃, continuously adjustable
4. Temperature control accuracy: ± 0.2 ℃
5 temperature range: room temperature ~ 100 ℃
6. Heating power: 1800W

 Main Technical Parameters

Range of temperature measurement:   room temperature ~100℃

Temperature Control Precision:       ≤±0.1℃

Number of experimental cups:       two holes

Power:                          ≤1000W

Supply Voltage:                  AC220V±20%  50HZ ±10%

Ambient Temperature:             0℃~40℃

Relative humidity:                <85%

Contour Dimension:              440x350x550 (mm)
