ZrO2 Ceramic Ball Bearing 608CE
- Qingdao
- T/T Credit Card
You May Like
-
688 Full Complement Ceramic Bearing 8x16x5 ZrO2 Miniature Ball
-
Made in China Ball Bearing 6011 Ceramic Bearing
-
ZrO2 Bearing 623 Full Ceramic Ball Bearing 3 x 10 x 4 mm
-
Bicycle Ceramic Bearings Ball Bearing Ceramic 6000
-
Ceramic Bearing 608 22mm*8mm*7mm Deep Groove Ball Bearing 608
-
Deep Groove Ball Bearings Hybrid Ceramic Ball Bearing 6916 Full Ceramic
Product Details
| Brand Name | CLUNT OR OEM | Place of Origin | Shandong, China | |
| Model Number | Deep groove ball bearing | Outside Diameter | 5, 200 | |
| Bore Size | 5, 200 |
Product Description

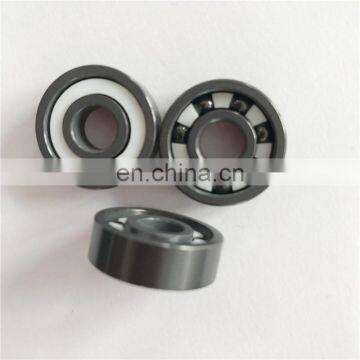

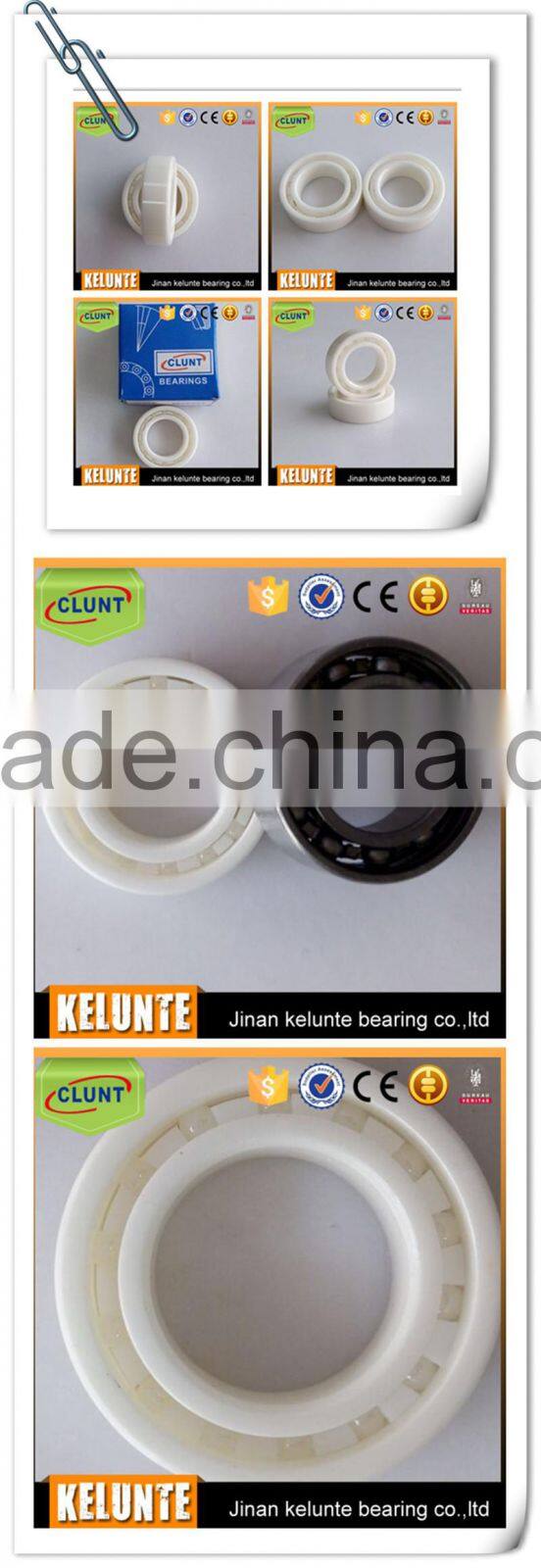

ZrO2 Ceramic ball bearing 608CE

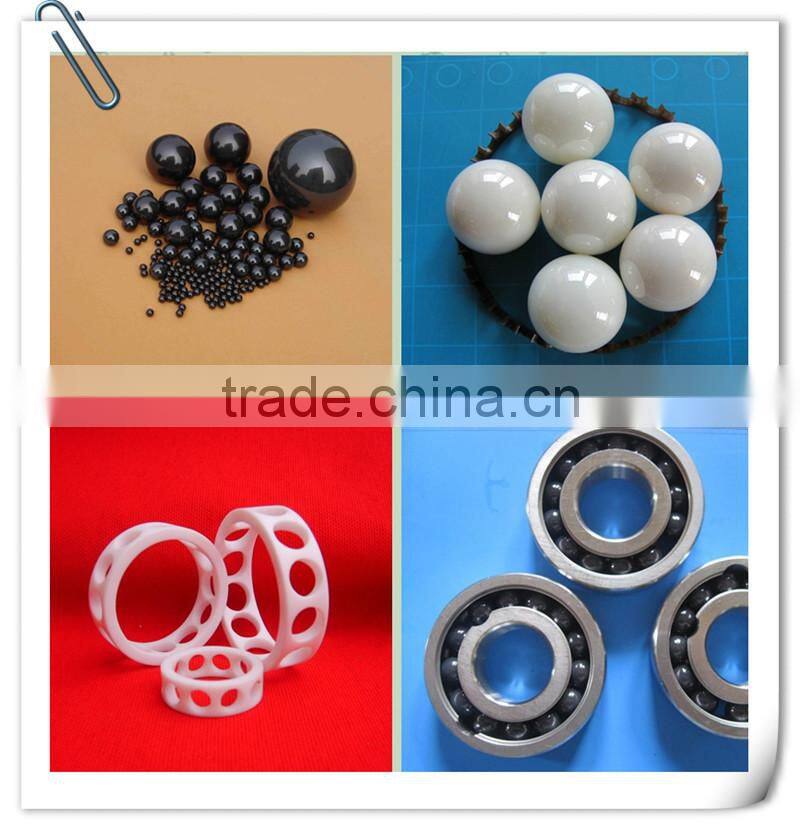

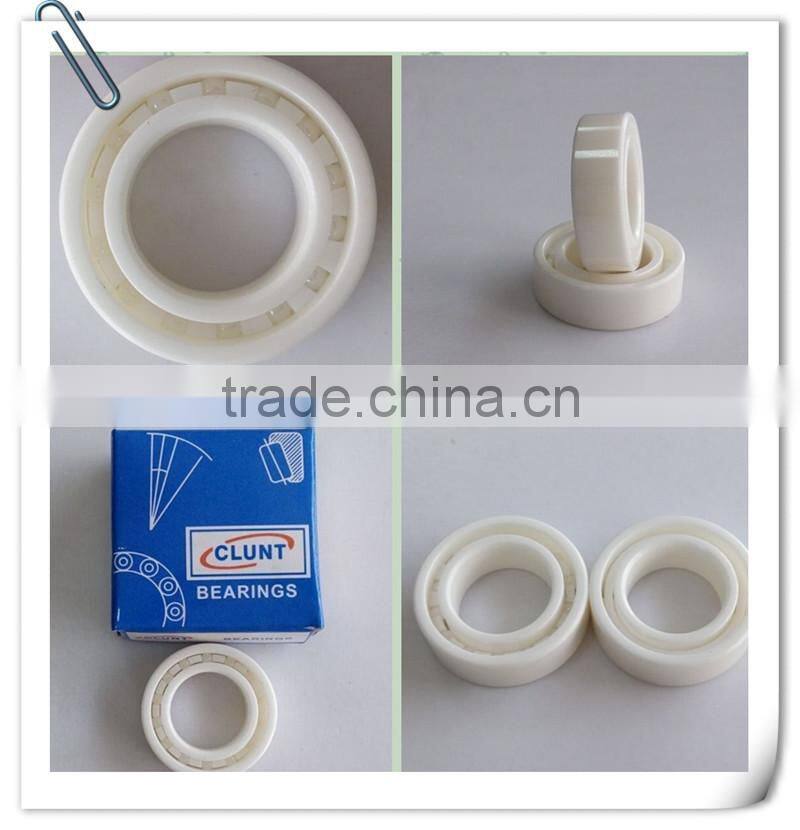

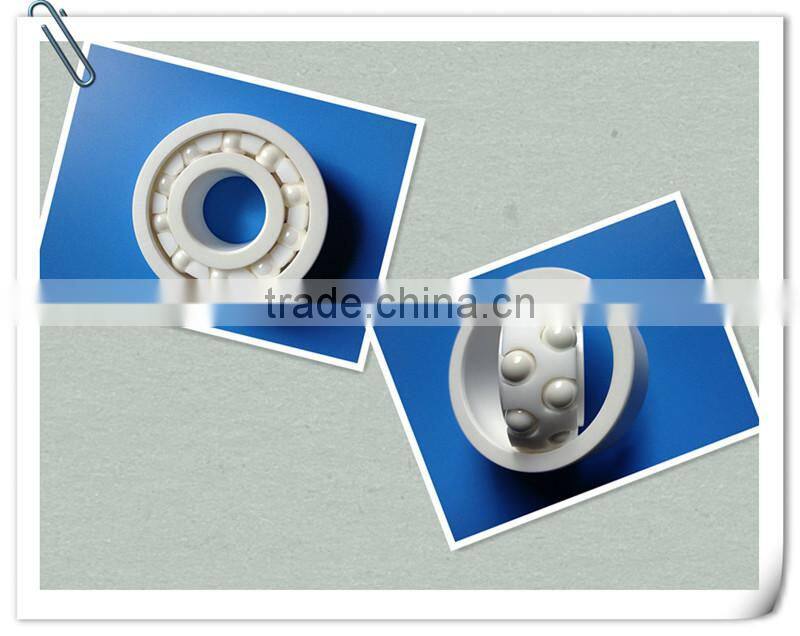

Ceramic Bearings , All Kinds Full Ceramic Bearings and semi Ceramic Bearings, ZrO2 Si3N4 or Sic Material , Factory Wholesale
Model Number | Ceramic Bearing |
Brand Name | CLUNT OR OEM |
Structure | Deep Groove |
Type | Ball |
Bore Size | 4-800(mm) |
Outside Diameter | 4-1150(mm) |
width | 1.6-155(mm) |
Seals Type | OPEN 2Z 2RS Z RS |
Material | Ring Material Chrome Steel ,Carbon steel,Stainless steel |
Cage material | Nylon ,steel , brass |
Clearance | C0,C2,C3,C4,C5 |
Vibration | Zv1,Zv2 and Zv3 |
Precision Rating | P0,P6,P5 |
Greese | As you requirement, such as SRL ,PS2, Alvania R12 and so on . |
Number of Row | Single Row |
Guarantee | One year. |
Application | Home appliances, low noise and high speed electric motors, |
automotive components, pumps, machinery. | |
Certifications | ISO 9001:2000 |
Package | Single box or according to buyers requirement . |
Place of Origin | China (Mainland) |
MOQ | 1PCS |
Service | (1) Prompt Delivery |
(2) OEM | |
(3) Good Service Offered | |
(4) Buyer Label Offered | |
Payment Term | TT or L/C or Western Union |
Port | Qingdao or Tanjin or Shanghai |
Details | 1,Low price |
2.Low vibration | |
3.high rolling accuracy |
Firstly, the ceramic bearing has the feature of corrosion risistance, the ceramic rolling bearing suitable for operation under harsh conditions covered corrosive media.
Secondly, since the ceramic ball rolling has lower density than steel, so which is much lighter, so when you rotate the outer ring centrifugal effect can be reduced by 40%, thus greatly extended service life.
Thirdly, the expansion and contraction of the ceramic affected smaller than steel, and therefore the gap of the bearing is constant, the bearing allows the temperature changes more severe environment.
Fourthly, as the ceramic has higher modulus of elasticity than steel, when the force is not easy deformation, and therefore help to improve the operating speed and achieve high accuracy.
Applications: Ceramic bearings with the features of high temperature, cold, wear resistance, corrosion resistance, magnetic insulation, oil-free self-lubricating, high-speed and other characteristics. Can be used in extremely harsh environments and special conditions, can be widely used in aviation, aerospace, marine, petroleum, chemical, automotive, electronics, metallurgy, electric power, textile, pumps, medical equipment, research and national defense and military fields, is application of new materials, high-tech products.
600 Series Deep Groove Ball Bearing
| Item No. | Boundary Dimensions(mm) | Basic load ratings(Lbf) | Weight(Lb.) | ||||
| d | D | B | Dynamic | Static | |||
| OPEN | ZZ/2RS | Cr | Cor | ||||
| 603 | 3 | 9 | 3 | 5 | 128.14 | 35.97 | 0.00198 |
| 604 | 4 | 12 | 4 | 4 | 218.06 | 80.93 | 0.00462 |
| 605 | 5 | 14 | 5 | 5 | 292.25 | 110.16 | 0.0077 |
| 606 | 6 | 17 | 6 | 6 | 508.07 | 166.36 | 0.01276 |
| 607 | 7 | 19 | 6 | 6 | 526.05 | 200.08 | 0.01672 |
| 608 | 8 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0264 |
| 609 | 9 | 24 | 7 | 7 | 764.35 | 325.97 | 0.0352 |
| 623 | 3 | 10 | 4 | 4 | 143.88 | 49.46 | 0.0044 |
| 624 | 4 | 13 | 5 | 5 | 294.50 | 110.16 | 0.0066 |
| 625 | 5 | 16 | 5 | 5 | 395.66 | 152.87 | 0.0088 |
| 626 | 6 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 627 | 7 | 22 | 7 | 7 | 753.11 | 314.73 | 0.0308 |
| 628 | 8 | 24 | 8 | 8 | 899.23 | 357.44 | 0.0352 |
| 629 | 9 | 26 | 8 | 8 | 1022.88 | 438.38 | 0.0418 |
| 633 | 3 | 13 | 5 | 5 | 292.25 | 110.16 | 0.0066 |
| 634 | 4 | 16 | 5 | 5 | 395.66 | 152.87 | 0.011 |
| 635 | 5 | 19 | 6 | 6 | 526.05 | 198.96 | 0.0176 |
| 636 | 6 | 22 | 7 | 7 | 741.87 | 303.49 | 0.0286 |
| 637 | 7 | 26 | 9 | 9 | 910.47 | 364.19 | 0.0528 |
| 638 | 8 | 28 | 9 | 9 | 1022.88 | 438.38 | 0.0638 |
| 639 | 9 | 30 | 10 | 10 | 1146.52 | 537.29 | 0.077 |
| 673 | 3 | 6 | 2 | 2.5 | 54.40 | 21.13 | 0.00044 |
| 674 | 4 | 7 | 2 | 2.5 | 60.47 | 38.22 | 0.000616 |
| 675 | 5 | 8 | 2 | 2.5 | 65.64 | 31.92 | 0.000704 |
| 676 | 6 | 10 | 2.5 | 3 | 119.15 | 53.95 | 0.00143 |
| 677 | 7 | 11 | 2.5 | 3 | 124.77 | 60.47 | 0.001474 |
| 678 | 8 | 12 | 2.5 | 3.5 | 129.26 | 66.99 | 0.00165 |
| 683 | 3 | 7 | 2 | 3 | 81.52 | 26.44 | 0.000726 |
| 684 | 4 | 9 | 2.5 | 4 | 136.59 | 48.47 | 0.001386 |
| 685 | 5 | 11 | 3 | 5 | 138.80 | 57.28 | 0.00242 |
| 686 | 6 | 13 | 3.5 | 5 | 231.33 | 88.12 | 0.00418 |
| 687 | 7 | 14 | 3.5 | 5 | 251.16 | 114.65 | 0.00462 |
| 688 | 8 | 16 | 4 | 5 | 283.26 | 132.64 | 0.00682 |
| 689 | 9 | 17 | 4 | 5 | 298.99 | 149.50 | 0.00704 |
| 693 | 3 | 8 | 3 | 4 | 125.89 | 42.71 | 0.001342 |
| 694 | 4 | 11 | 4 | 4 | 215.82 | 76.43 | 0.00374 |
| 695 | 5 | 13 | 4 | 4 | 296.75 | 110.16 | 0.00528 |
| 696 | 6 | 15 | 5 | 5 | 393.41 | 150.62 | 0.00858 |
| 697 | 7 | 17 | 5 | 5 | 359.69 | 159.61 | 0.01166 |
| 698 | 8 | 19 | 6 | 6 | 386.67 | 188.84 | 0.01584 |
| 699 | 9 | 20 | 6 | 6 | 550.78 | 236.05 | 0.0187 |

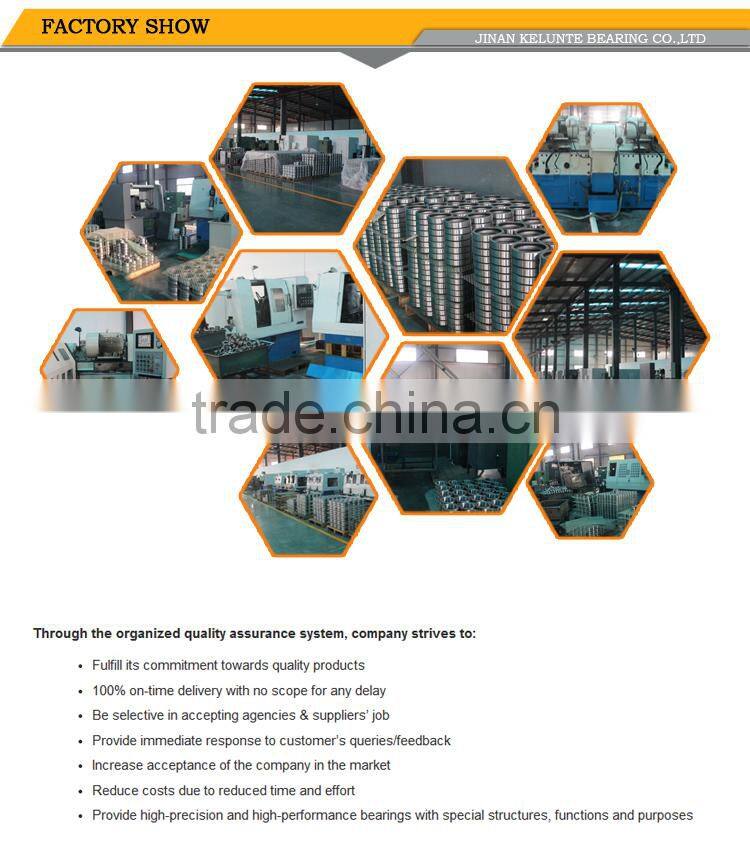

Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
