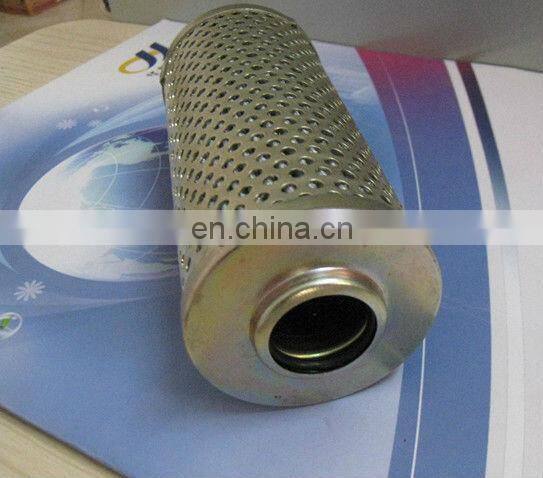

FE040FD1 Filter,cartridge Filter for Industry,oil Machinery

Direct factory supply FE040FD1 oil filter,hydraulic filter,cartridge filter

Hydraulic filter filter element is installed in oil tank,Simplify the system piping and save space,so that the System  layoutis more compact.They are design with selfclosing valve.When maintaining system,the oil in tank will not reflux

And when replacing oil filter lement,they are removed  together with pollution,oil will not flow out.

Oil filter element is designed with bypass valve.When the pressure difference achieves 0.35MPa,if can't change filter immediately,the by-pass valve in the top of oil filter element will open automaticall(pressure difference are 0.4MPa),to protect the normal operation of system.

They also design with magnetic device.Magnetic device can filter out ferromagnetic particles which more than 1 micron.

Application

Our company produces foreign alternative filters,such as German HYDAC,American PALL,VICKERS,PARKER and INTERNORMEN.

Features

We use imported depthtype filter material,tapered pore structure,gradient filter,can intercept granule furthest,to extend the service life.

We use hightech support materials.Hightech support materials can not only play the role of support filter material and avoiding compressive deformation,but also protect the materials from being damaged during processing.

We also use the special spiral wrapping belts,so thar filter layers can be connected firmly.Stationary pleateddistance ensures the uniform flow when fluid penetrating the filter layer.Not only improving pressure drop,but also extending service life.

• quality control system: ISO9001-2008
• function: oil filter
• filter fineness: 5-25 micron
• easy to instal
• service life: 4000-6000h
• structure strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa, etc
• completely interchangeable with original element
• wide range of types are available
• any size
• sample is available
• energy efficient filters
• efficiency: 99.8%
• high integrity design to save your space

Specifications

Model: FE040FD1

External Diameter: 54mm

Internal Diameter:  22mm

Height: 112mm

Precision: 5-10um

Flow rate: 40L/ min

high pressure hydraulic filter

1. scope of application: petroleum, water, air, oil field, refinery, medicine equipment, pipeline filters, railroad, astronautics, project machinery, etc
2. materail: oil filter element is made of wire mesh for filtration. filter media can be woven into wire cloth using stainless steel, brass and other materials
3. structure: filter elements are made of several layers of mesh which are sintered together to form an integrated element. the middle mesh is of very fine gauge and the filtration efficiency of the elements. this layer is then overlaid with inner and outer layers of coarser mesh, to give support and protection

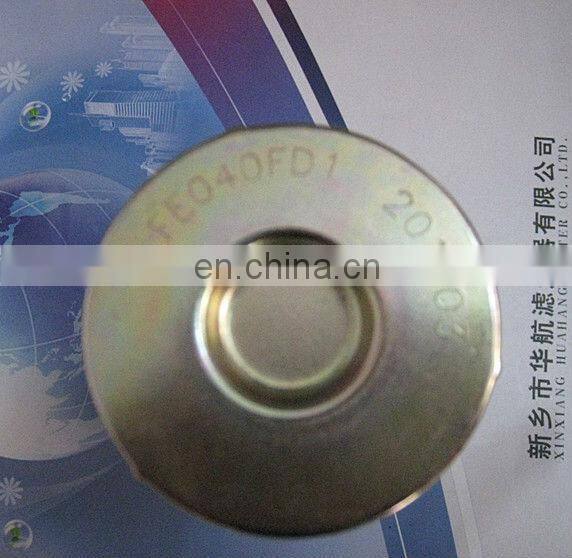

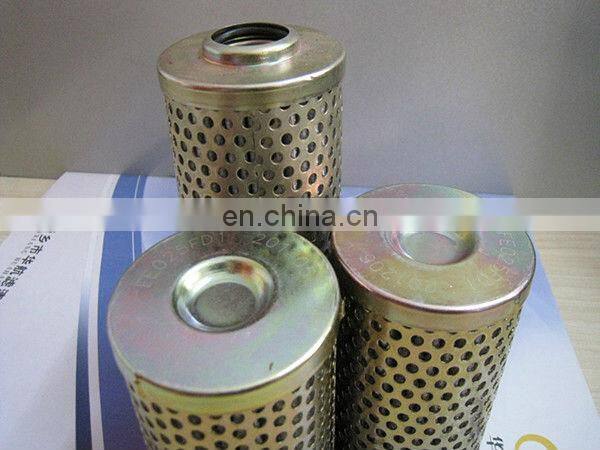

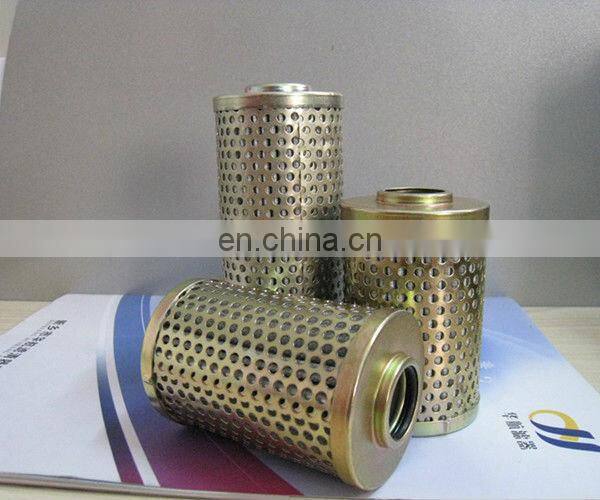

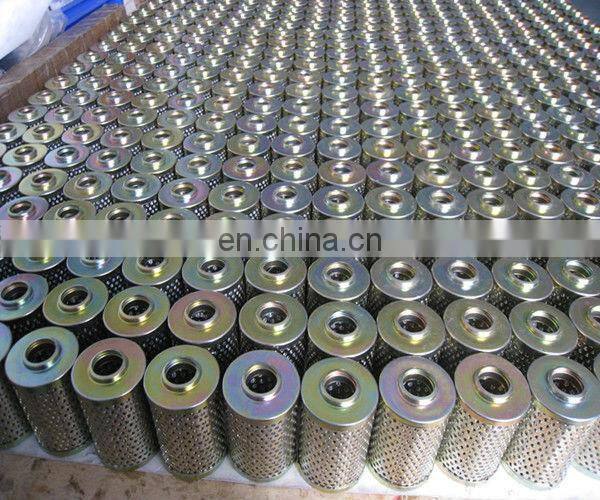

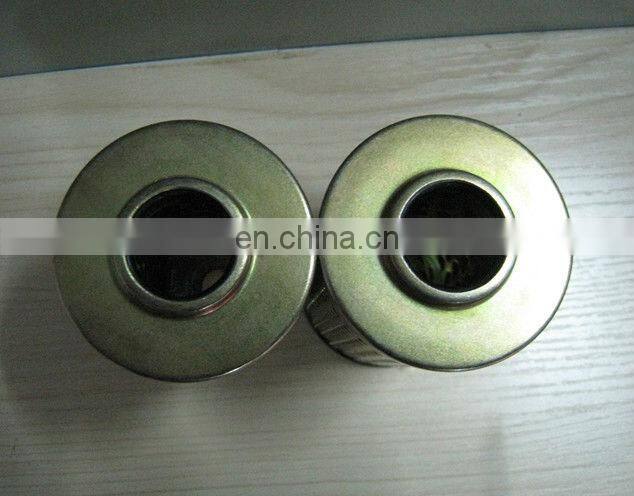

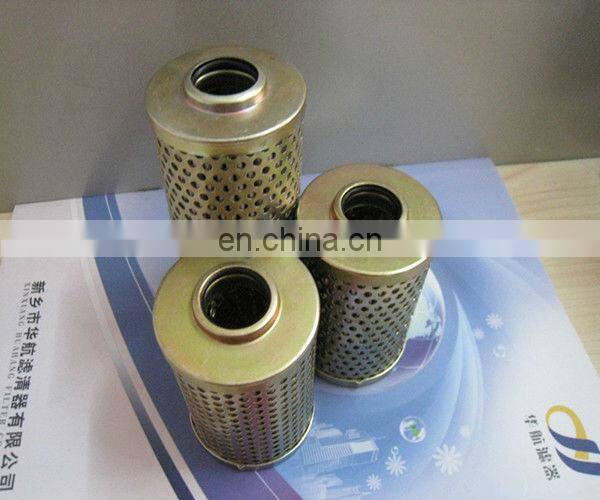

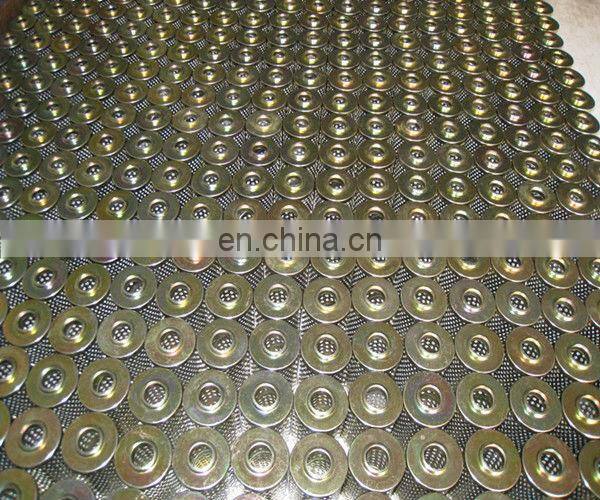

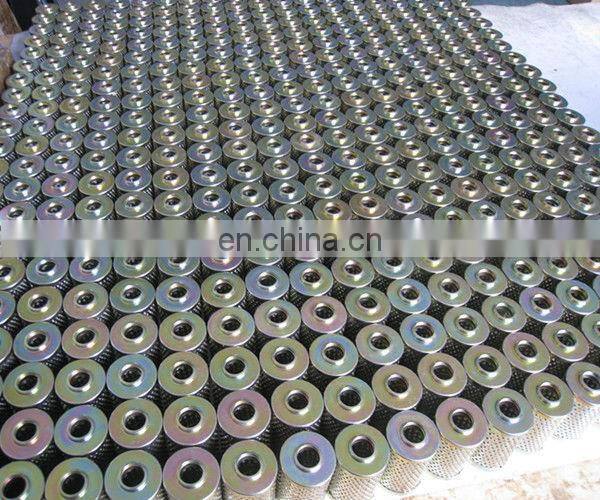

Products show
