Home > Products > Solar PV connector > PV Solar y Branch Solar Cable Connector for Cable Wires
PV Solar y Branch Solar Cable Connector for Cable Wires
- Shenzhen Guangdong China
- T/T Credit Card
You May Like
-
SLOCABLE 2020 New Type IP68 Waterproof TUV Approved DC PV Plug Socket Solar Cable Connector
-
Slocable High Quality IP68 Waterproof Power Solar mc Connector PV Plug Male Female
-
1500V 3 to 1Male and Female PV Solar Branch Connector for Cables Wires
-
Slocable Factory Price 1000V 1500V DC Solar System Connector PV Power Panel Adapter
-
Flame Resistance IP68 Waterproof 1500V DC PV Cable Plug Socket Solar Connector Pin
-
IP68 Waterproof Protection PV Industrial Wire Plastic Connector for Solar Area
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | branch connector | Type | MMCX | |
| Application | Power |
Product Description

PPO PV Branch Connector for Solar System
| Technical data | |
| Insulation material | PPO |
| Rated current | 50A |
| Rated voltage | 1500V DC |
| Test voltage | 8kv(50HZ,1min) |
| Contact resistance | <0.5mΩ |
| Contact material | Copper,Tin plated |
| Degree of protection | IP68 |
| Safety class | II |
| Flame class | UL94-V0 |
| Insertion force | Max.50N |
| Withdrawal force | Min.50N |
| Ambient temperature range | -40°C-+85°C(IEC) |
| Overvoltage category | CATIII/2 |
Advantages of our connectors:
- Compatible for PV Solar Connector .
- Easy and quick for assembling.
- Material:PPO as insulation material and tinned copper as conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.
- High carrying capacity:1500V DC rated voltage,30-50A rated current and IP68 water proof level perform well in PV system installation programs.
- Optional pins:different pins can be chosen to compatible with different insulation diameters(2.5mm2-10mm2/14AWG-8AWG)
- Quality reliable:TUV,CE and ISO certificates guarantee a 2 year warranty period and a 25-year working time.
- Safety design:lock design with special PV Solar Connector spanner tool avoids connector loosing and provides safety assurance.

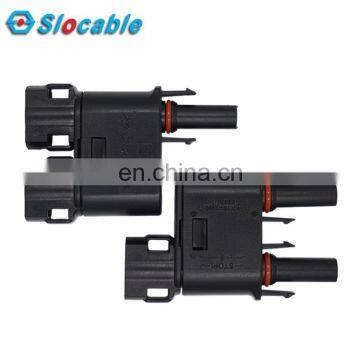

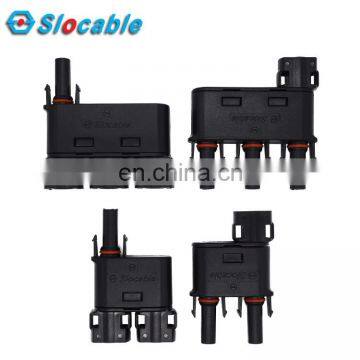

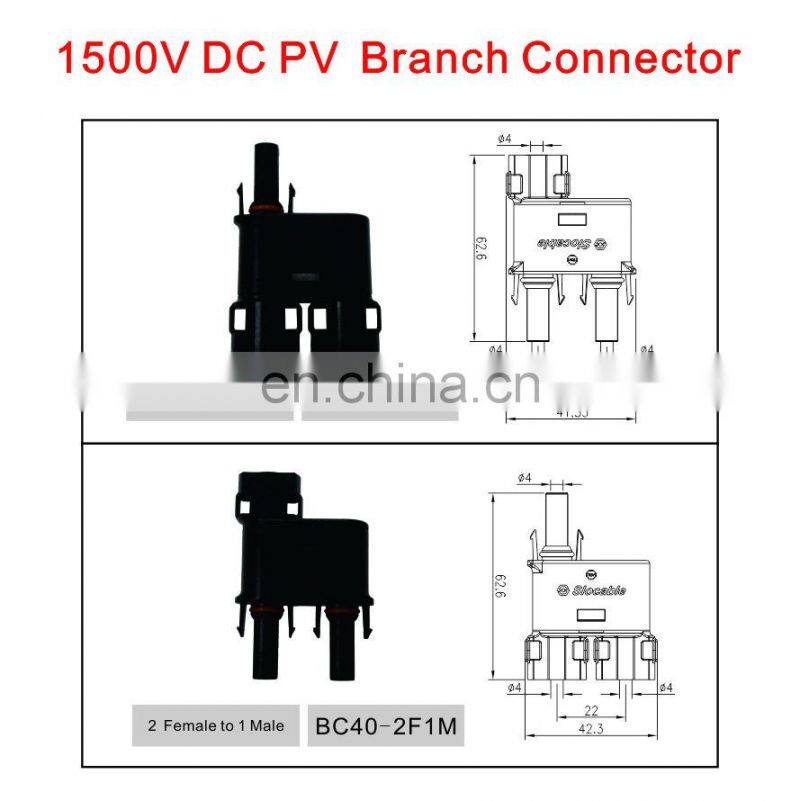

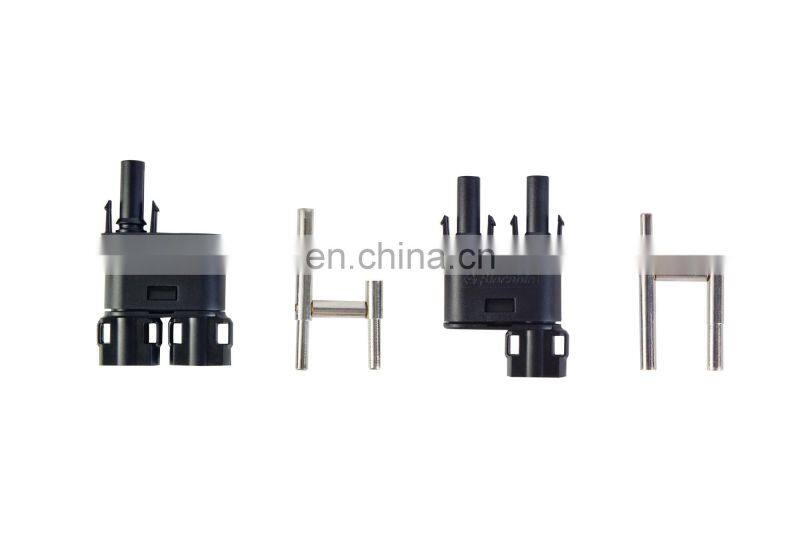

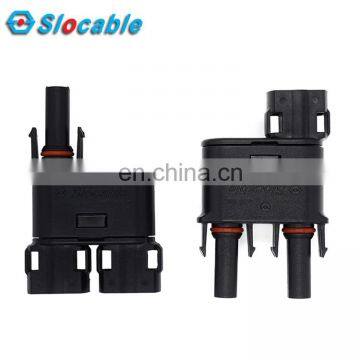

Detail pictures:

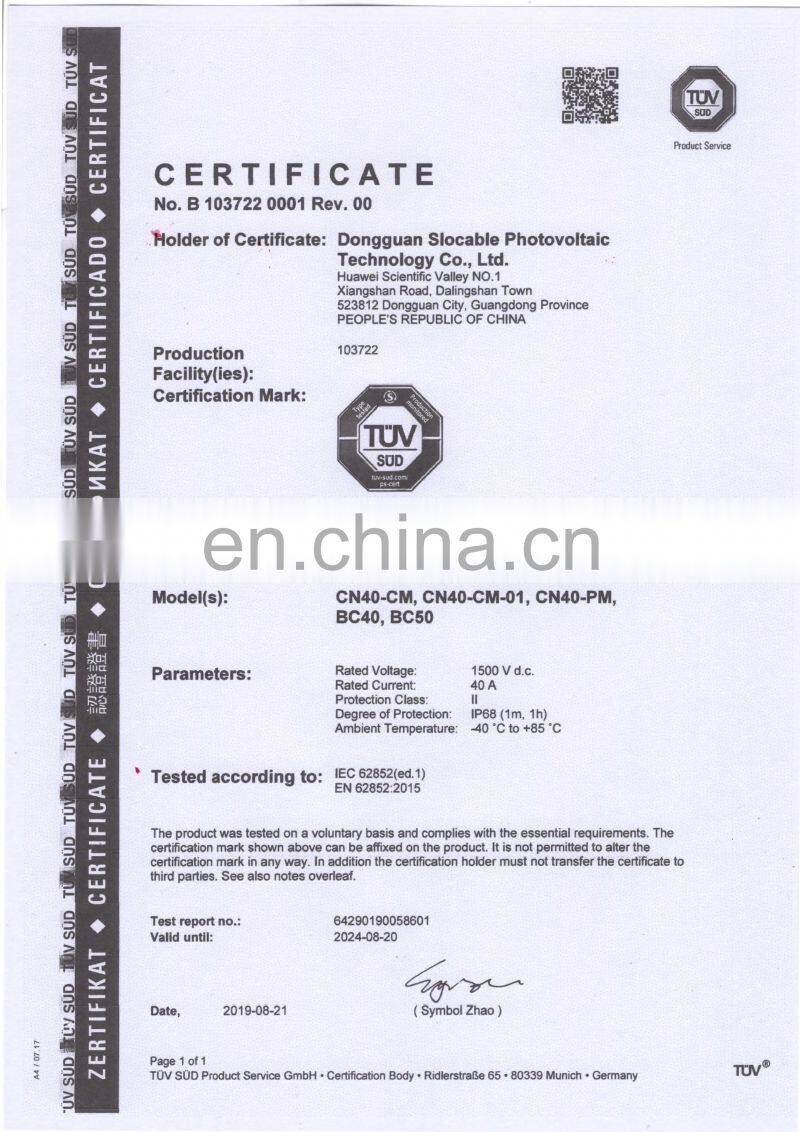

Latest 1500V TUV Certificate:
Click here to see other products:
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, PV Solar Connector , PV Fuse Holder,Circuit breakers and other solar relative products. We are the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products
Message us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control?
All raw material we selected the high quality one.
Professional & Skilful workers care every details in handling the producing.
Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
For Sample: 1-3 Days ; For small Orders: 3-10 Days;For mass Orders: 10-18 Days.
More details, please click the picture as below:
