Home > Products > Self-Regulating Heating Cable > Manufacturer Price Induction Heating Cable

Manufacturer Price Induction Heating Cable

FOB Price

US$ 0.5 - 0.5 / Meter

100 Meters(Min. Order)

Port Any port in China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YouYu	Place of Origin	Anhui, China
Model Number	Customized	Application	Pipe Heating, Pipe heating trace / roof & gutter de-icing
Number of Conductors	Customers' Demand

Product Description

Manufacturer Price Induction Heating Cable

Product Description

Product Dispaly of 2018 Best Price Custom Watery Resistant 18w Single Core Heating Cable

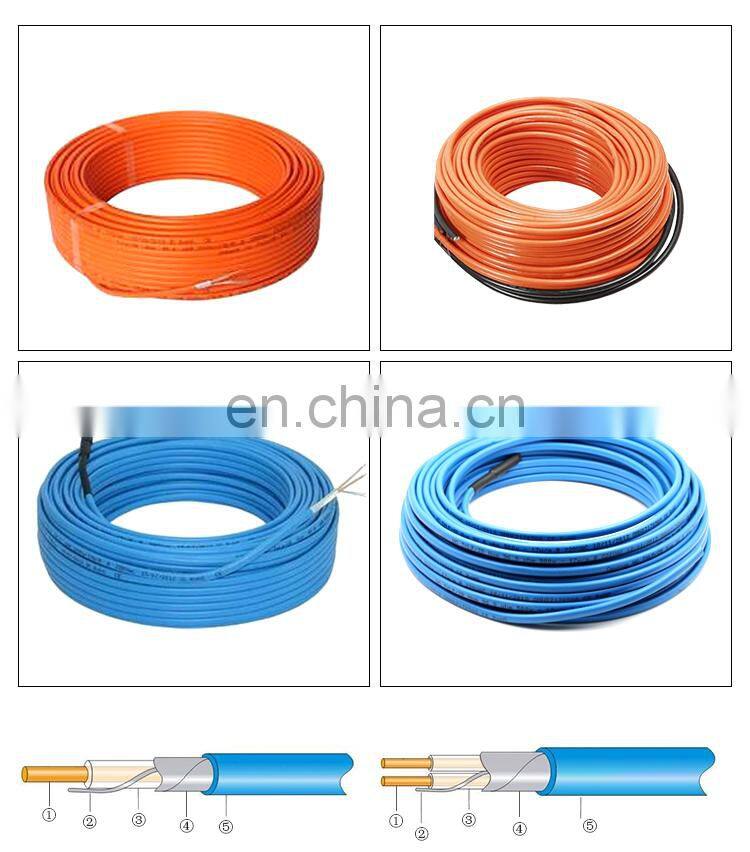

Single conductor heating cable	Twin conductor heating cable
1.Nickel alloy wire	1.Nickel alloy wire
2.8 tinned copper wire	2.8 tinned copper wire
3.Cross-linked PE insulation	3.Cross-linked PE insulation
4.Armored shield	4.Armored shield
5.PVC jacket	5.PVC jacket

Product Application

The single-conductor industrial heating system assembly use an implicit connector, the core of the industrial heating system is composed of a hot-cold wire, and the outside is made up of an insulating layer, a earth wire, a shielding layer and a sheath layer.After the industrial heating system is energized, the heating wire generates heat, running between the temperature 40-60 ℃, buried in the filler layer of industrial heating system, through the way of heat conduction and far-infrared radiation to the heated body.Twin conductor industrial heating system with implicit connector, industrial heating system core by the cold and hot cable, the outside by the insulation layer, earth wire, shielding and outer sheath composition. After the industrial heating system is energized, the heating wire generates heat and runs at a temperature between 40 and 60 degrees. The industrial heating system embedded in the filling layer will be transmitted to the heating body through heat conduction and far-infrared radiation. Twin conductor industrial heating system is mainly used for floor heating, soil heating, snow melting , livestock breeding.

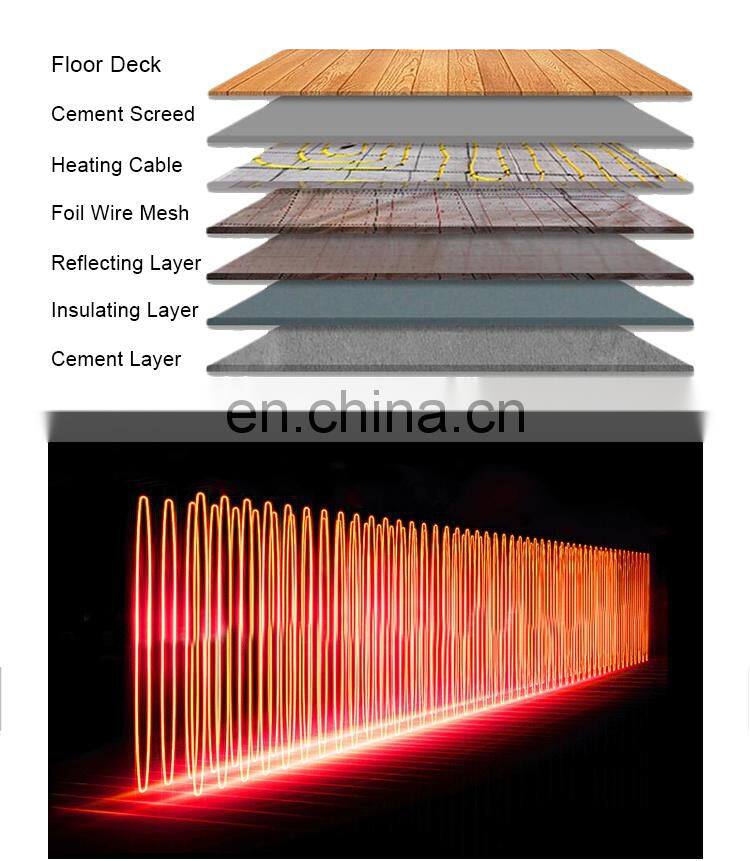

Installation Steps

Technical Parameter

TXLP/1single conductor industrial heating system 220V 18.5W/M	Power(W)	Type	Voltage(V)	Standard Length(m)	Power /Per Meter(W/M)	Resistance(Ω)
	3150	TXLP/1/18.5	220	170.3	18.5	15.4
	3000	TXLP/1/18.5	220	162	18.5	16.1
	2800	TXLP/1/18.5	220	151.4	18.5	17.3
	2600	TXLP/1/18.5	220	140.5	18.5	18.6
	2400	TXLP/1/18.5	220	129.7	18.5	20.2
	2200	TXLP/1/18.5	220	118.9	18.5	22.0
	2000	TXLP/1/18.5	220	108.1	18.5	24.2
	1760	TXLP/1/18.5	220	95.1	18.5	27.5
	1600	TXLP/1/18.5	220	86.5	18.5	30.3
	1400	TXLP/1/18.5	220	75.7	18.5	34.6
	1200	TXLP/1/18.5	220	64.9	18.5	40.3
	1000	TXLP/1/18.5	220	54.1	18.5	48.4
	850	TXLP/1/18.5	220	45.9	18.5	56.9
	700	TXLP/1/18.5	220	37.8	18.5	69.1
	600	TXLP/1/18.5	220	32.4	18.5	80.7
	500	TXLP/1/18.5	220	27.0	18.5	96.8
	400	TXLP/1/18.5	220	21.8	18.5	121.0
	300	TXLP/1/18.5	220	16.2	18.5	161.3

Technical Parameter

TXLP/2twin conductor industrial heating system 220V 17W/M	Power(W)	Type	Voltage(V)	Standard Length(M)	Power /Per Meter(W/M)	Resistance(Ω)
	3300	TXLP/2/17	220	194.1	17	14.7
	2800	TXLP/2/17	220	164.7	17	17.3
	2600	TXLP/2/17	220	152.9	17	18.6
	2400	TXLP/2/17	220	141	17	20.2
	2100	TXLP/2/17	220	123.5	17	23.0
	1700	TXLP/2/17	220	100.0	17	28.6
	1370	TXLP/2/17	220	80.6	17	35.3
	1250	TXLP/2/17	220	73.5	17	38.7
	1000	TXLP/2/17	220	58.8	17	48.4
	840	TXLP/2/17	220	49.4	17	57.6
	700	TXLP/2/17	220	41.2	17	68.1
	600	TXLP/2/17	220	35.3	17	80.7
	500	TXLP/2/17	220	29.4	17	96.8
	400	TXLP/2/17	220	23.5	17	121.0
	300	TXLP/2/17	220	17.6	17	161.3

Product Structure	Technical Data	Product Structure	Technical Data
Out Jacket	PVC	Outside Diameter	7.5*6.5mm
Earth Wire	Tinned Copper Wire	Rated Voltage	220V(customize)
Shield	Copper Foil + Copper Wire	Power Output	17w/m (customize)
Conductor	Alloy Resistance Wire	Cold Length	2.25m
Conductor Insulation	XLPE	Max Surface Temperature	65℃
Connector	Injection Connector	Min Bending Coefficient	5D

Are you manufacturer or trading company?

We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!

What's the Minimum Order Quantity?

MOQ for heating mat is 500sq. m.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.

Can I place a sample order first?

Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.

What is your delivery time?

Normally within 7~15 days, big order should be negotiated.

What's the payment term?

T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.

What is warranty of your product?

25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.

Can you do OEM and ODM for us?

Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.

How to control quality?

1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.
