Home > Products > Intermediate Metal Conduit/IMC & Fittings-UL1242 > High Strength Imc Coupling
High Strength Imc Coupling
US$ 0.99 - 0.99
/ Piece
3000 Pieces(Min. Order)
- T/T Credit Card
You May Like
Product Details
| Brand Name | East Conduit | Place of Origin | Shandong, China | |
| Model Number | Coupling | |||
| Connection | Female |
Product Description
INTERMEDIATE METAL CONDUIT(IMC)COUPLINGS
The IMC conduit coupling is used to connect the electrical steel conduits together, thus extending the length of the conduit pipe. It is manufactured from seamless steel pipes according to ANSI C80.6 and UL1242 standards with UL certificate number of E499791. Its trade size can be from 1/2” to 4”. We can make the IMC conduit coupling zinc plate on both outer side and inner side. The internal surface can also be electro-galvanized completely.
Detailed Product Description
- Standard: UL1242 & ANSI C80.6
- Certificates: UL Listed, certificate No.E499791
- Trade Size: From 1/2” to 4”
- Usage:Used in IMC Conduit
- Surface: Zinc plate on both out side and inner side, or hot dipped galvanzied and zinc plate on out side and zinc plate on inner side
- Material: Seamless Steel Pipe
- Package: Carton
- Delivery Time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term: L/C at sight or T/T

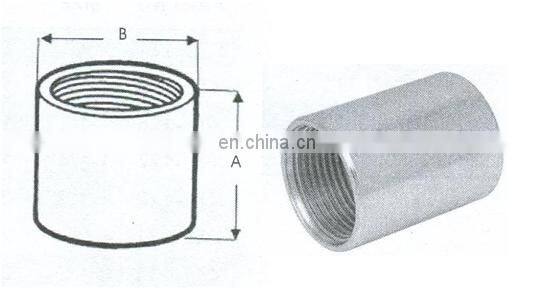

Dimension and Weight Chart
| Trade Size | Weight Per 100 pcs | Outside Diameter "B" | Minimum Acceptable Legnth"A" | Standard Carton Qty | Weight Per Carton | ||||
| KG | LBS | mm | in. | mm | in. | PCS | KG | LBS | |
| 1/2" | 4.8 | 10.59 | 25.7 | 1.01 | 41.3 | 1.626 | 400 | 19.2 | 42.4 |
| 3/4" | 7 | 15.41 | 31.8 | 1.25 | 41.7 | 1.642 | 300 | 21 | 46.2 |
| 1" | 10.4 | 22.91 | 38.7 | 1.53 | 50 | 1.969 | 180 | 18.7 | 41.2 |
| 1-1/4" | 12.82 | 28.27 | 47.5 | 1.87 | 51.6 | 2.031 | 100 | 12.8 | 28.3 |
| 1-1/2" | 18.74 | 41.31 | 54.7 | 2.16 | 52.4 | 2.063 | 75 | 14.1 | 31 |
| 2" | 24.21 | 53.39 | 67.3 | 2.65 | 54 | 2.126 | 60 | 14.5 | 32 |
| 2-1/2" | 66.2 | 145.95 | 82.6 | 3.25 | 81 | 3.189 | 12 | 7.9 | 17.5 |
| 3" | 76.56 | 168.8 | 98.3 | 3.87 | 84.1 | 3.311 | 8 | 6.1 | 13.5 |
| 3-1/2" | 116.06 | 255.89 | 114.3 | 4.5 | 86.5 | 3.406 | 4 | 4.6 | 10.2 |
| 4" | 123.31 | 271.84 | 123.8 | 4.88 | 89.3 | 3.516 | 4 | 4.9 | 10.9 |
