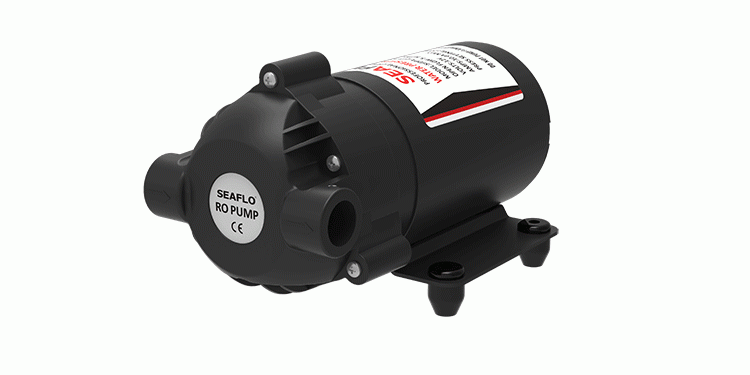

SEAFLO 12V 6.8LPM 120PSI Agriculture DC High Pressure Water Pump
- T/T Credit Card
You May Like
Product Details
| Brand Name | SEAFLO | Model Number | SFDP1-018-120-36 | |
| Power | Electric | |||
| Structure | Diaphragm Pump | Pressure | High Pressure |
Product Description
| Features & Benefits |
| 1.Flow rate up to 1.8 GPM [6.8 LPM] 3.Ignition Protection 5.Quiet operation 7.By pass use | 2.Can run dry without damage |
| Product Name | SEAFLO 12V 6.8LPM 120PSI Agriculture DC High Pressure Water Pump |
| Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 1.8 GPM [6.8 LPM] |
| Max Pressure | 120 PSI [8.3 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 12.0 A |
| Fuse | 18.0 A |
| Switch Type | By Pass, and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Viton, and EPDM is available |
| Duty Cycle | Continuous |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/8"-18 FNPT, and contact us for more ports |
| Lead | 8" [20 cm] 16 AWG lead |
The 36 Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.

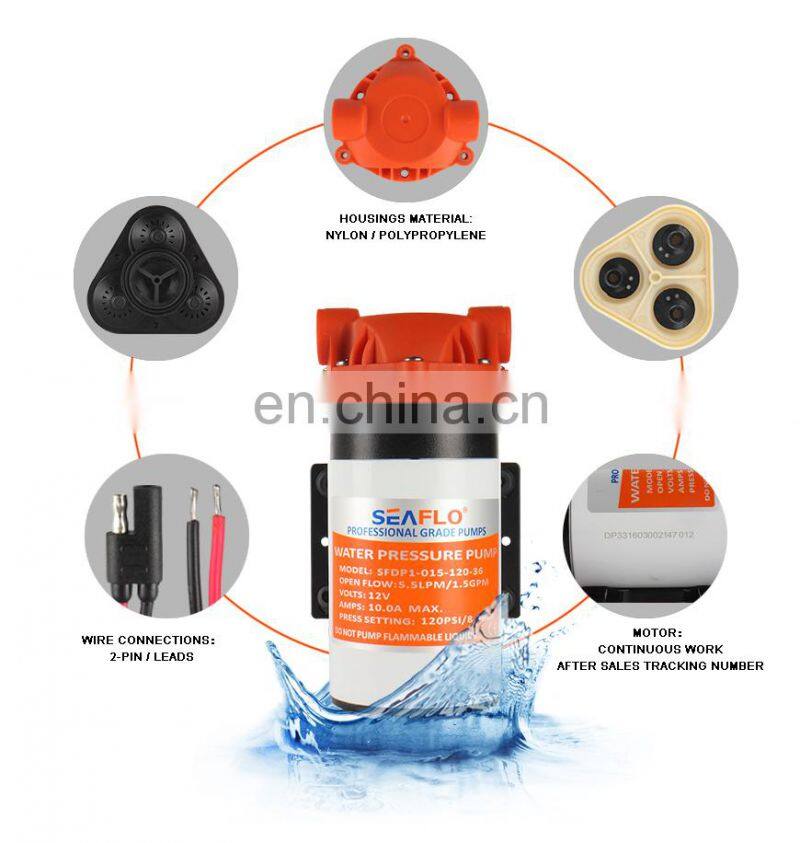

| Product Show |

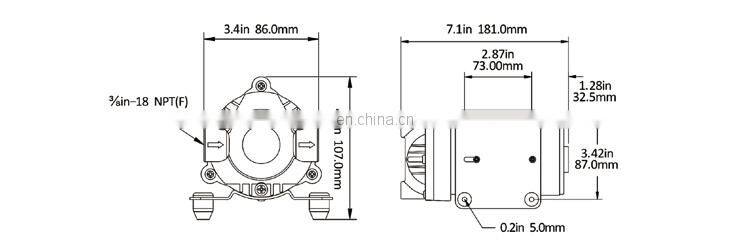

| Dimensions |
| Performance |
lacking

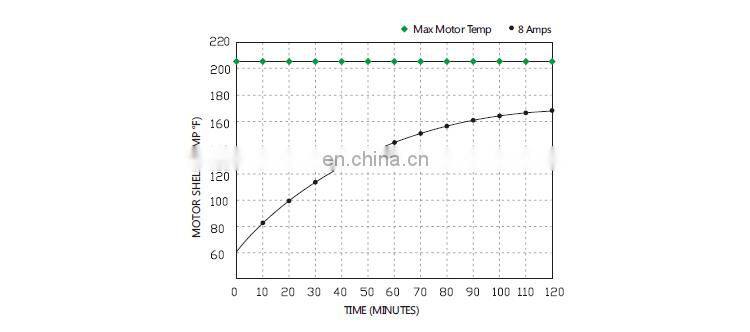

| Motor Heat Rise |
| Product Details |
Standard Pump Configurations
| Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
| SFDP1-015-120-36 | 12 V | 1.5 [5.5] | 120 [8.3] | 10.0 A | Santoprene | Viton |
| SFDP2-015-120-36 | 24 V | 1.5 [5.5] | 120 [8.3] | 5.0 A | Santoprene | Viton |
| SFDP1-018-120-36 | 12 V | 1.8 [7.0] | 120 [8.3] | 12.0 A | Santoprene | Viton |
| SFDP2-018-120-36 | 24 V | 1.8 [7.0] | 120 [8.3] | 6.0 A | Santoprene | Viton |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 160 PSI [11.00 Bar]; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 2.1 GPM [8.0 LPM]. Material can be adjusted according to your requirement.
Package Infomation
![]() | Unit Pump Weight | 4.94 lbs [2.24 kg] |
| Selling Unit Size (L x W x H) | 11.39" x 4.64" x 4.72" [28.8 x 11.8 x 12.0 cm] | |
| Selling Unit Weight | 5.16 lbs [2.55 kg] | |
| Master Carton Qty | 8 pcs / carton | |
| Master Carton Size (L x W x H) | 23.62" x 11.81" x 14.57" [60.0 x 30.0 x 37.0 cm] | |
| Master Carton Weight | 44.09 lbs [20.00 kg] |

Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
