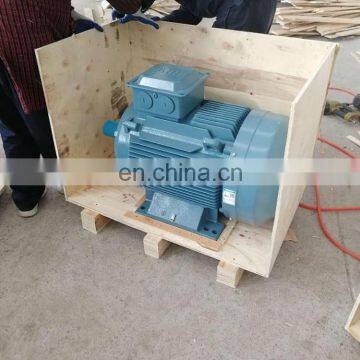

ABB brand M2BAX315SMC6 110KW 6P 1500RPM B3/B5 IE2 three phase induction AC motor

The type of ordinary motor ABB motor for the general process of M2BAX series motor, it is equivalent to the ordinary domestic motor, energy consumption is equivalent to the IE2- 2012 version of the standard 3 domestic energy consumption, YX3, YE2 series motor is equivalent to the domestic.

M2BAX series motor adopts imported bearings NSK, SKF brand bearings, motor bearings all locked in D standard axial end. The product design level of protection IP55, while providing IP56, IP65 custom. Provide up to dozens of motor variable code selection and configuration, fully meet the various application environments.

Rated output
The rated power of MABAX series motor is a motor running in S1- continuous duty condition (IEC 60034-1), when the ambient temperature is -20 to 40 DEG C, the altitude does not exceed 1000m.

Voltage and frequency
IEC 60034-1 defines the effect of voltage and frequency of temperature rise. The standard will change the voltage and frequency of A and B is divided into two regions. Area A is the voltage deviation +/-5% and frequency deviation +/-2%; area B is the voltage deviation +/-10% and frequency deviation +3%/-5%.

The motor can provide the rated torque of A and B in the two area, but the temperature is higher than the rated voltage and frequency under the condition of value. The motor is only allowed to run a short time in region B.
