Shunt Test Unit -STU for VD4 EL

FOB Price

US$ 50 - 2,500 / Piece

10 Pieces(Min. Order)

Port Shenzhen/Hongkong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ABB		Place of Origin	China
Model Number	STU

Product Description

Shunt Test Unit -STU for VD4 EL

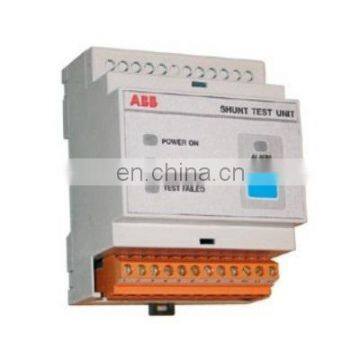

STU Shunt Test Unit

Due to the particular construction of these releases, checking the functionality of the shunt closing (-MC) and opening (-MO1, -MO2) releases is not possible with dedicated relays (e.g. TCS Test Control Supervision, CCC Control Coil Continuity) or with the REF control and protection unit. The only device able to carry out a check of the functionality is the STU device. Please contact us if you want to carry out this control with devices other than STU.

This device can be combined with the shunt opening release (-MO1; -MO2) or with the shunt closing release (-MC) to check functionality and continuity.

The control/monitoring Shunt Test Unit allows the continuity of releases with a rated operating voltage between 24 V and 250 V (AC and DC) to be checked, as well as the functionality of the electronic circuit of the release.

Checking continuity is carried out cyclically with an interval of 20 seconds between one test and the next.

Charateristics

Suit for	items
VD4 EL	Shunt opening release(-MO1) 110V DC/AC
VD4 EL	Shunt opening release(-MO1) 220V DC/AC
VD4 EL	Additional shunt opening release(-MO2) 110V DC/AC
VD4 EL	Additional shunt opening release(-MO2) 220V DC/AC
VD4 EL	Shunt closing release(-MC) 110V DC/AC
VD4 EL	Shunt closing release(-MC) 220V DC/AC
VD4 EL	Motor operator (-MS) 110V DC/AC 220W
VD4 EL	Motor operator (-MS) 220V DC/AC 220W
VD4 EL	Undervoltage release (-MU) 110V DC/AC
VD4 EL	Undervoltage release (-MU) 220V DC/AC
VD4 EL	Electronic time delay device(-KT) 110V DC/AC
VD4 EL	Electronic time delay device(-KT) 220V DC/AC
VD4 EL	Locking magnet on the operating mechanism (-RL1) 110V DC/AC
VD4 EL	Locking magnet on the operating mechanism (-RL1) 220V DC/AC
VD4 EL	Contact for signalling closing spring charged/discharged (-BS2)
VD4 EL	Auxiliary contacts (-BB1) 3NO+2NC
VD4 EL	Auxiliary contacts (-BB2 -BB3) 2NO+3NC
VD4 EL	Shunt Test Unit (STU) 25-250V DC/AC
