MIA Ventilation HVAC UV Light Ductless Hrv Ventilation/recuperator High-voltage Electrostatic Dust/hepa13/carbon Filter 600 Cmh

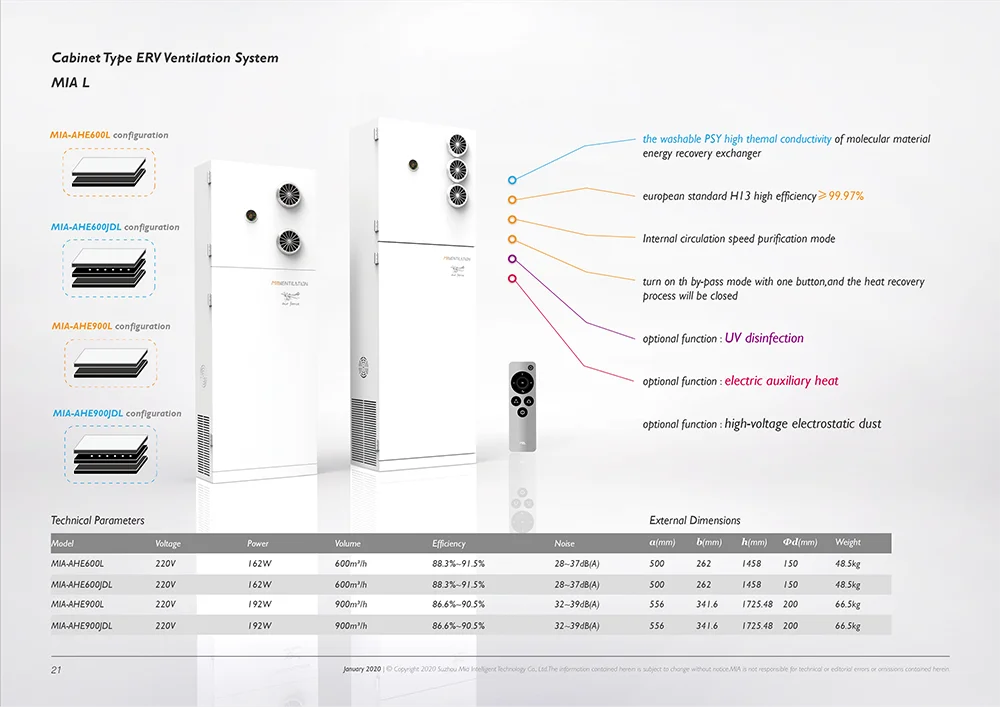

 Specifications of ventilators

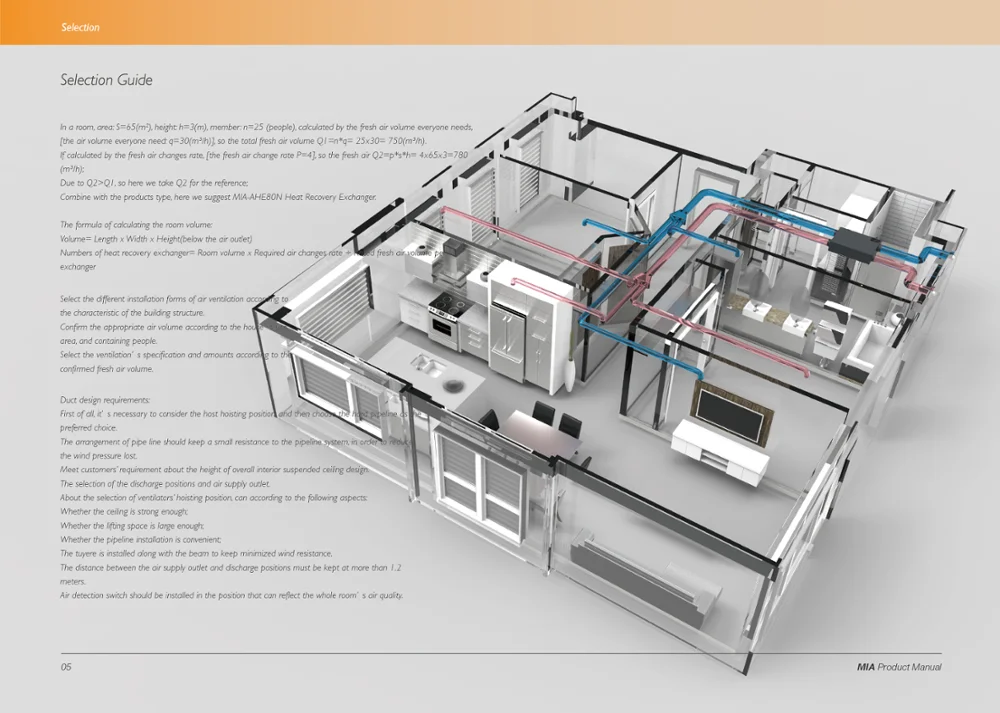

How to choose the suitable ventilators

We calculate the require airflow per hour according to the number of people, the size of the room and the amount of fresh air per hour and than choose the suitable fresh air ventilator.

Fresh AirFlow Calculation Formula

1. Fresh Airflow Standard: 30m3/h/person(Different environment has different standard)=Number of people × 30m3/h

2.According to the size of room and fresh air change rate per hour=Room size × Floor height × Fresh air change rate (times/m3/h)

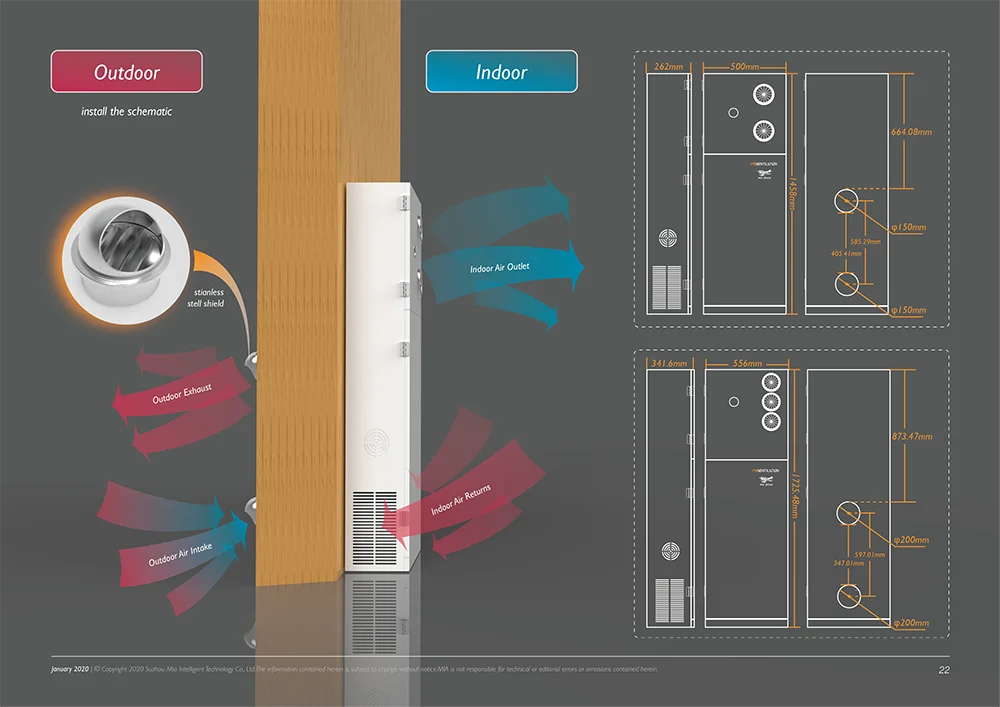

Installation conditions of fresh air equipment

1.Keep away from the rest area

2.Prevent exposure and rain

3.Duct layout is reasonable

Features of ventilators

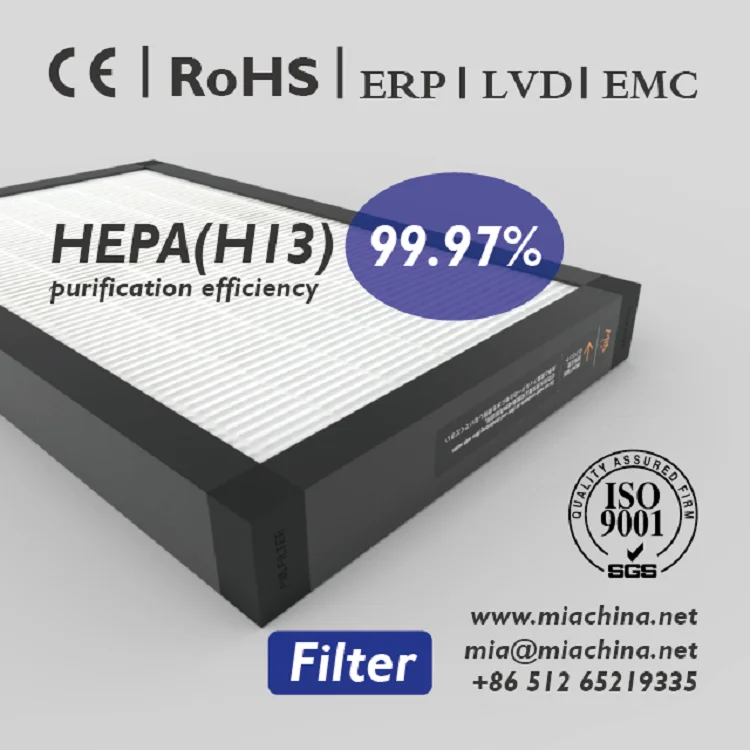

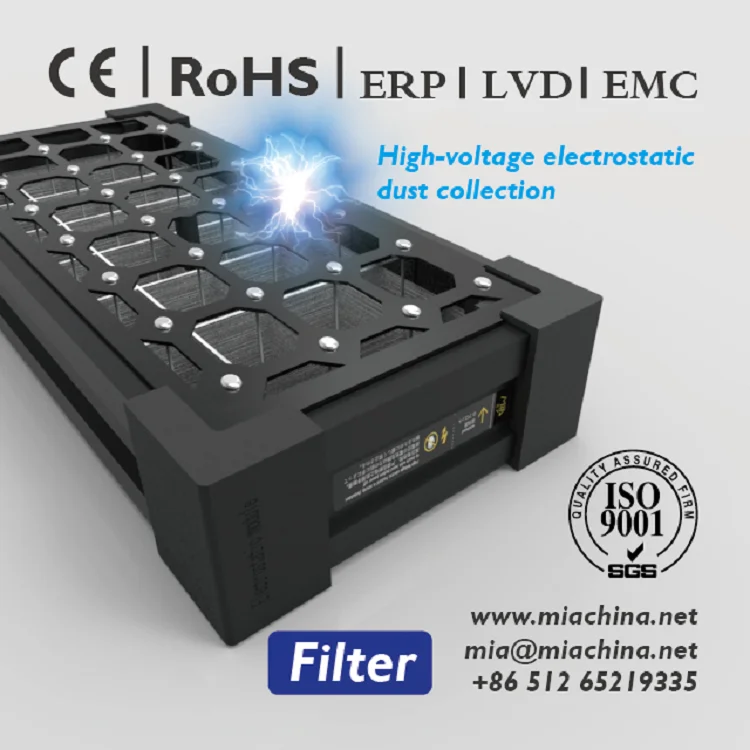

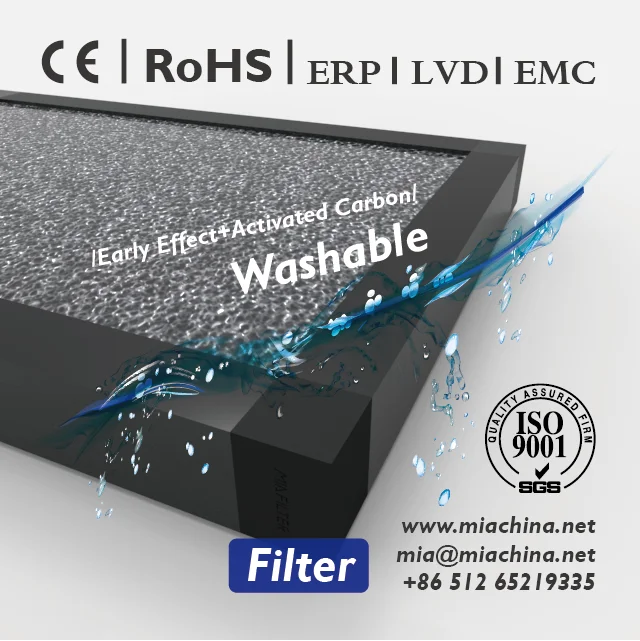

Heat Exchange Ventilation System brings in fresh air through early effect+activated carbon, HEPA(H13) and lon dust collection sterilization air filters. The even-distributed activated carbon powder can miximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%. The lon dust collection sterilization filter's removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable and can be cleaned with brush.

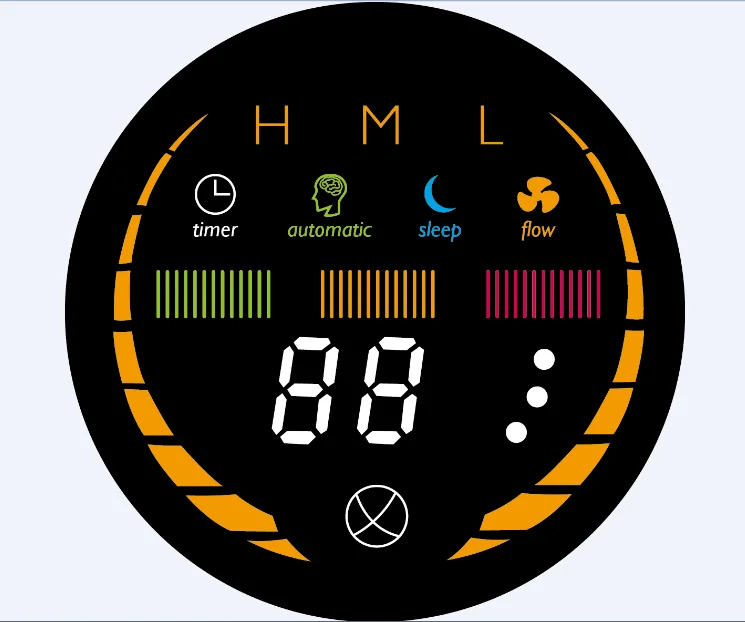

MIA CONTROLLER

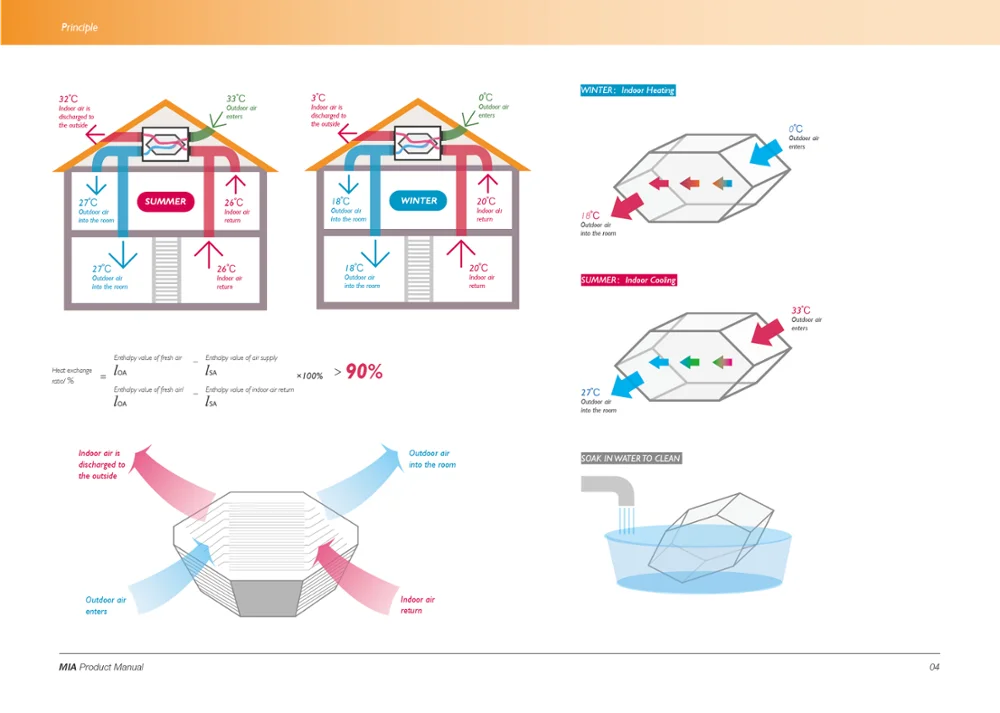

Working principle of energy recovery ventilators

Energy recovery ventilator can exhaust the polluted air indoor out of room, meanwhile supplying the fresh air from outside into the room, by using the advanced ERV technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this ways, It can not only eliminate the problem of indoor pollution, but also can save energy.

Shipped in 15-20 days after payment

Standard exporting carton. Wooden or paper box packing if necessary

Customized packing is available
